blaupunkt ba43f4142elb tpd.ms6683.pb763 emmc BLAUPUNKT BA43F4142ELB TPD.MS6683.PB763 EMMC

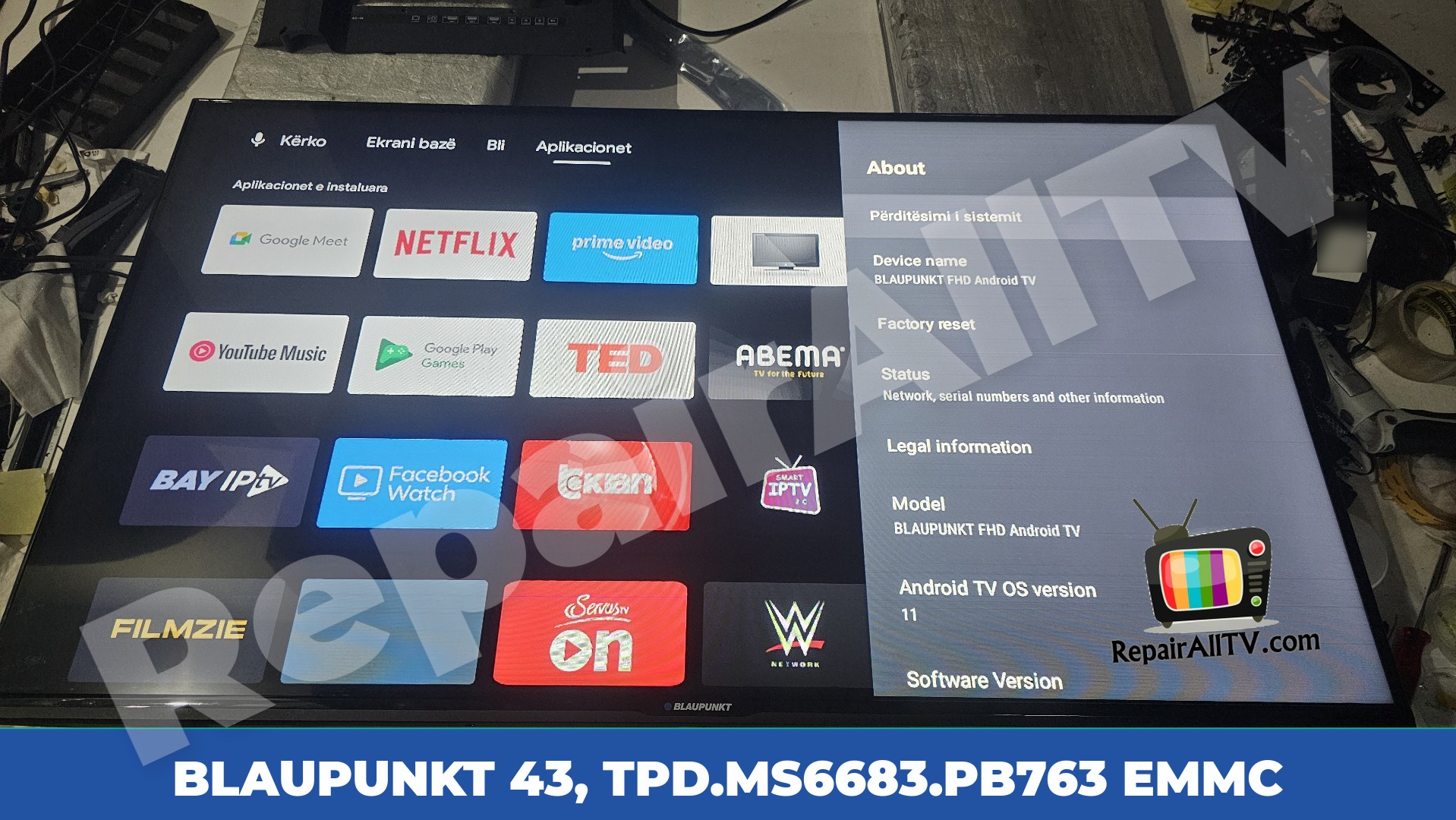

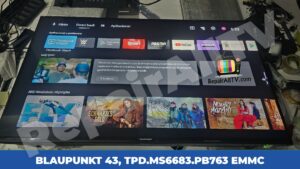

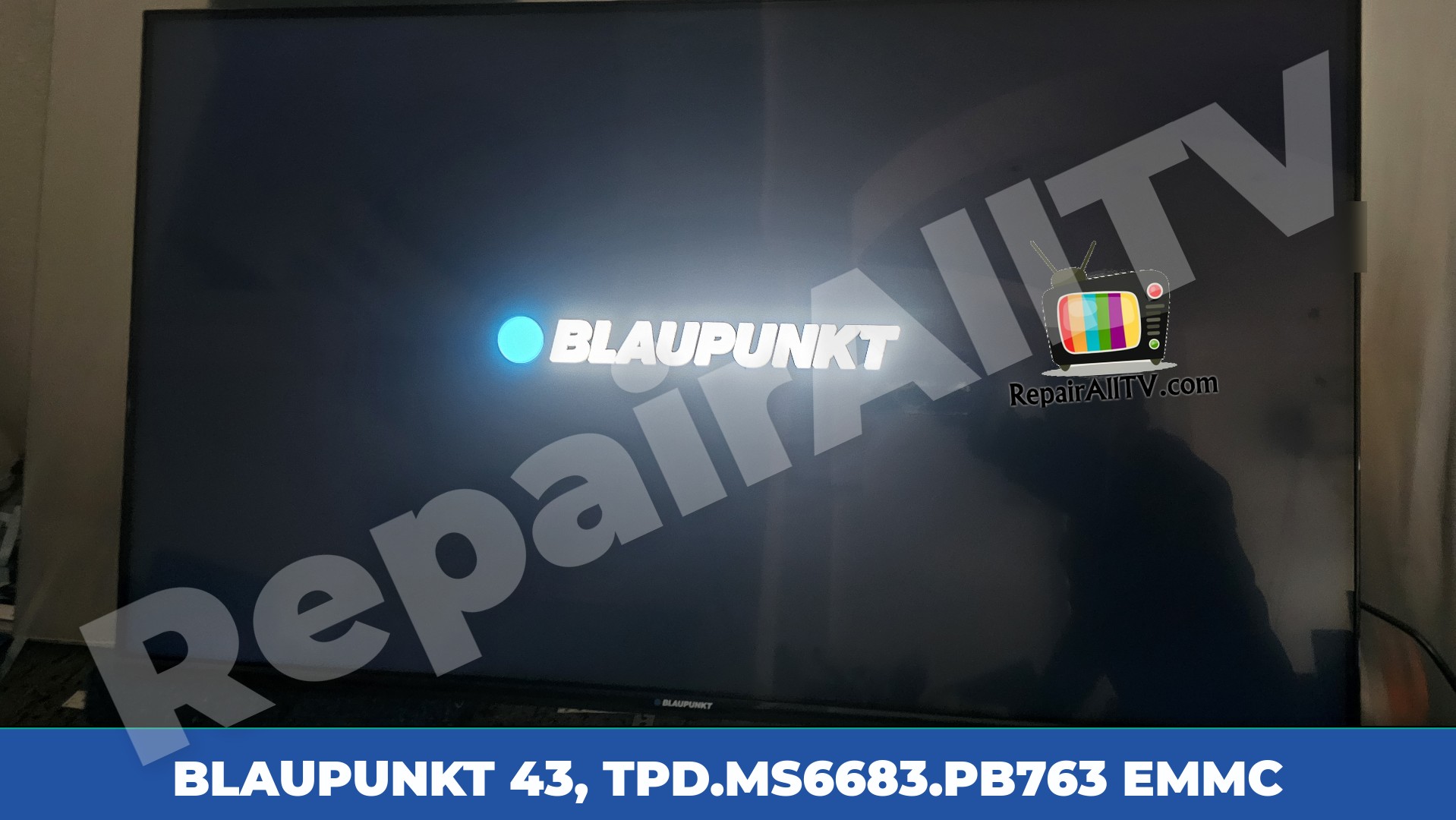

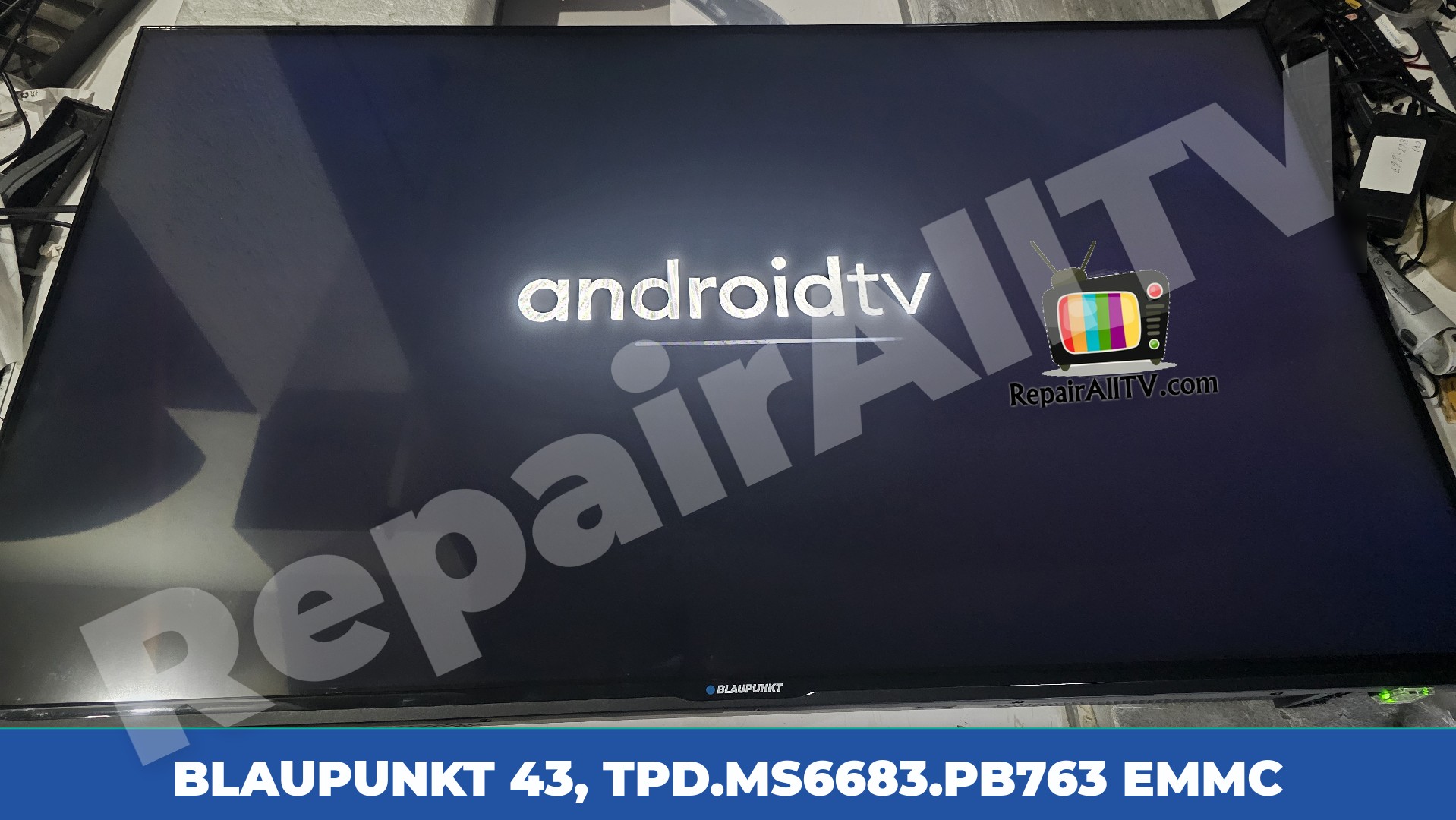

TV BLAUPUNKT MODEL BA43F4142ELB
BLAUPUNKT TV
TPD.MS6683.PB763
emmc firmware
Programmer ISP Cable EMMC pin
ISP PIN 1 CMD
ISP PIN 3 RST-n(Reset) (mandatory)
ISP PIN 5 CLK (Clock)
ISP PIN 6 DAT0
ISP PIN 8, 10 VSS (GND)
Vcc of Chip Must be ON. Reset is needed only when circuit reset is not working.
to see EMMC pinout photo as well as to download EMMC BIN Firmware. you must Subscription
PROGRAMMER TNM5000 ISP EMMC TPD.MS6683.PB763
PROGRAMMER RT809H AND XGeeu T56 ISP EMMC TPD.MS6683.PB763

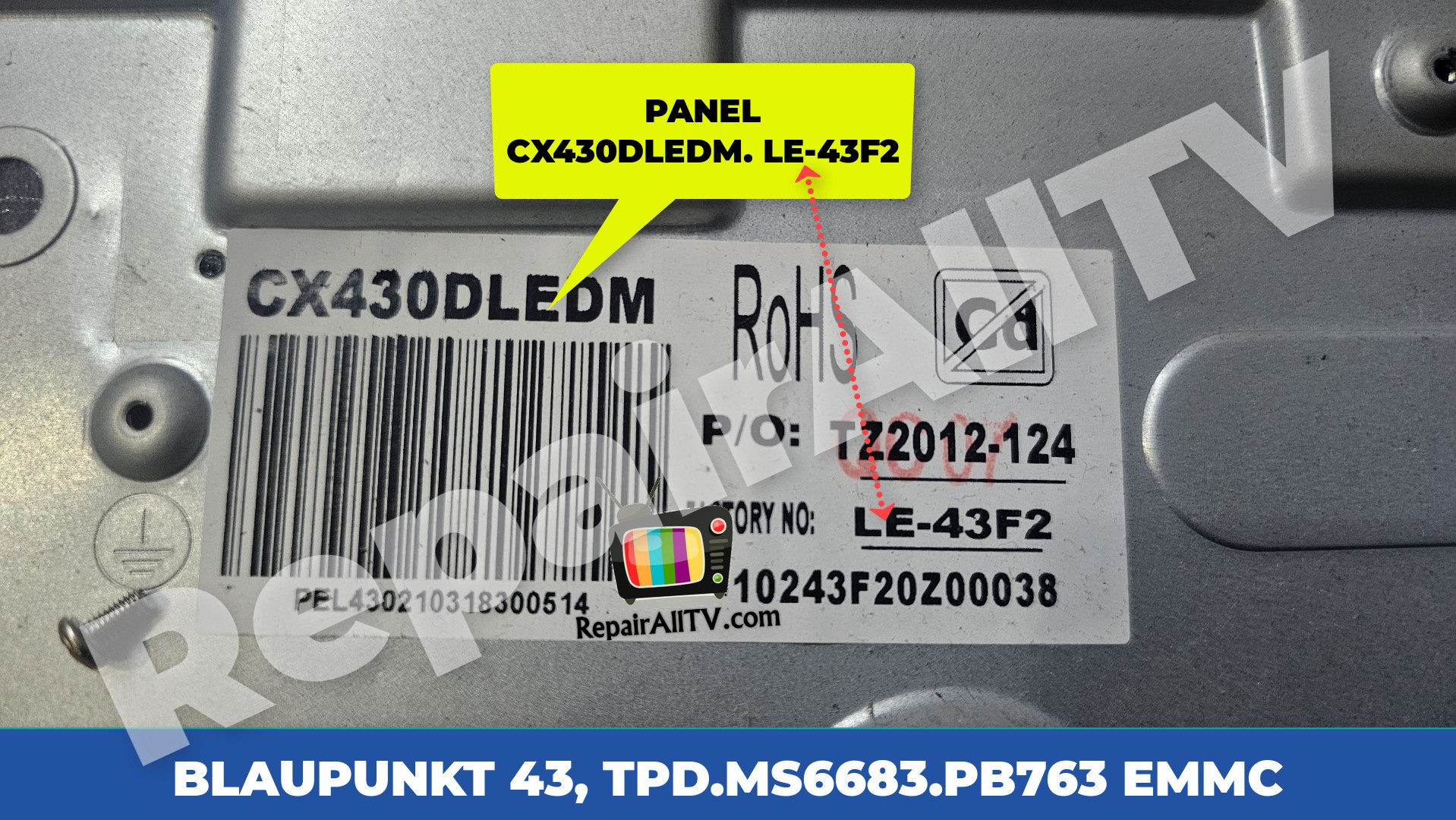

PANEL CX430DLEDM. LE-43F2
My channel YouTube video RepairAllTV
DUMP EMMC NAND EEPROM
Important notes: The files we make available on this website are backup copies of device firmware that were fully operational at the time of copying.
We always try to refer to the technical data of the device, however we inform you that there may be some incompatibility with your device, even if it is the same model.
Firmware is generally fully compatible, but users should be aware that there is a possibility of incompatibility.
You need an programmer to write this dump to the chip.
Please remember to back up your firmware to restore in case of any errors or incompatibilities.
BLAUPUNKT BA43F4142ELB TPD.MS6683.PB763 EMMC
BLAUPUNKT MODEL BA43F4142ELB

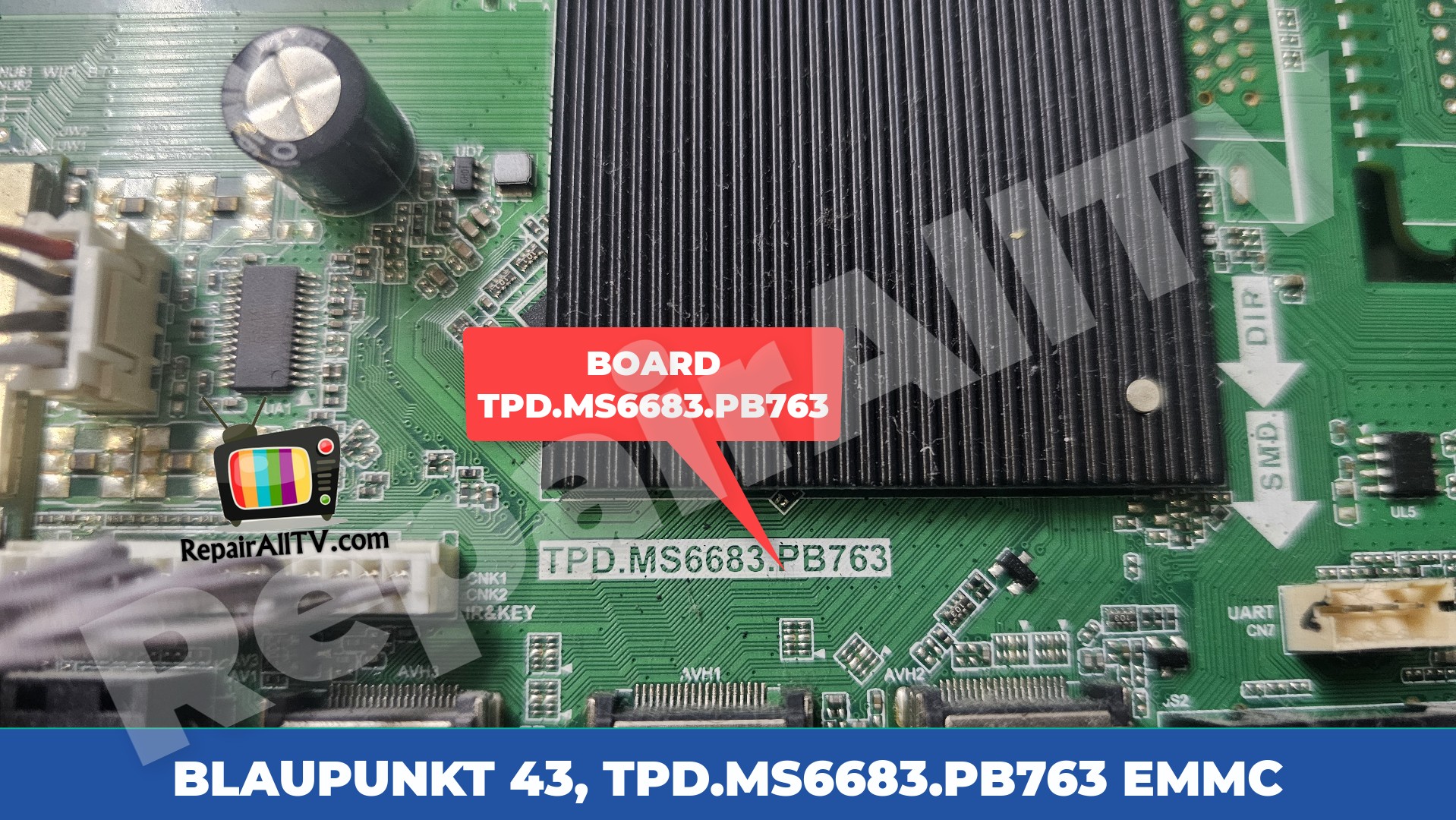

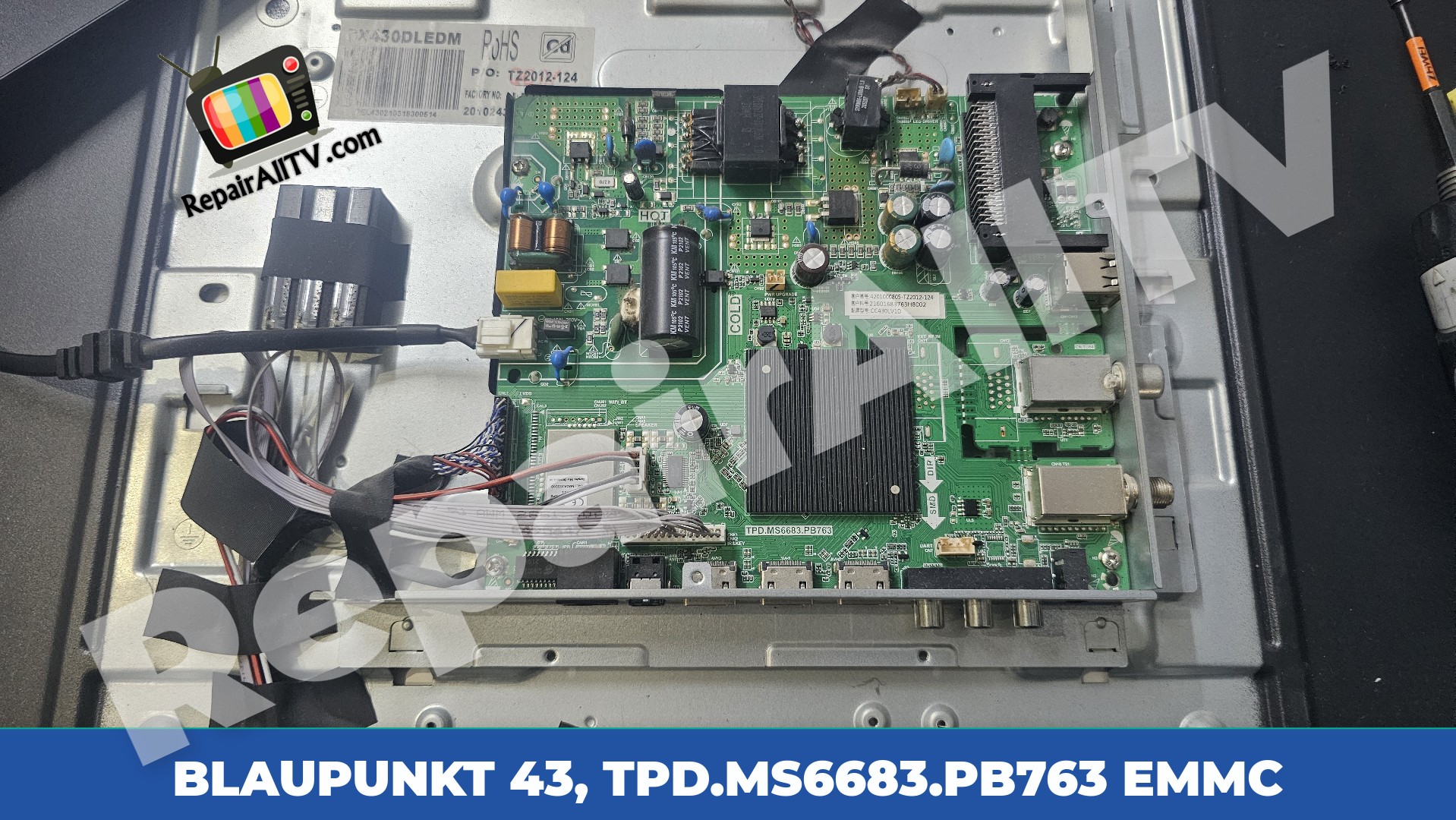

BOARD TPD.MS6683.PB763

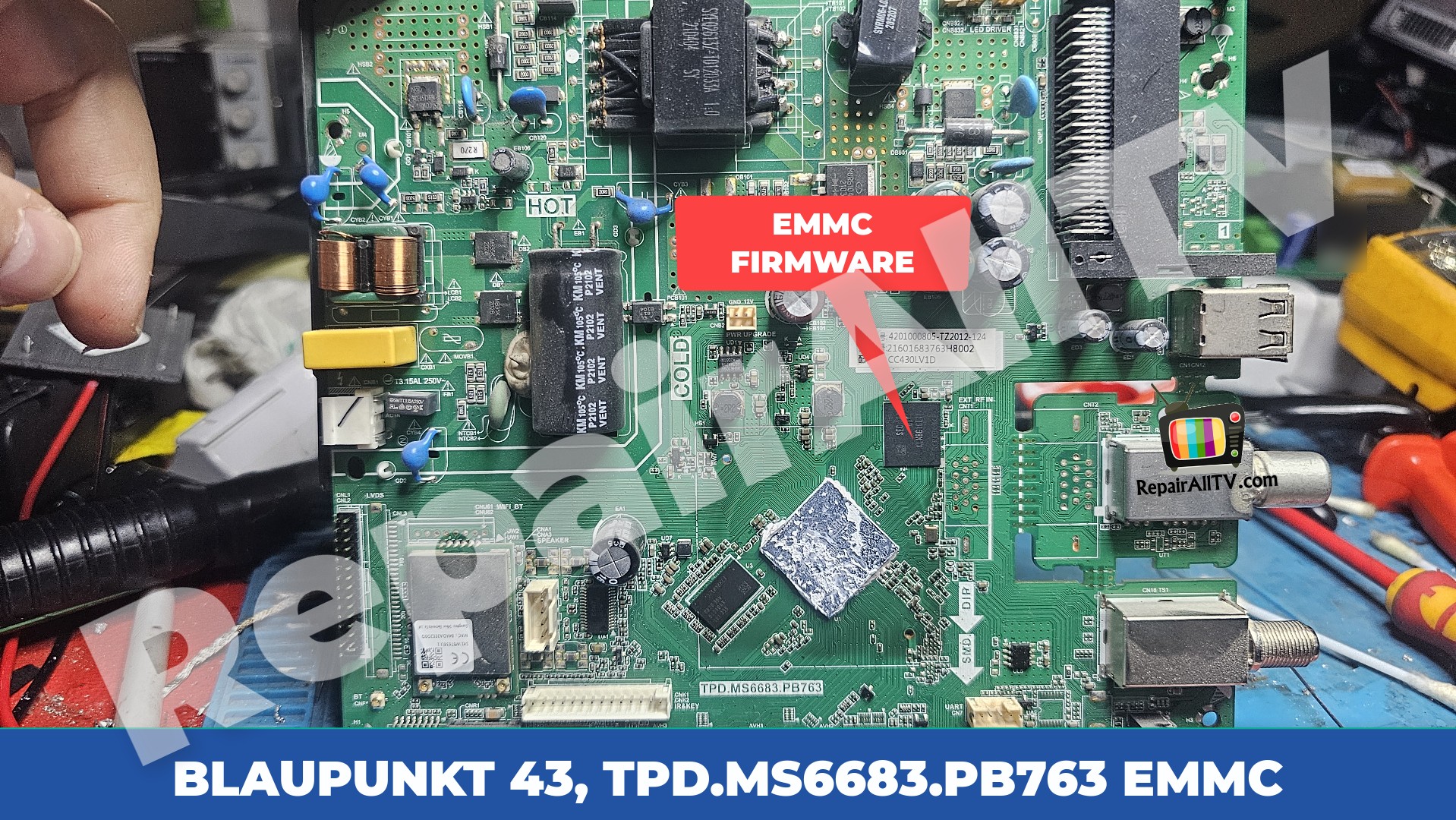

EMMC KLM8G1GETF-B041 Size: 7.28 GB
PANEL LE-43F2. CX430DLEDM
READ EMMC PROGRAMMER TNM5000/RT809H AND XGeeu T56
download only eeprom. dump. nand. flash. EMMC. Here Subscription
Subscription more here (Select subscription plan)
