fuego 32el610andt tp.sk506s.pb802 emmc firmware FUEGO 32EL610ANDT TP.SK506S.PB802 EMMC firmware
FUEGO MODEL 32EL610ANDT
tv board t-con board

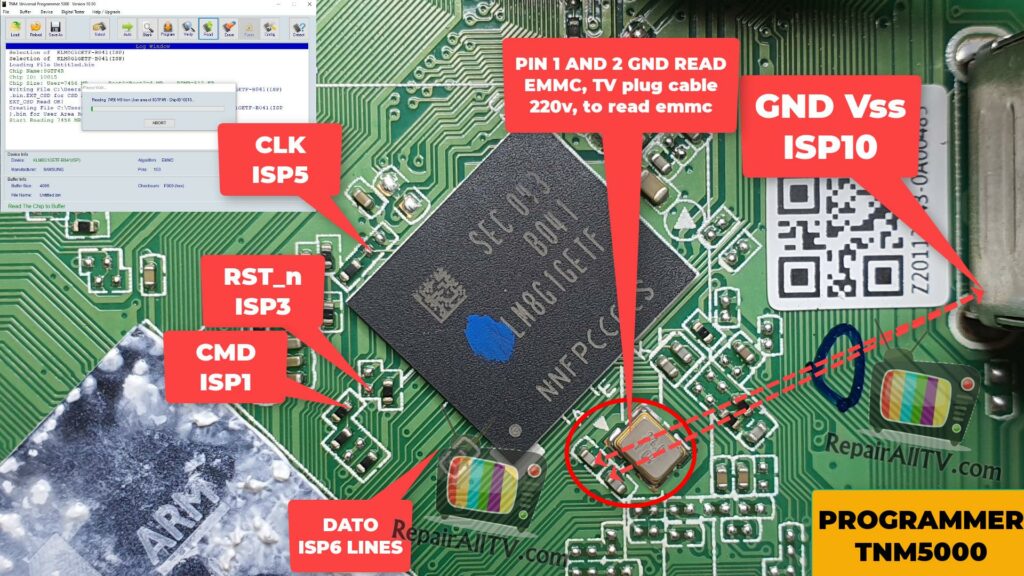

read emmc tnm5000
READ EMMC pinout
Programmer ISP Cable EMMC pin
ISP PIN 1 CMD
ISP PIN 3 RST-n(Reset) (mandatory)
ISP PIN 5 CLK (Clock)
ISP PIN 6 DAT0
ISP PIN 8,10 VSS (GND)
Vcc of Chip Must be ON. Reset is needed only when circuit reset is not working.

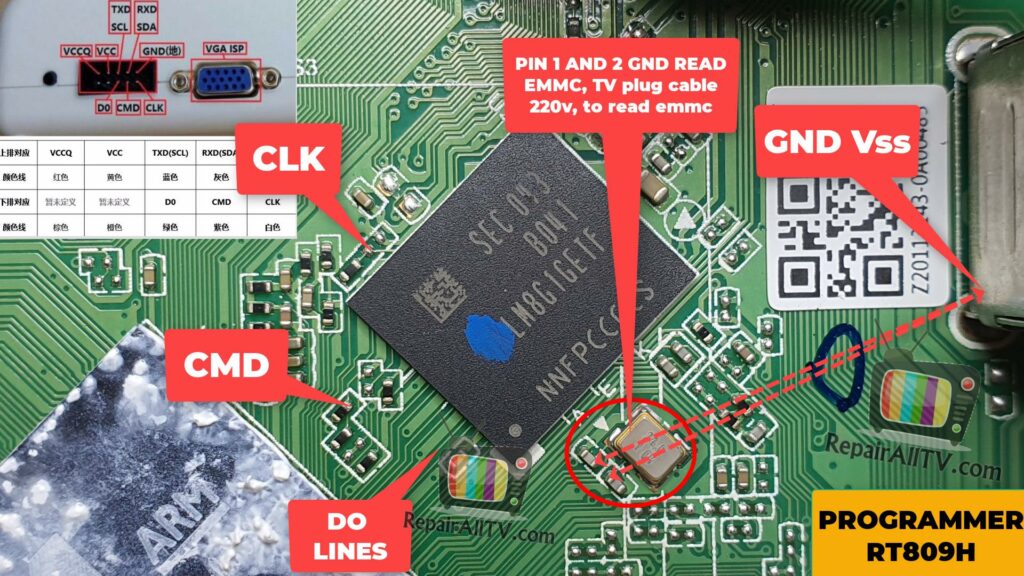

read emmc RT809H
CX320DLEDM
My channel YouTube RepairAllTV
DUMP EMMC NAND EEPROM
Important notes: The files we make available on this website are backup copies of device firmware that were fully operational at the time of copying.
We always try to refer to the technical data of the device, however we inform you that there may be some incompatibility with your device, even if it is the same model.
Firmware is generally fully compatible, but users should be aware that there is a possibility of incompatibility.
You need an programmer to write this dump to the chip.
Please remember to back up your firmware to restore in case of any errors or incompatibilities.
FUEGO TP.SK506S.PB802 EMMC firmware
FUEGO MODEL 32EL610ANDT

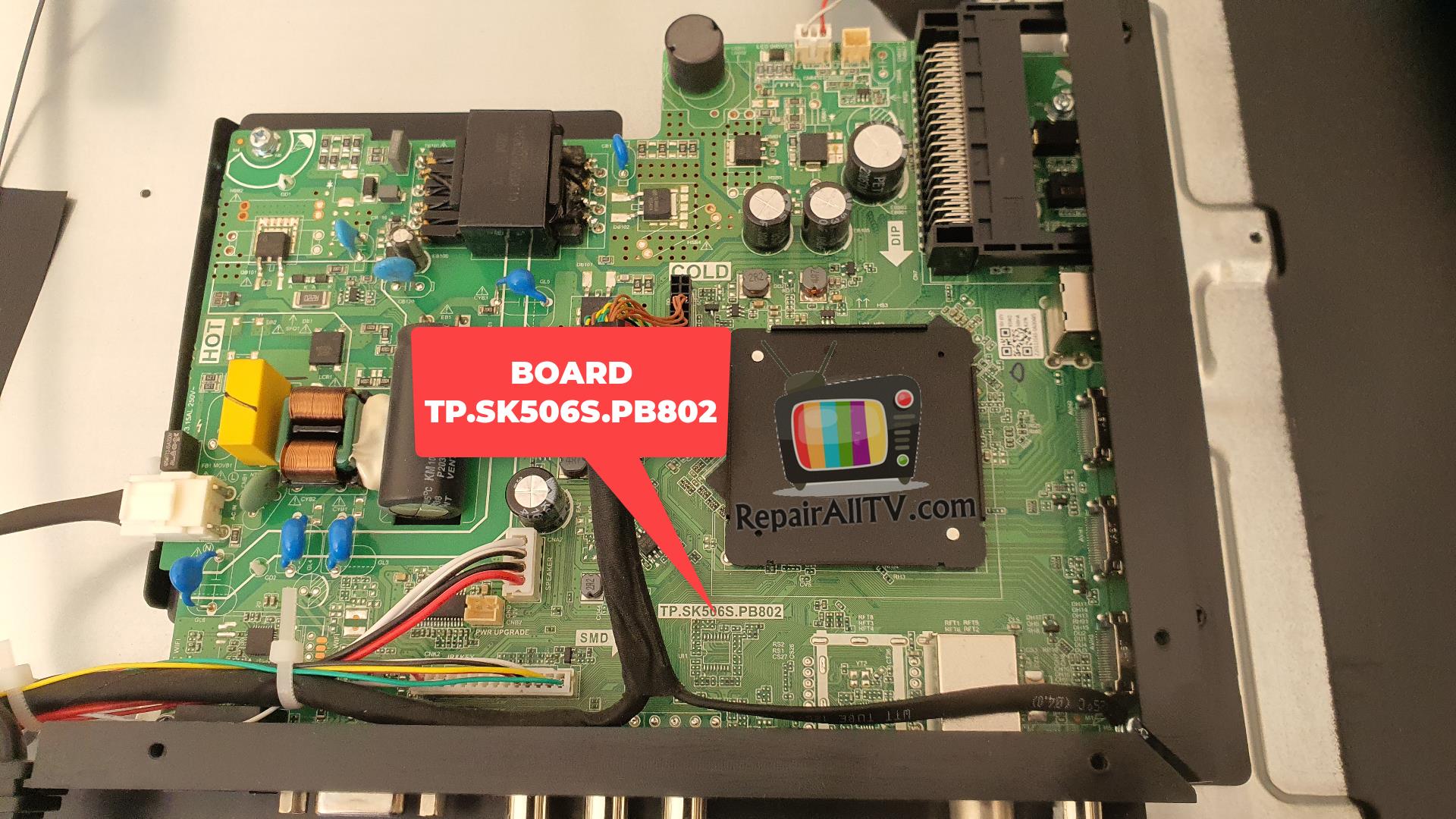

MAINBOARD TP.SK506S.PB802
PANEL MODEL CX320DLEDM
EMMC KLM8G1GETFBO41 Size: 7456MB
READ EMMC PROGRAMMER TNM5000 RT809H
