onvo el.mt9602-g138 tpd.mt9602.pc761 t google tv EMMC ONVO EL.MT9602-G138 TPD.MT9602.PC761 (T) EMMC

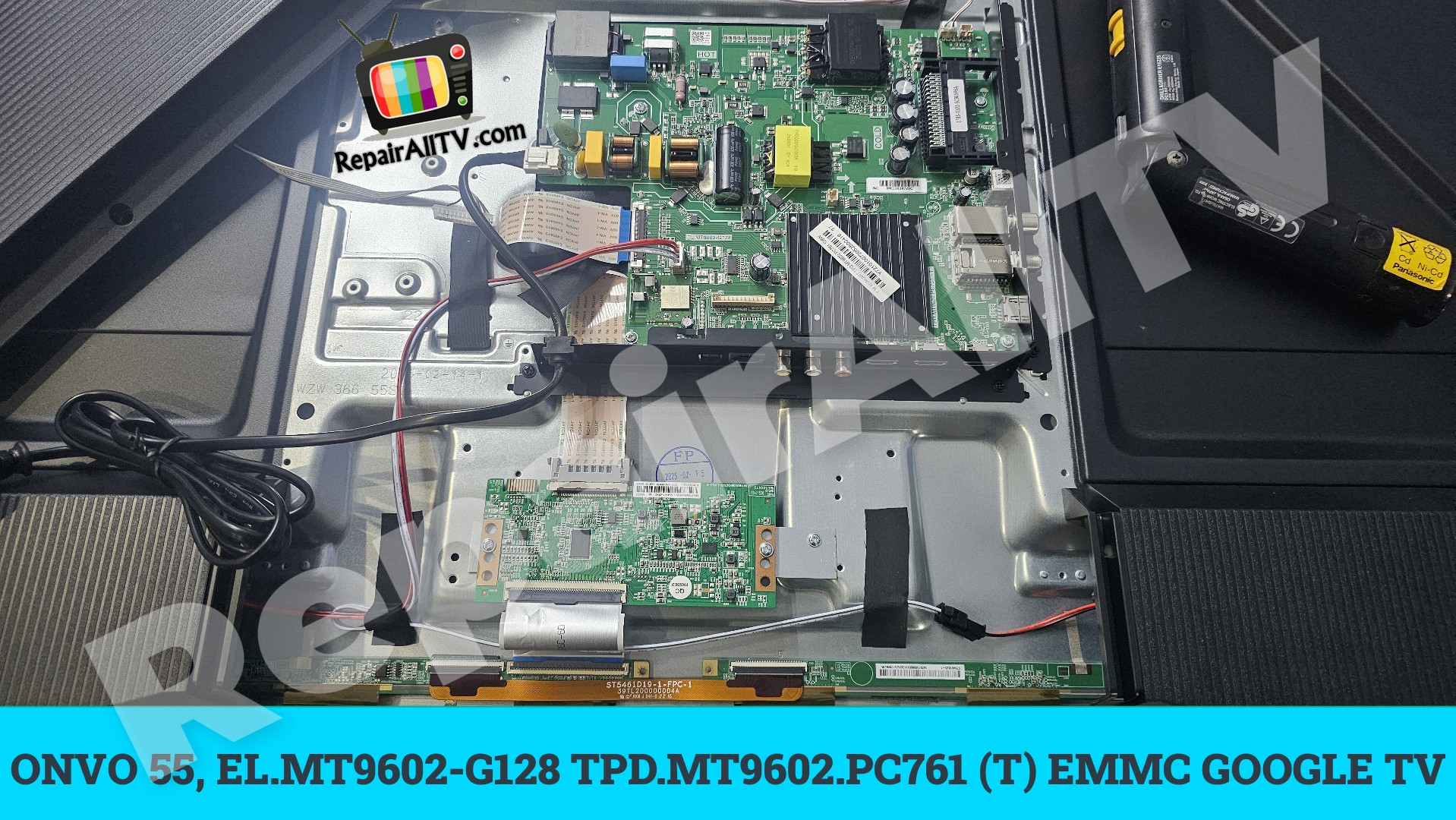

TV ONVO MODEL 55OVF9001UQ
EL.MT9602-G138 TPD.MT9602.PC761 (T)

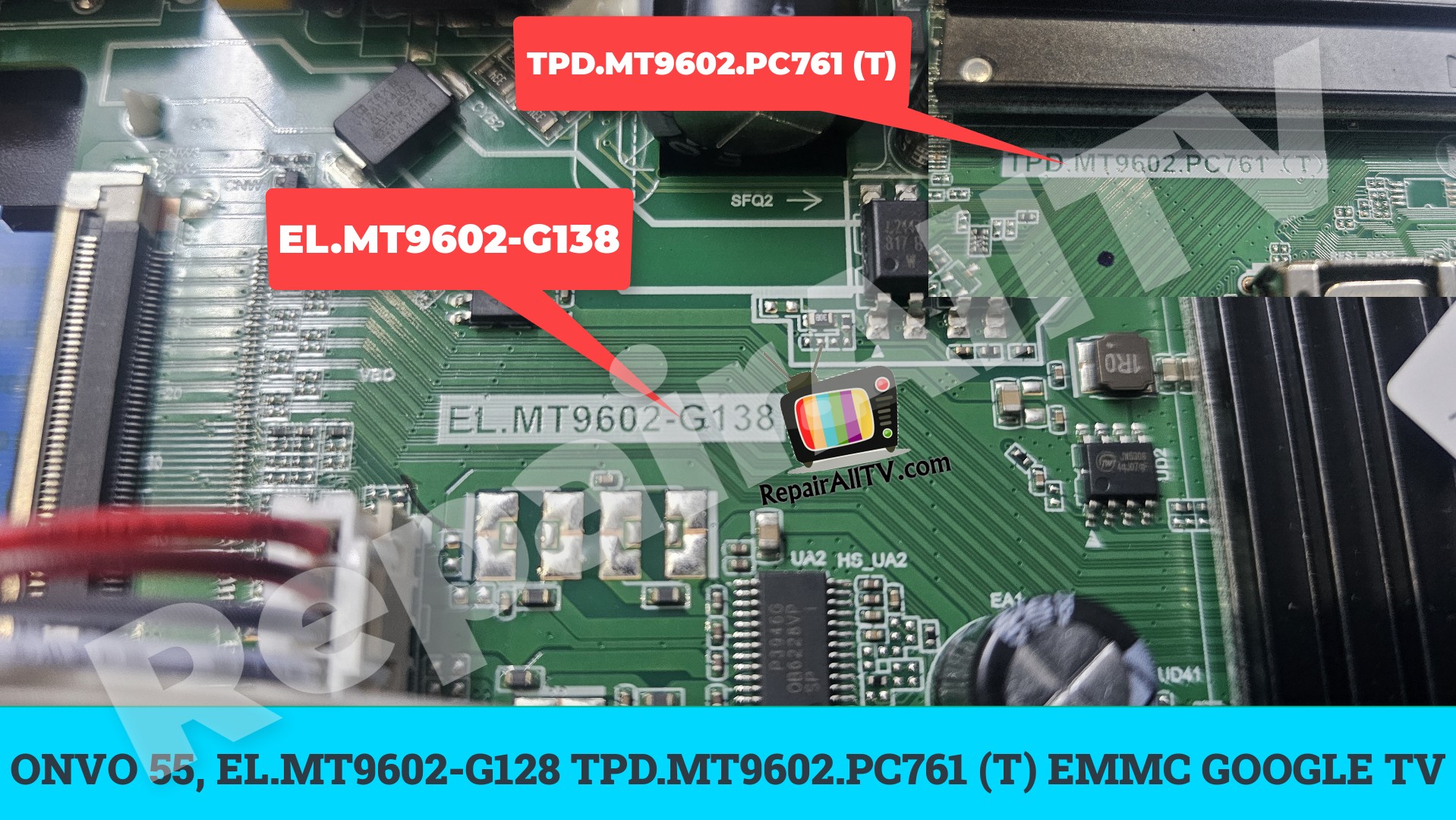

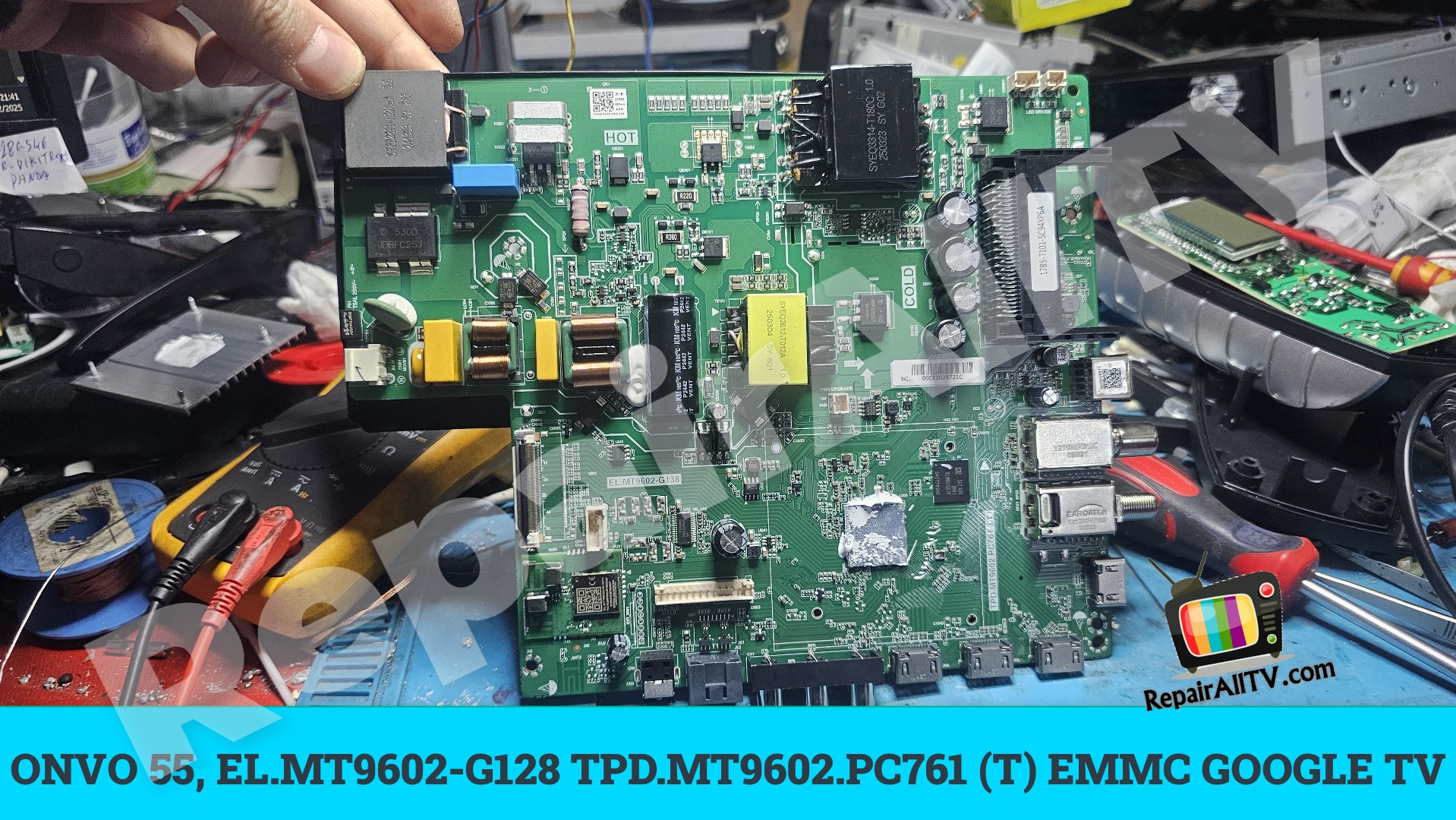

board EL.MT9602-G138 TPD.MT9602.PC761 (T)
Programmer ISP Cable EMMC pin
ISP PIN 1 CMD
ISP PIN 3 RST-n(Reset) (mandatory)
ISP PIN 5 CLK (Clock)
ISP PIN 6 DAT0
ISP PIN 8, 10 VSS (GND)
Vcc of Chip Must be ON. Reset is needed only when circuit reset is not working.
to see EMMC pinout photo as well as to download EMMC BIN Firmware. you must Subscription
PROGRAMMER TNM5000 ISP EMMC EL.MT9602-G138 TPD.MT9602.PC761 (T)
PROGRAMMER RT809H AND XGeeu T56 ISP EMMC EL.MT9602-G138 TPD.MT9602.PC761 (T)

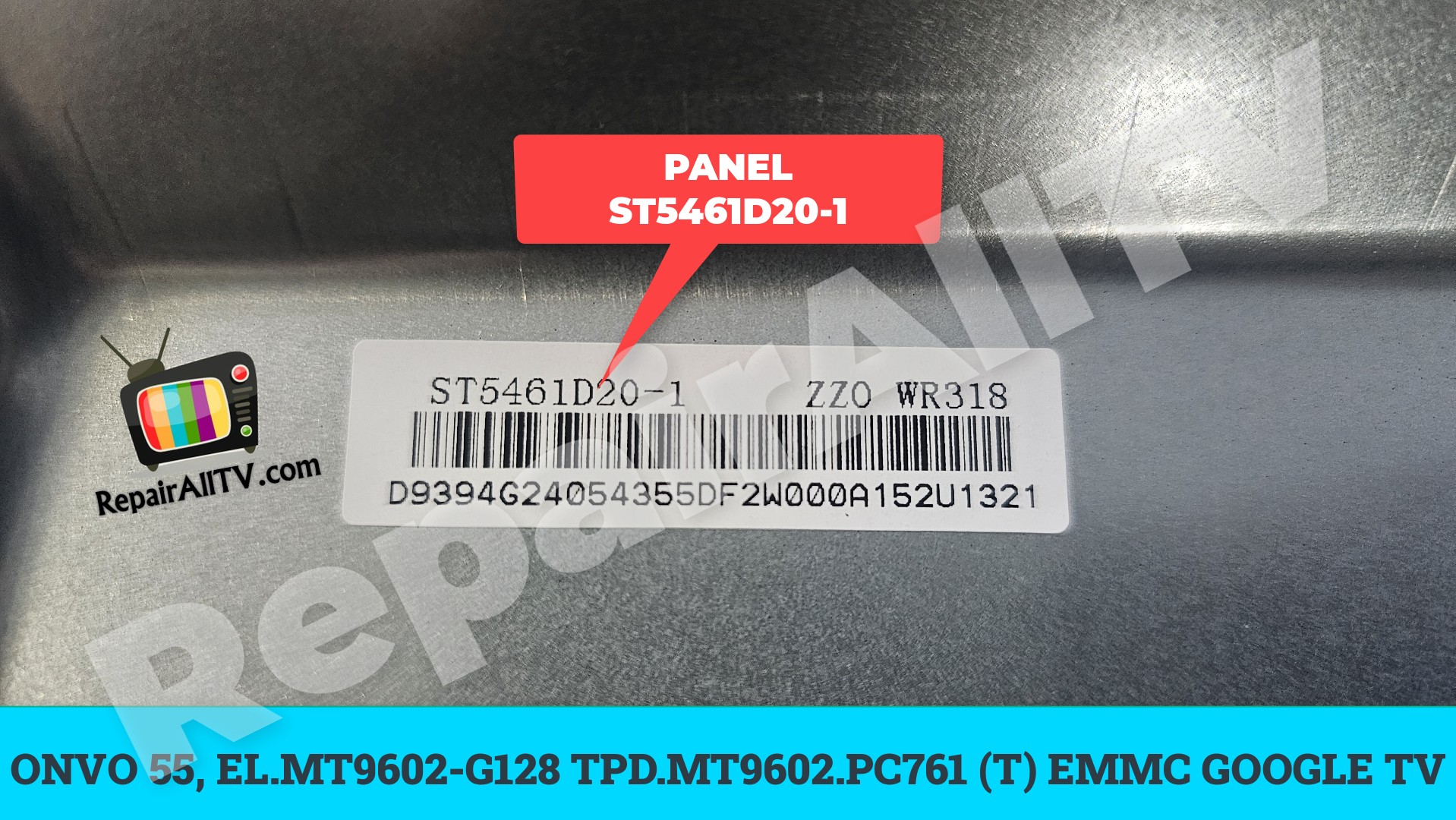

PANEL ST5461D20-1

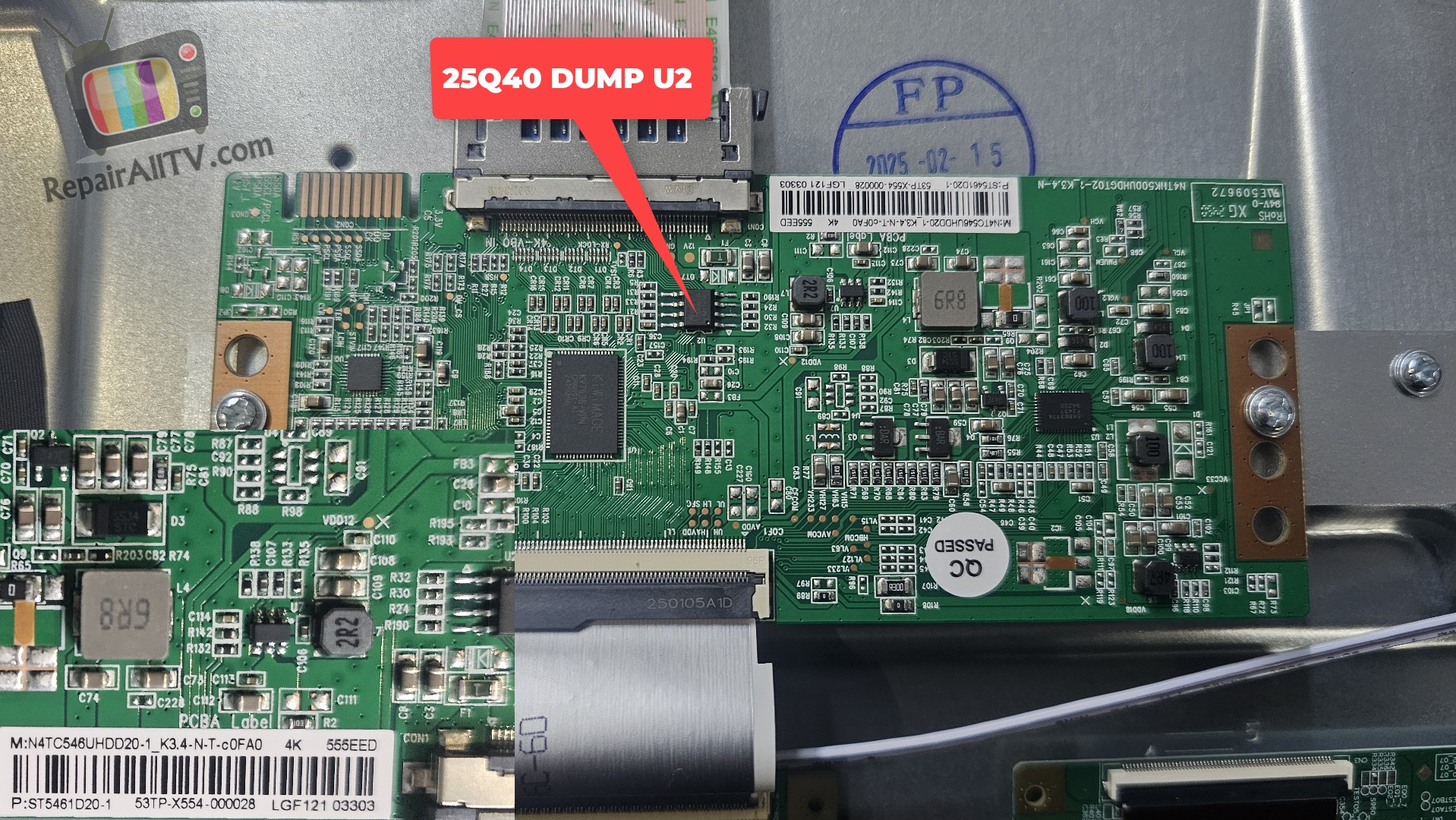

25Q40 DUMP U2

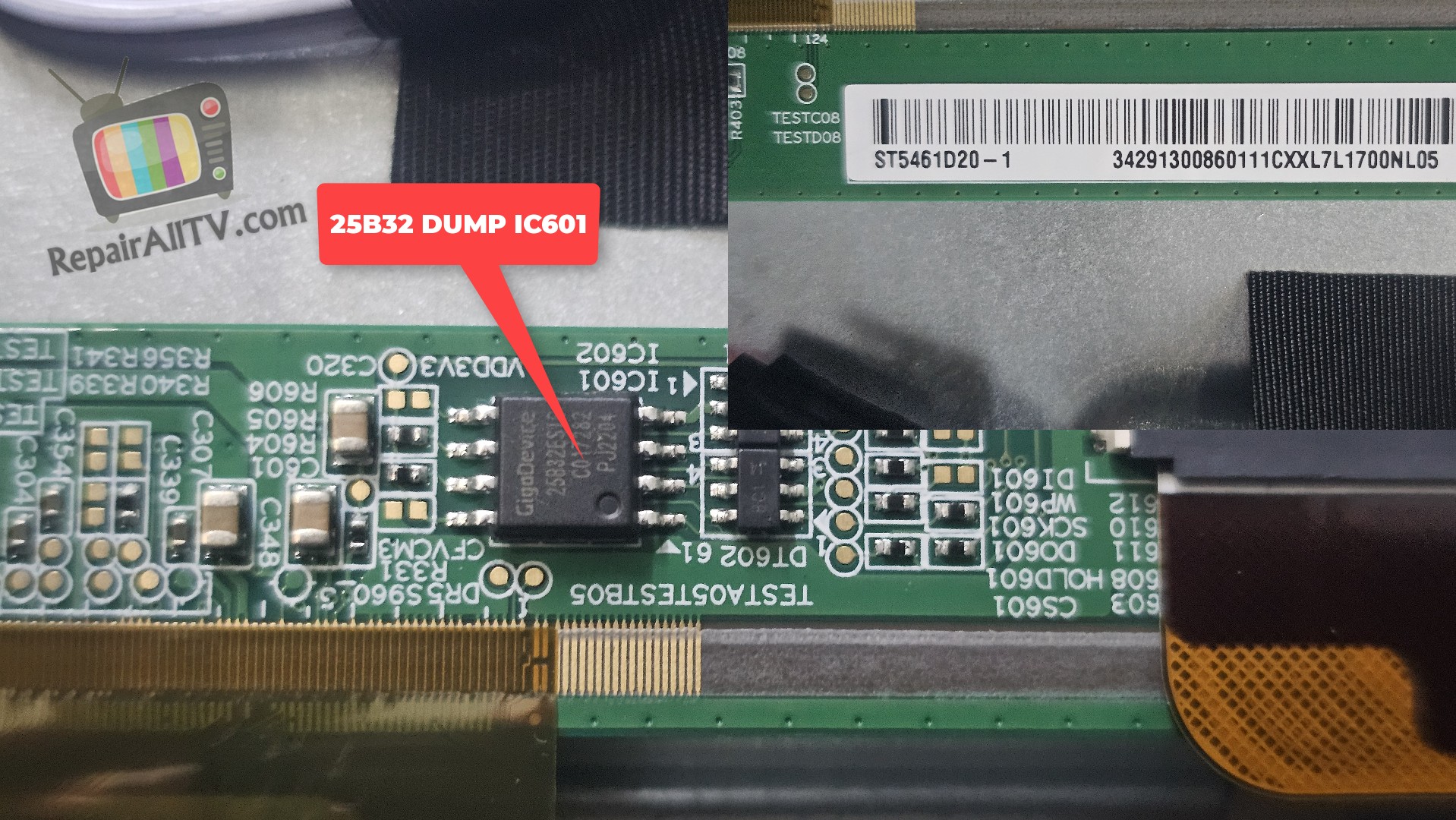

25B32 DUMP BOARD SCREEN ST5461D20-1

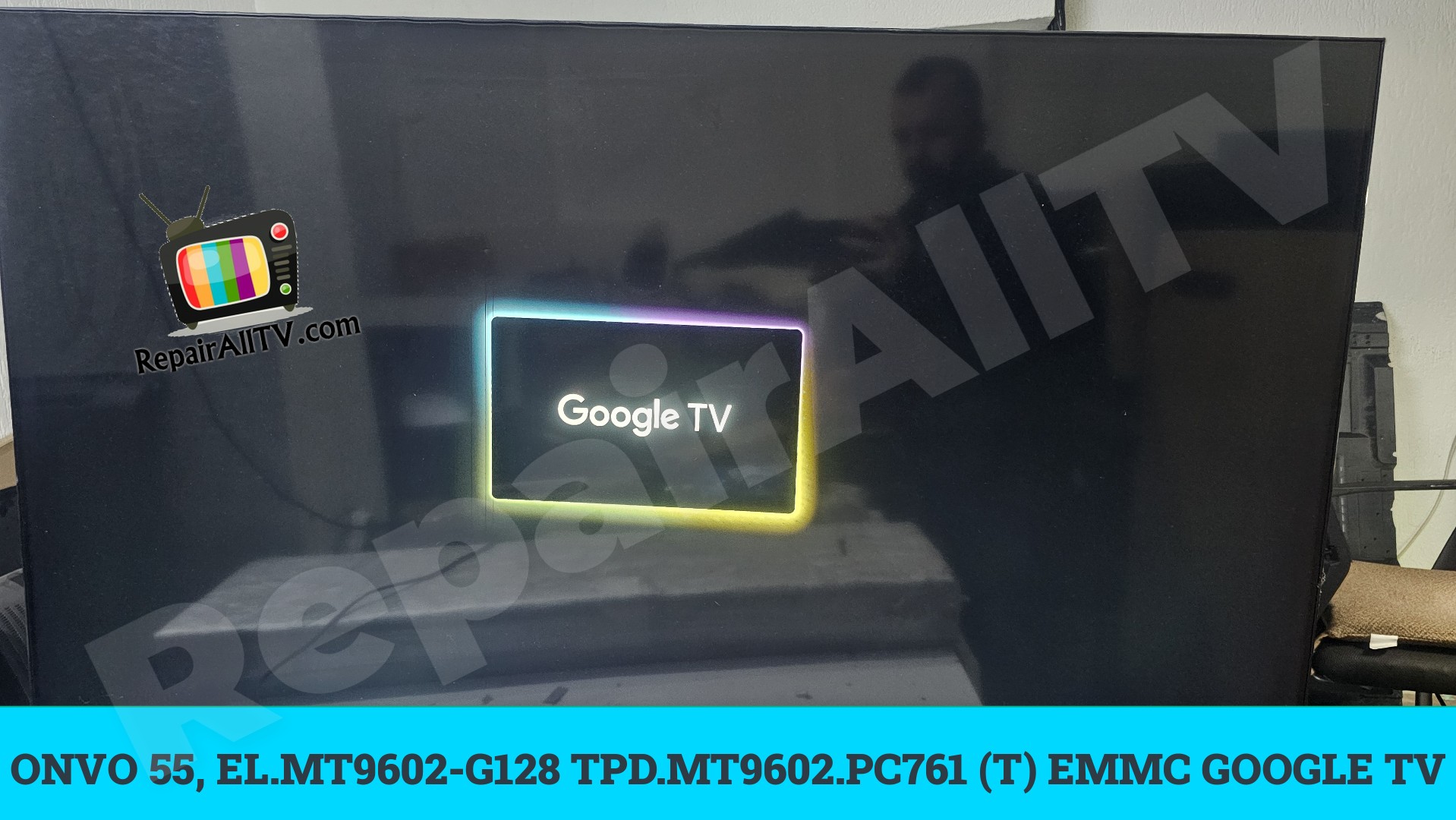

GOOGLE TV
My channel YouTube video RepairAllTV
DUMP EMMC NAND EEPROM
Important notes: The files we make available on this website are backup copies of device firmware that were fully operational at the time of copying.
We always try to refer to the technical data of the device, however we inform you that there may be some incompatibility with your device, even if it is the same model.
Firmware is generally fully compatible, but users should be aware that there is a possibility of incompatibility.
You need an programmer to write this dump to the chip.
Please remember to back up your firmware to restore in case of any errors or incompatibilities.
ONVO EL.MT9602-G138 TPD.MT9602.PC761 (T) EMMC
ONVO MODEL 55OVF9001UQ
board EL.MT9602-G138 TPD.MT9602.PC761 (T)
EMMC KLM8G1GETF-B041 Size: 7.28 GB
panel ST5461D20-1
read EMMC PROGRAMMER TNM5000, RT809H AND XGeeu T56
download only eeprom. dump. nand. flash. EMMC. Here Subscription
Subscription more here (Select subscription plan)
