PANDA 39PA3920S TP.SK506S.PB802 EMMC firmware
June 10, 2022
panda 39pa3920s tp.sk506s.pb802 emmc PANDA 39PA3920S TP.SK506S.PB802 EMMC DOWNLOAD TP.SK506S.PB802 emmc firmware
tv panda

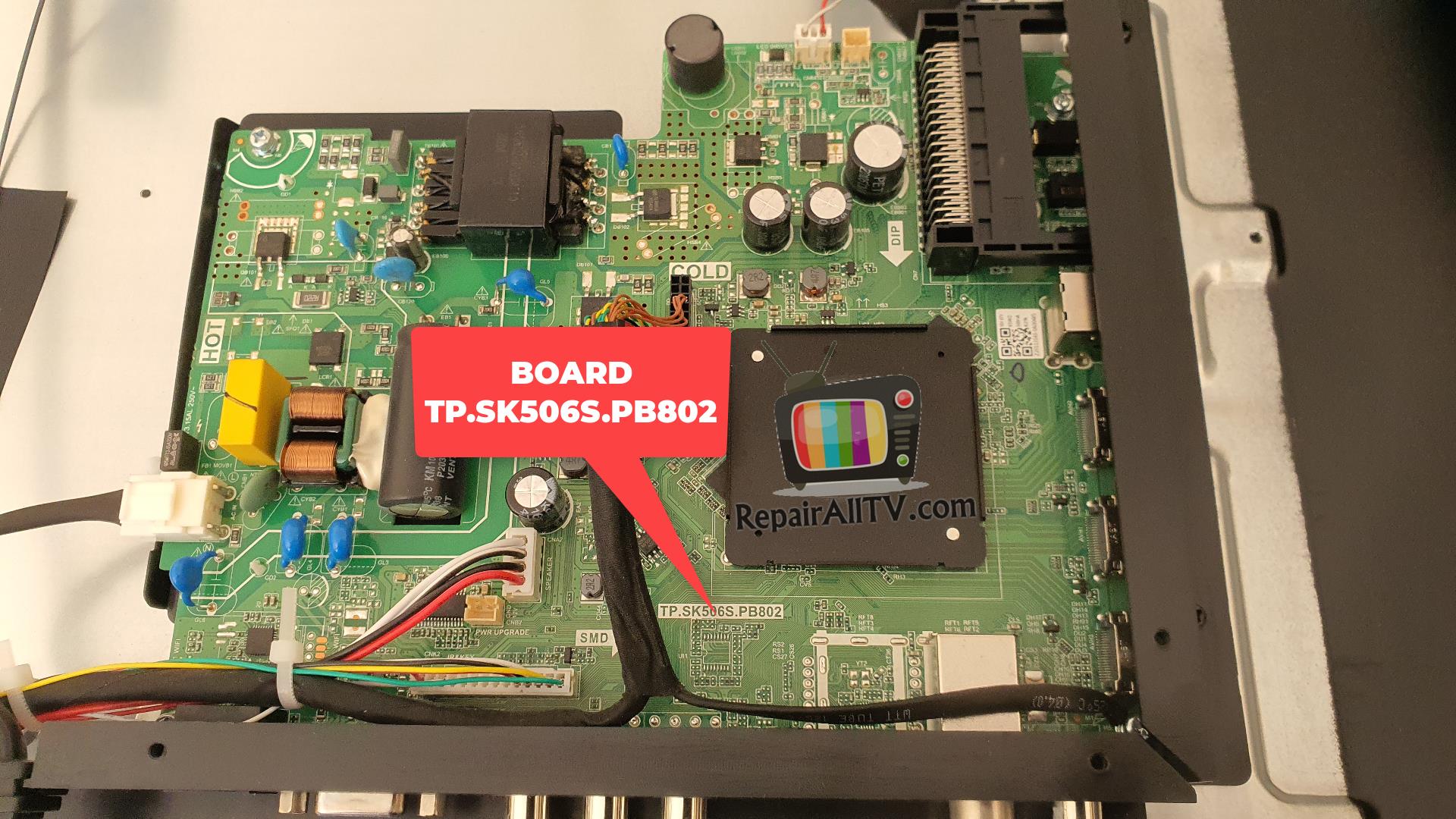

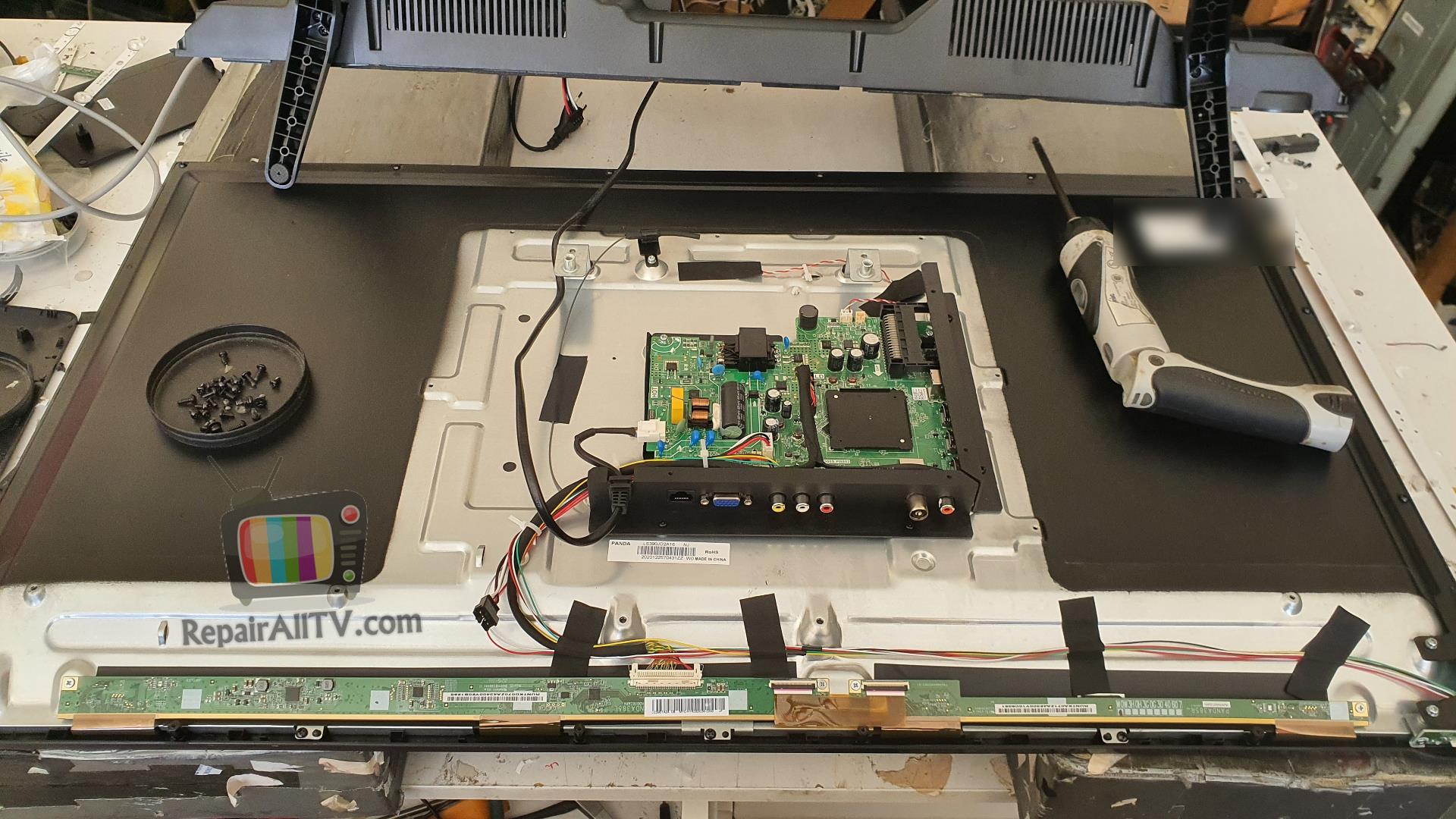

BOARD TP.SK506S.PB802
to see EMMC pinout photo as well as to download EMMC BIN Firmware. you must subscribe
to view all photos you need to👇👇 subscribe. (download all tv)

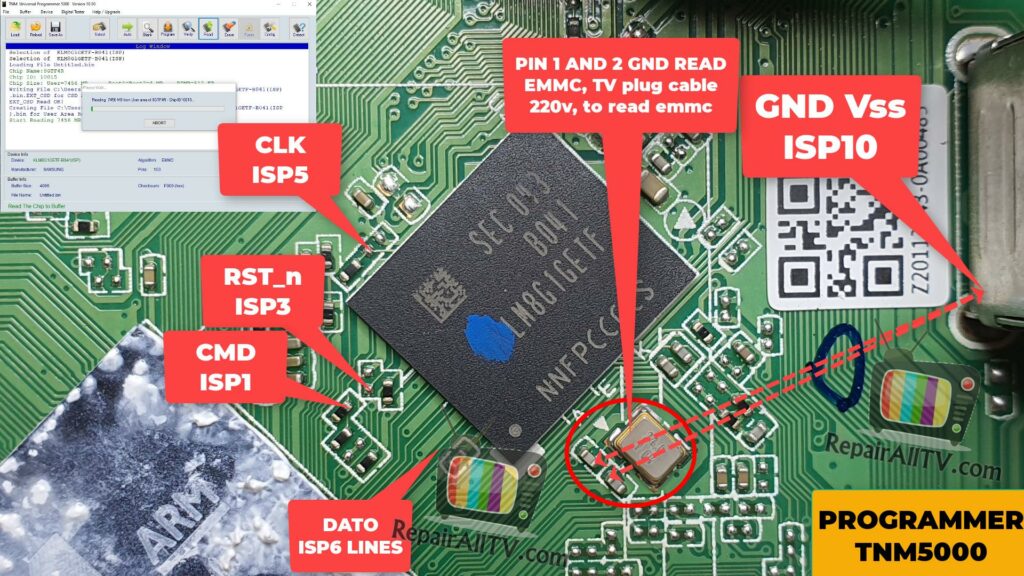

isp emmc pinout read. programmer tnm5000
Programmer ISP Cable EMMC pin
ISP PIN 1 CMD
ISP PIN 3 RST-n(Reset) (mandatory)
ISP PIN 5 CLK (Clock)
ISP PIN 6 DAT0
ISP PIN 8,10 VSS (GND)
Vcc of Chip Must be ON. Reset is needed only when circuit reset is not working.
Note 1 : After Selecting EMMC, programmer will be switched to Report view.
because EMMC files are too large and can’t be viewed by hex editor.
you can switch back to hex editor by unmarking the report button.
Note 2 : Load & Save buttons has no use in EMMC nand. you must select filename
after pressing read or program buttons. File will be saved automatically with
Boot1, Boot2, RPMB, EXT_CSD extensions for different parts of the chip.
Note 3 : After pressing read or Program, EMMC size and type will automatically
be Detected.
Note 4 : Use Config Window for selecting Different Parts of the chip for read and write.
Also, chip Size and name is read from the chip and can be viewed in this window.
Note 5 : Erase is for total chip erase. before Programming Each part, Programmer
will erase it automatically, so no need for chip erase before program.
Note 6 : Only First 192 byte of EXT_CSD is writable by users and Some of these bytes
are read-only and some parts are one-time programable so if you write over these areas,
you get Write error.
Note 7 : in most cases, Reset Pin is not necessory, Power on/off the device for reset
to view all photos you need to👇👇 subscribe. (download all tv)

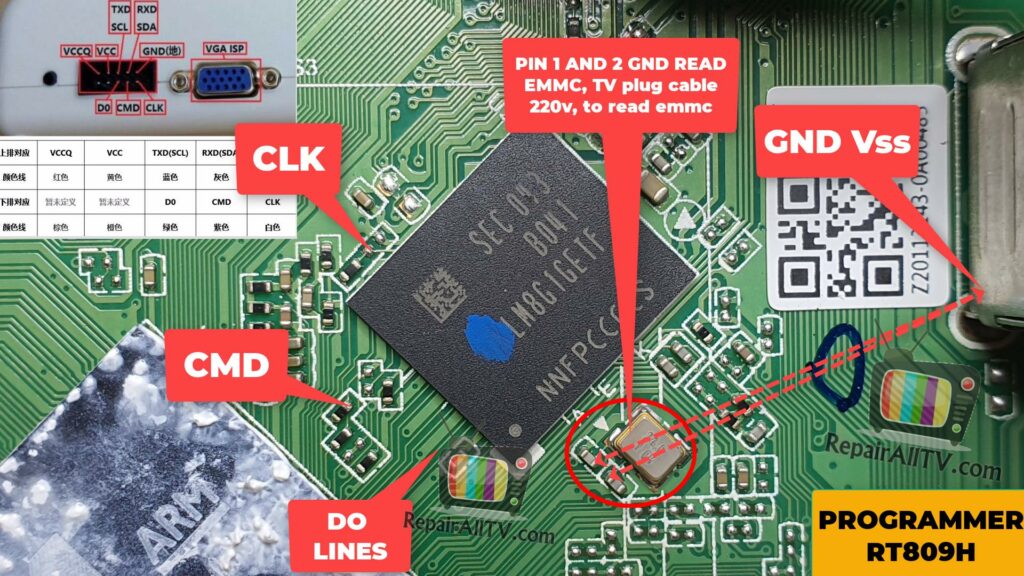

isp emmc pinout read. programmer RT809H
tv ok

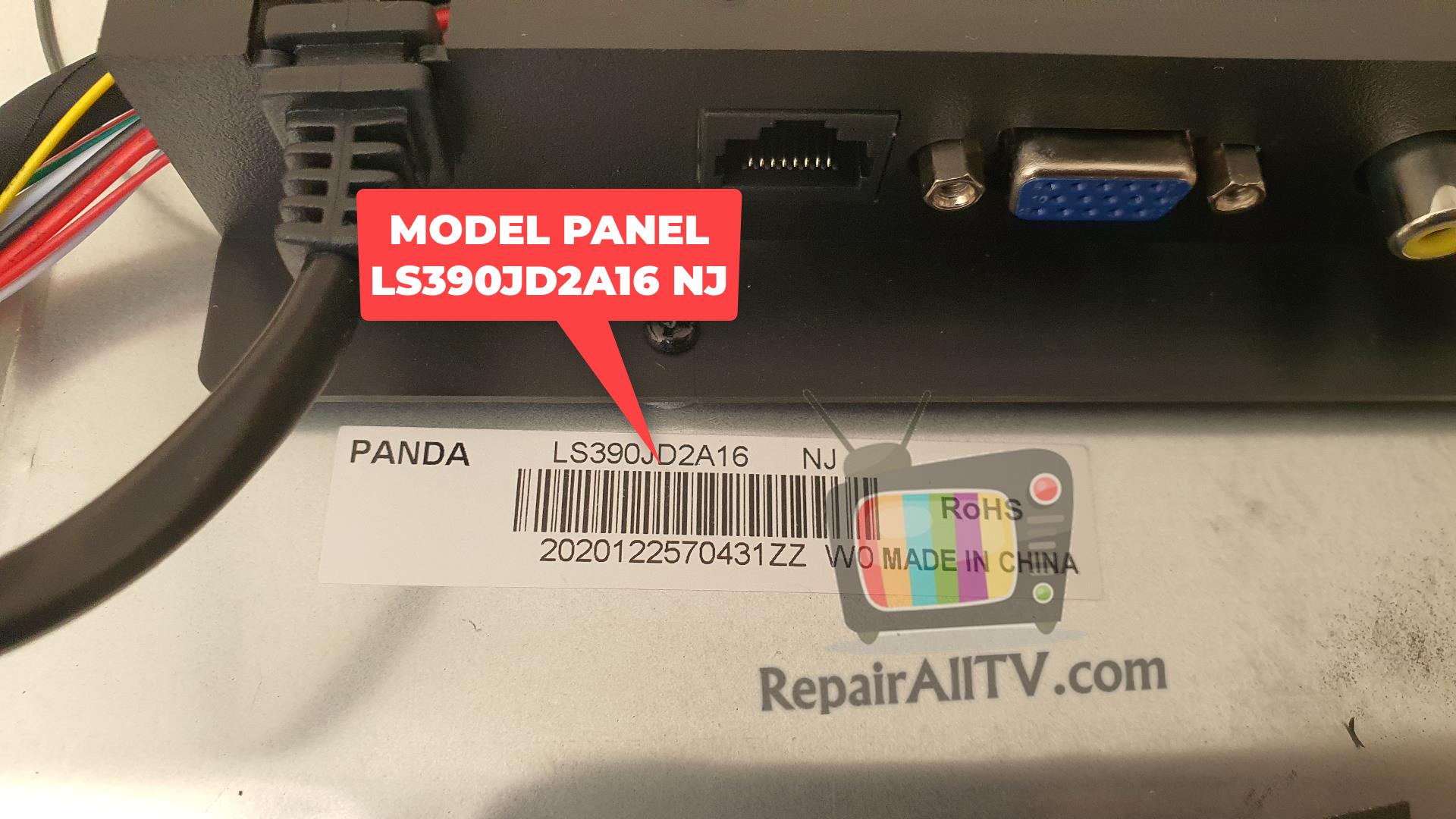

MODEL PANEL LS390JD2A16 NJ
My channel YouTube👉 RepairAllTV
