rancore t-32s133 tp.sk513st.pb805 n EMMC FIRMWARE RANCORE T-32S133 TP.SK513ST.PB805 (N) EMMC FIRMWARE

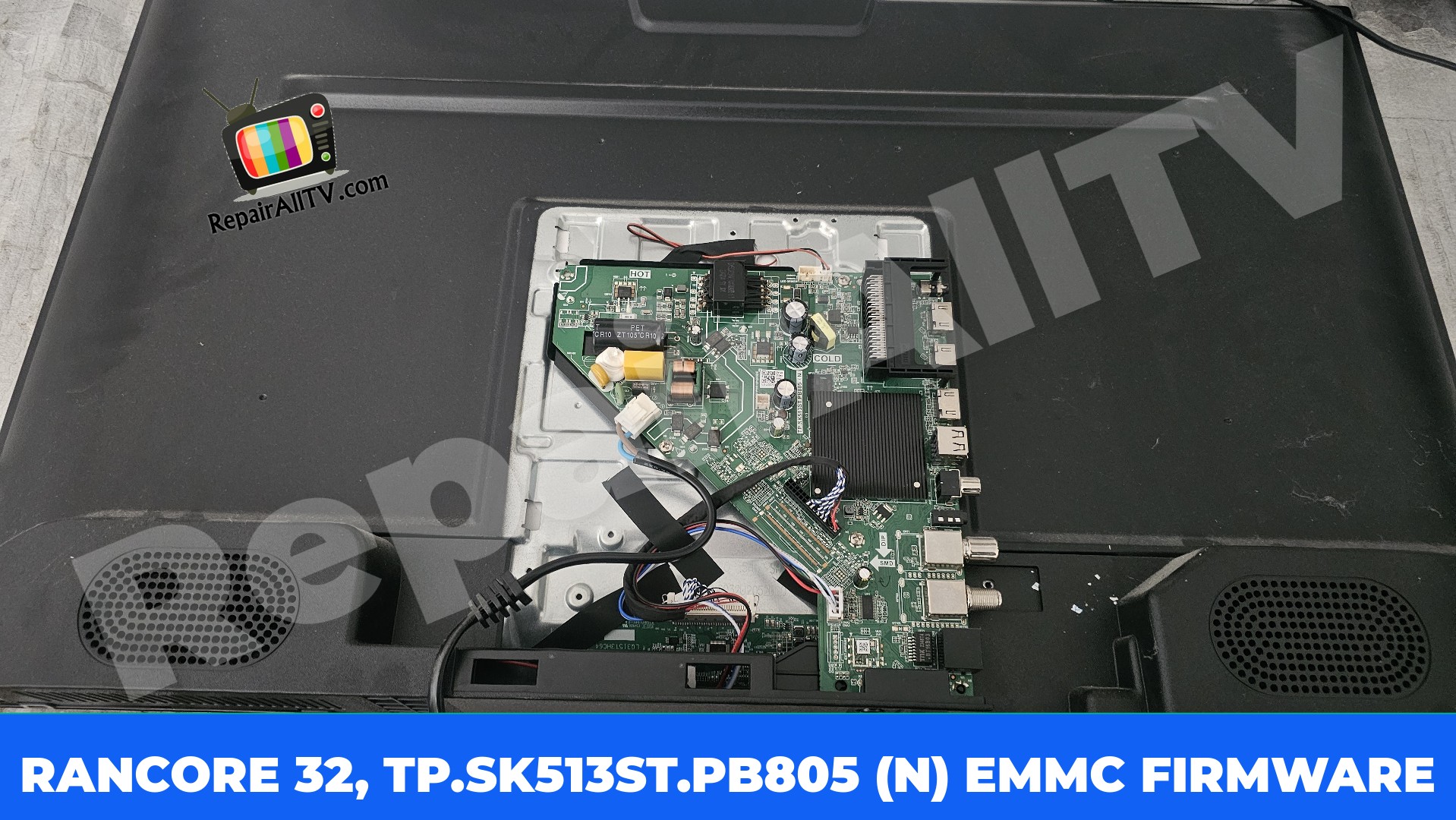

TV RANCORE MODEL T-32S133
rancore t-32s133 tp.sk513st.pb805 (n)

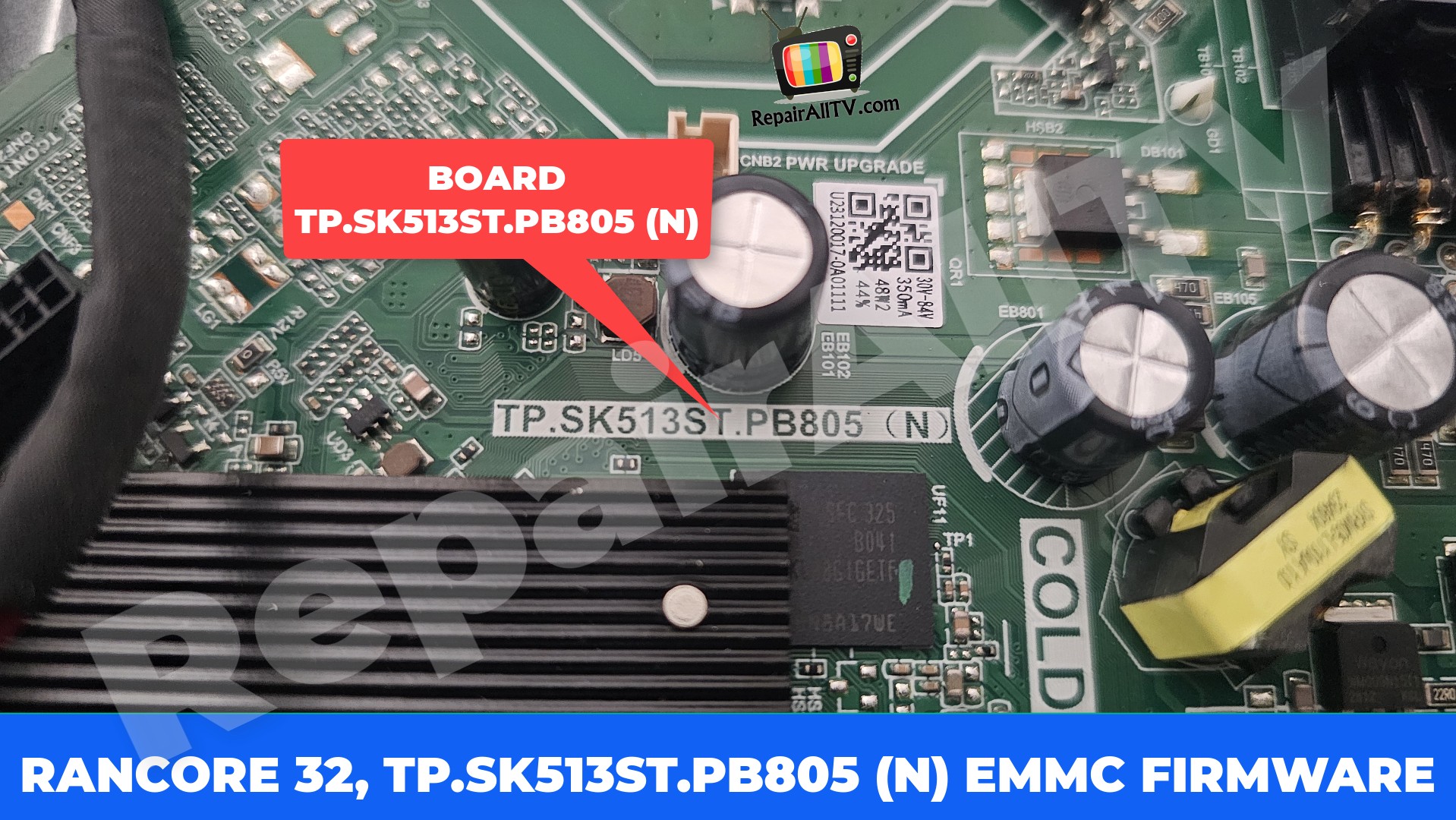

BOARD TP.SK513ST.PB805 (N)
EMMC FIRMWARE
Programmer ISP Cable EMMC pin
ISP PIN 1 CMD
ISP PIN 3 RST-n(Reset) (mandatory)
ISP PIN 5 CLK (Clock)
ISP PIN 6 DAT0
ISP PIN 8, 10 VSS (GND)
Vcc of Chip Must be ON. Reset is needed only when circuit reset is not working.
to see EMMC pinout photo as well as to download EMMC BIN Firmware. you must Subscription
PROGRAMMER TNM5000 ISP EMMC TP.SK513ST.PB805 (N)
PROGRAMMER RT809H AND XGeeu T56 ISP EMMC TP.SK513ST.PB805 (N)

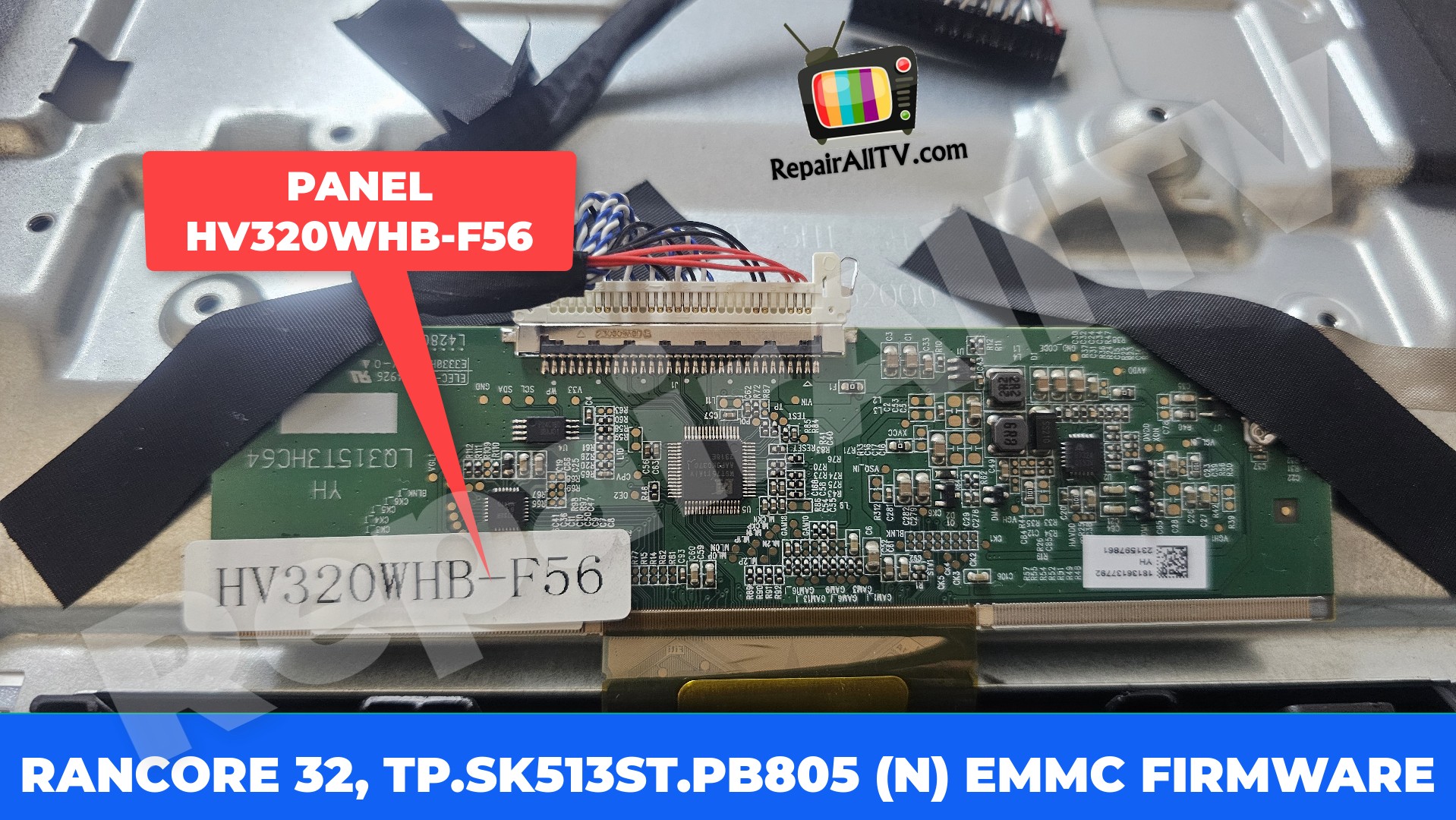

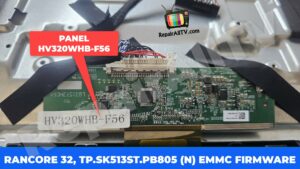

PANEL HV320WHB-F56

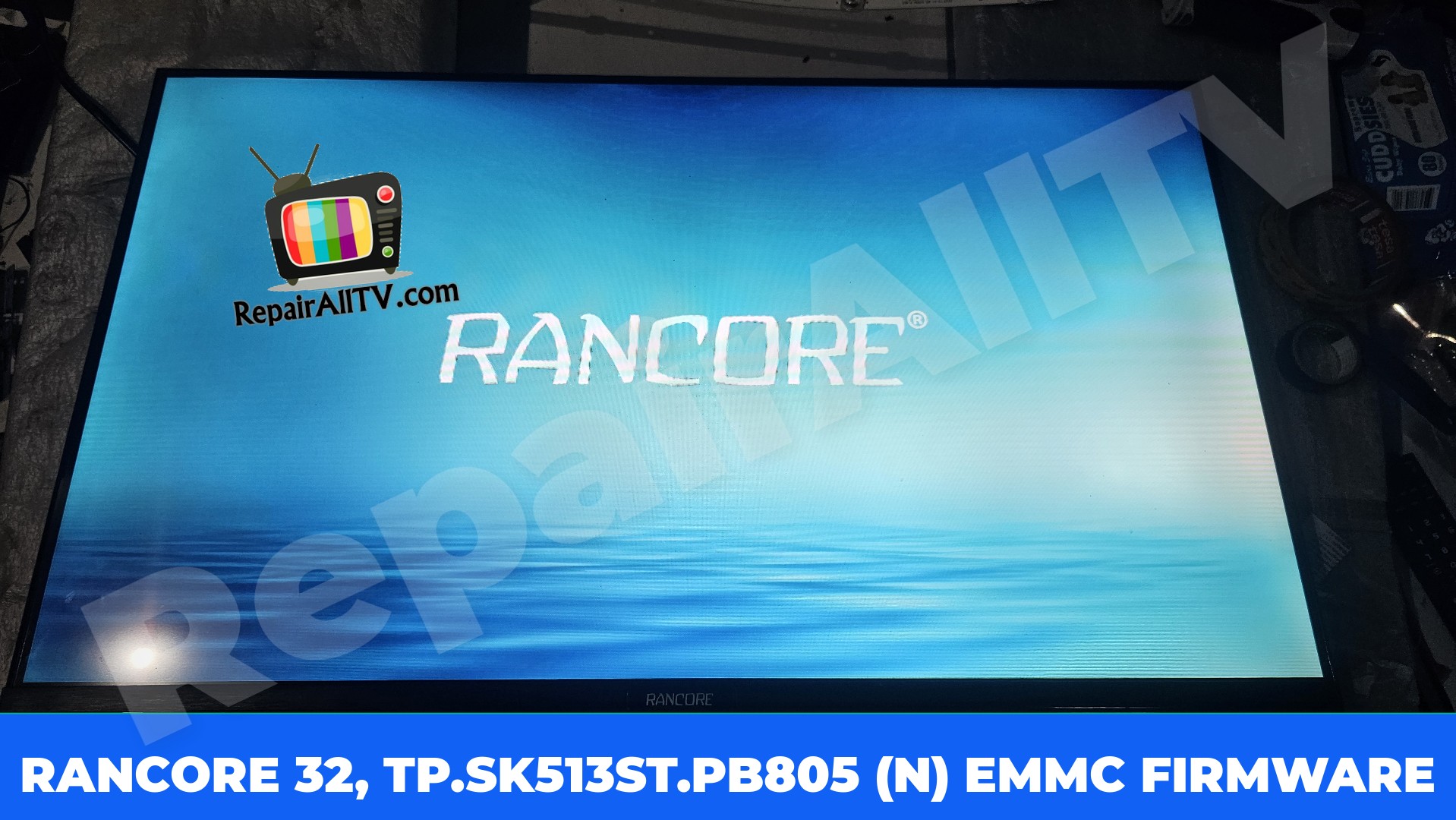

TV WORKING
My channel YouTube video RepairAllTV
DUMP EMMC NAND EEPROM
Important notes: The files we make available on this website are backup copies of device firmware that were fully operational at the time of copying.
We always try to refer to the technical data of the device, however we inform you that there may be some incompatibility with your device, even if it is the same model.
Firmware is generally fully compatible, but users should be aware that there is a possibility of incompatibility.
You need an programmer to write this dump to the chip.
Please remember to back up your firmware to restore in case of any errors or incompatibilities.
RANCORE TP.SK513ST.PB805 (N) EMMC FIRMWARE
RANCORE MODEL T-32S133
BOARD MODEL TP.SK513ST.PB805 (N)

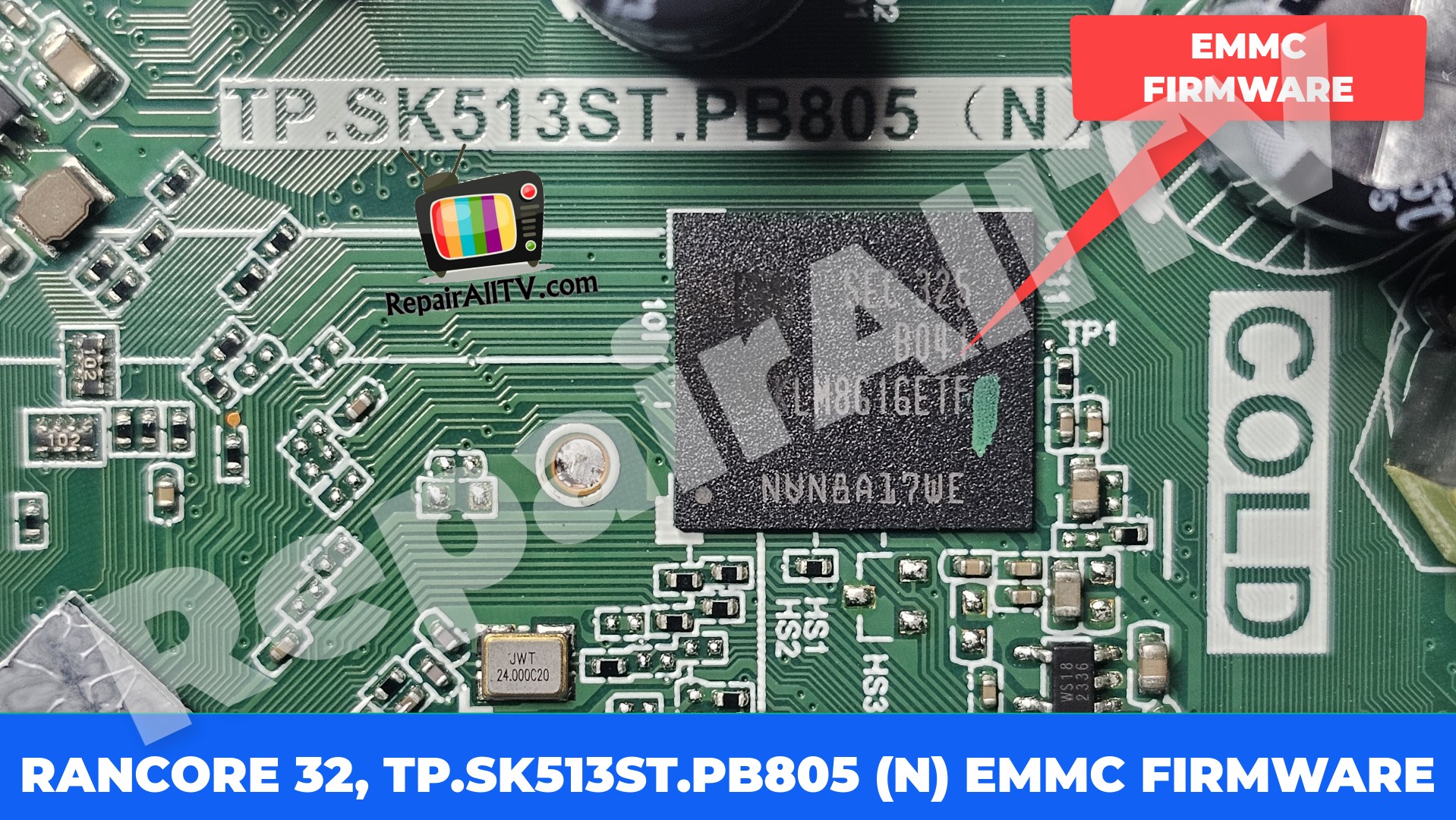

EMMC KLM8G1GETF-B041 Size: 7.28 GB
READ PROGRAMMER TNM5000/RT809H, XGeeu T56
attention. first unzip (part 2.) then part 1
download only eeprom. dump. nand. flash. EMMC. Here Subscription
