sunny sn49fil27/0216 13ay210 v2.0 emmc firmware SUNNY SN49FIL27/0216 13AT210V2.0 EMMC FIRMWARE
tv main board

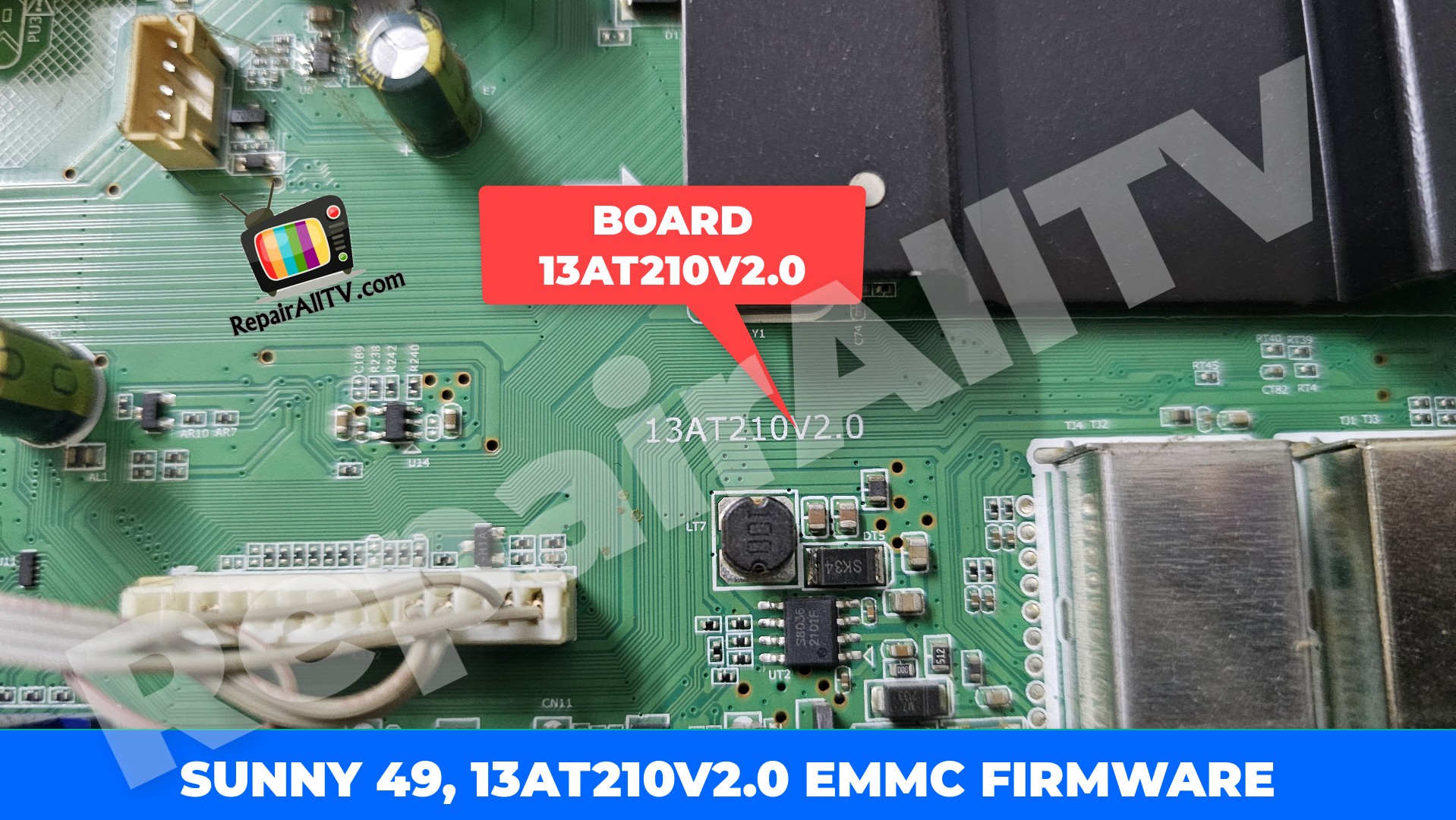

board model 13at210 v2.0
to see EMMC pinout photo as well as to download EMMC BIN Firmware. you must Subscription
Programmer ISP Cable EMMC pin
ISP PIN 1 CMD
ISP PIN 3 RST-n(Reset) (mandatory)
ISP PIN 5 CLK (Clock)
ISP PIN 6 DAT0
ISP PIN 8, 10 VSS (GND)
Vcc of Chip Must be ON. Reset is needed only when circuit reset is not working.
ISP INFO READ EMMC PROGRAMMER TNM5000 READ EMMC BOARD 13at210v2.0
PROGRAMMER TNM5000 ISP EMMC 13at210v2.0
PROGRAMMER RT809H AND XGeeu T56 ISP EMMC 13at210v2.0

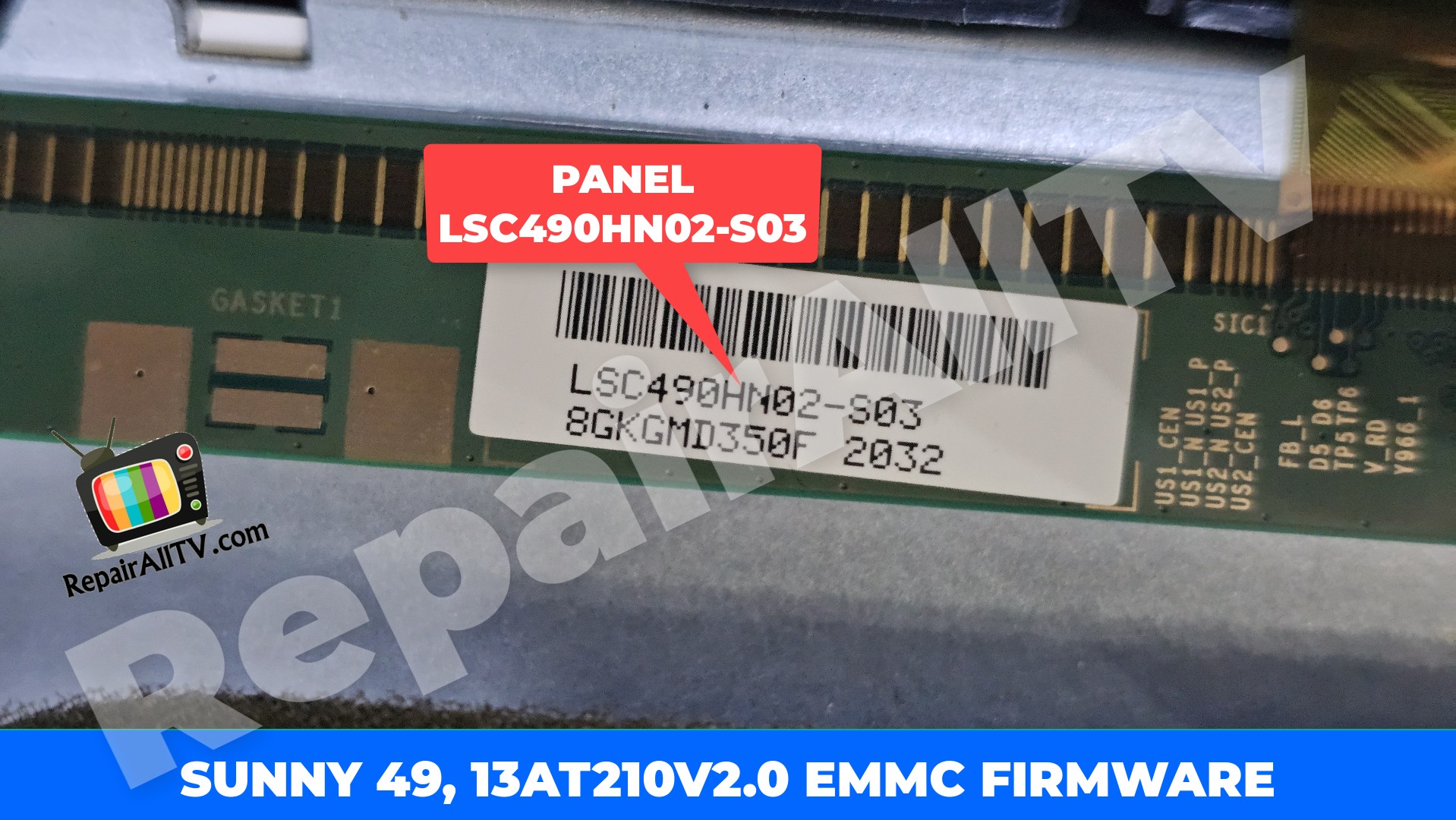

PANEL LSC490HN02-S03
My channel YouTube video RepairAllTV
DUMP EMMC NAND EEPROM
Important notes: The files we make available on this website are backup copies of device firmware that were fully operational at the time of copying.
We always try to refer to the technical data of the device, however we inform you that there may be some incompatibility with your device, even if it is the same model.
Firmware is generally fully compatible, but users should be aware that there is a possibility of incompatibility.
You need an programmer to write this dump to the chip.
Please remember to back up your firmware to restore in case of any errors or incompatibilities.
SUNNY SN49FIL27/0216 13AT210V2.0 EMMC FIRMWARE
SUNNY MODEL SN49FIL27/0216
BOARD 13AT210V2.0
EMMC THGBMJG6C1LBAI/KLM8G1GETF-B041 Size 7.28 GB
PANEL LSC490HN02-S03
READ EMMC PROGRAMMER RT809H AND XGeeu T56
download only eeprom. dump. nand. flash. EMMC. Here Subscription
Subscription more here (Select subscription plan)
