arielli LED-32DN6T2 SMART KLM8G1GEME bin file TP.MS3338E.PB803
October 12, 2020
![0318 LED 32DN6T2 SMART 2652](https://repairalltv.com/wp-content/uploads/2020/10/0318-LED-32DN6T2-SMART-2652.png)
ARIELLI led-32dn6t2 smart klm8g1geme BIN file Download tp.ms3338e.pb803
tv model LED-32DN6T2 SMART

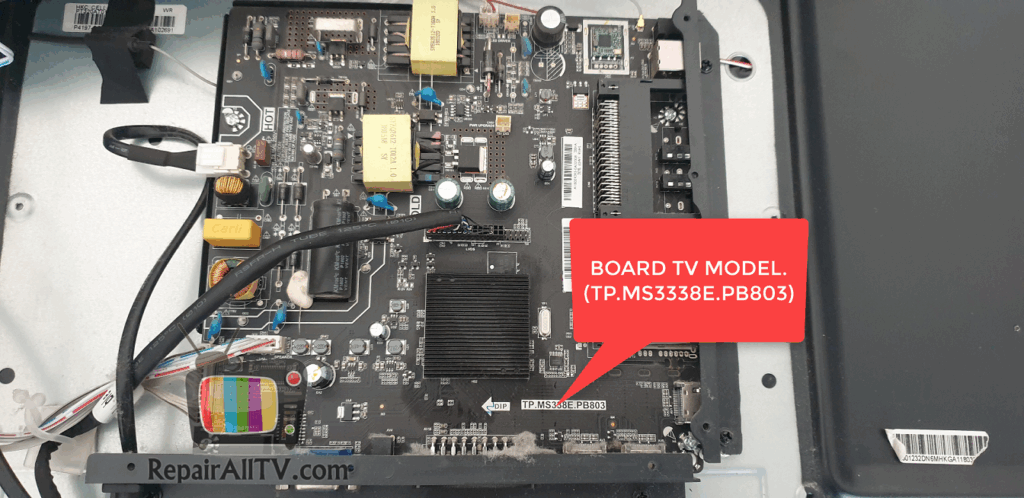

![BOARD TV MODEL. TP.MS3338E.PB803](https://repairalltv.com/wp-content/uploads/2020/10/BOARD-TV-MODEL.-TP.MS3338E.PB803-300x146.png)
BOARD TV MODEL. (TP.MS3338E.PB803)

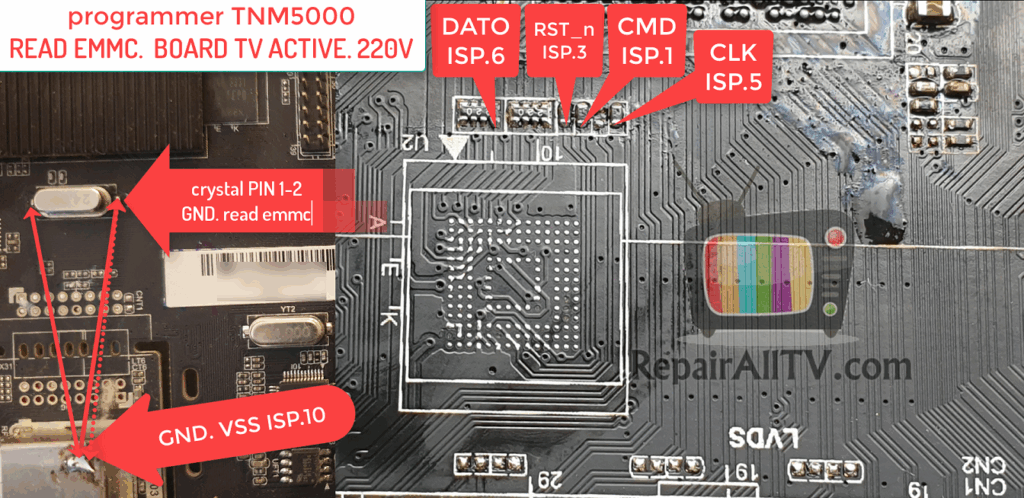

![ISP PIN EMMC READ FILES](https://repairalltv.com/wp-content/uploads/2020/10/ISP-PIN-EMMC-READ-FILES-300x146.png)
board tv
ISP PIN wire EMMC READ FILES

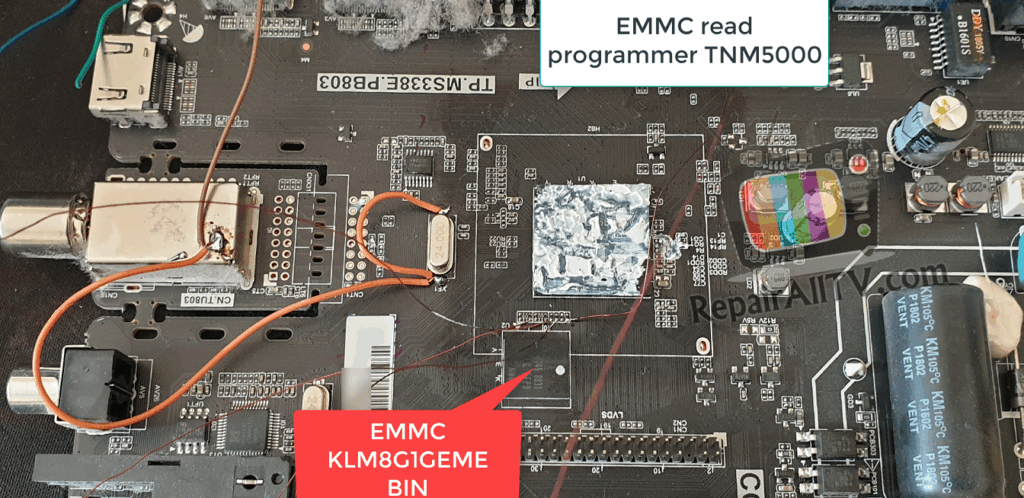

![EMMC read programmer TNM5000](https://repairalltv.com/wp-content/uploads/2020/10/EMMC-read-programmer-TNM5000-300x146.png)
EMMC read programmer TNM5000

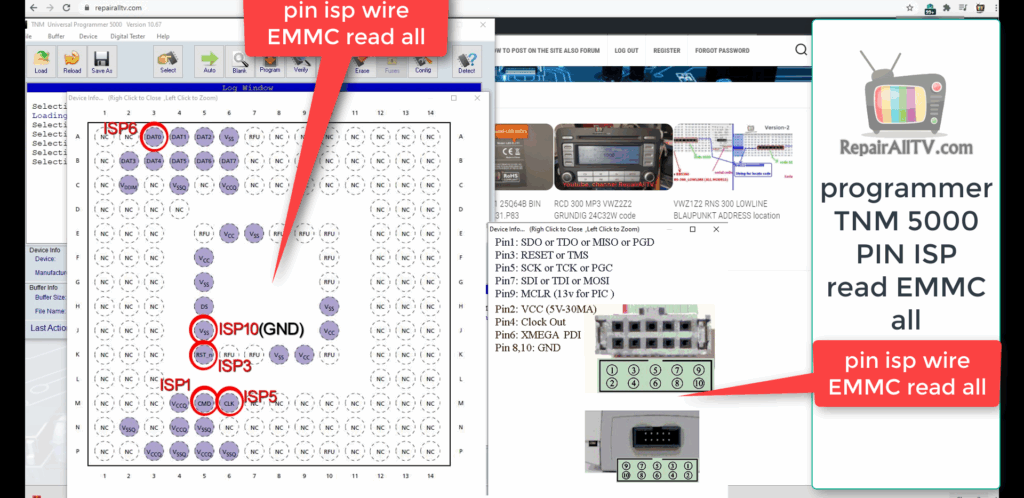

![pin isp wire EMMC read all](https://repairalltv.com/wp-content/uploads/2020/10/pin-isp-wire-EMMC-read-all-300x146.png)
programmer TNM 5000 pin isp wire EMMC read all

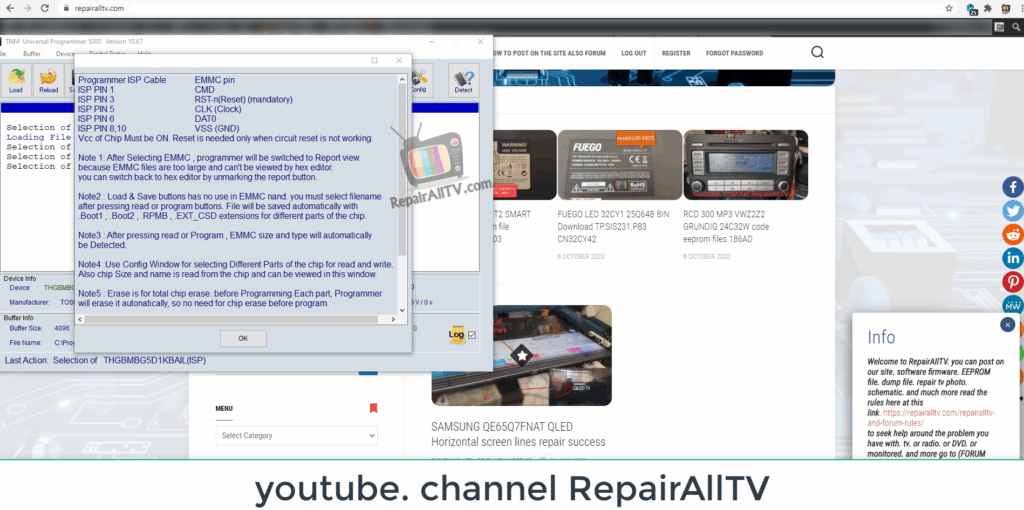

![ISP CABLE EMMC PIN](https://repairalltv.com/wp-content/uploads/2020/10/ISP-CABLE-EMMC-PIN-300x150.png)
Programmer ISP Cable EMMC pin
ISP PIN 1 CMD
ISP PIN 3 RST-n(Reset) (mandatory)
ISP PIN 5 CLK (Clock)
ISP PIN 6 DAT0
ISP PIN 8,10 VSS (GND)
Vcc of Chip Must be ON. Reset is needed only when circuit reset is not working.
Note 1: After Selecting EMMC , programmer will be switched to Report view.
because EMMC files are too large and can’t be viewed by hex editor.
you can switch back to hex editor by unmarking the report button.
Note2 : Load & Save buttons has no use in EMMC nand. you must select filename
after pressing read or program buttons. File will be saved automatically with
.Boot1 , .Boot2 , .RPMB , .EXT_CSD extensions for different parts of the chip.
Note3 : After pressing read or Program , EMMC size and type will automatically
be Detected.
Note4 :Use Config Window for selecting Different Parts of the chip for read and write.
Also chip Size and name is read from the chip and can be viewed in this window.
Note5 : Erase is for total chip erase. before Programming Each part, Programmer
will erase it autonatically, so no need for chip erase before program.
Note6: Only First 192 byte of EXT_CSD is writable by users and Some of these bytes
are read only and some parts are one time programable so if you write over these areas,
you get Write error.
Note7: in most cases, Reset Pin is not necessory , Power on/off the device for reset
![pin isp EMMC read TNM5000 LOAD](https://repairalltv.com/wp-content/uploads/2020/10/pin-isp-EMMC-read-TNM5000-LOAD-300x146.png)
pin isp EMMC read TNM5000 LOAD

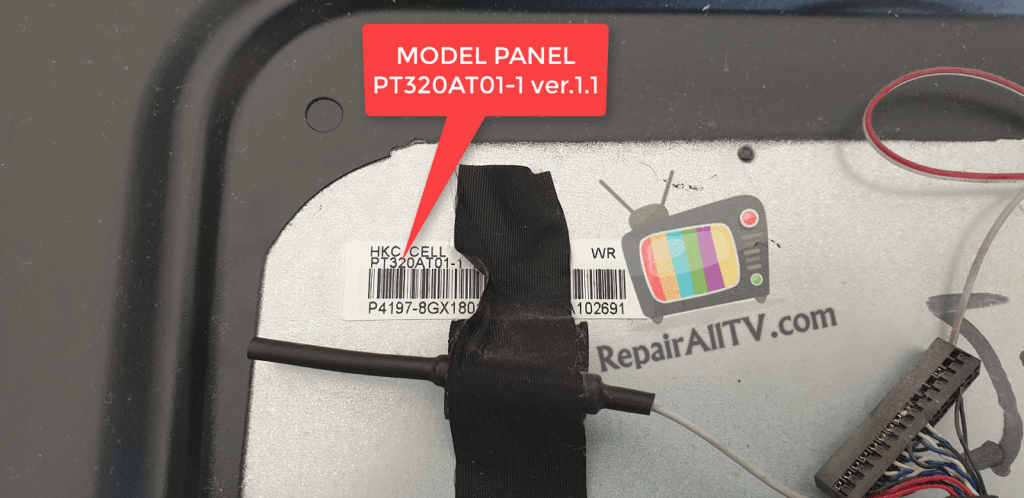

![MODEL PANEL PT320AT01 1 ver.1.1..](https://repairalltv.com/wp-content/uploads/2020/10/MODEL-PANEL-PT320AT01-1-ver.1.1..-300x146.png)
