finlux 40-nbr-24 17mb181r emmc vestel firmware FINLUX 40-NBR-24 17MB181R EMMC VESTEL FIRMWARE
finlux 40-nbr-24 17mb181r

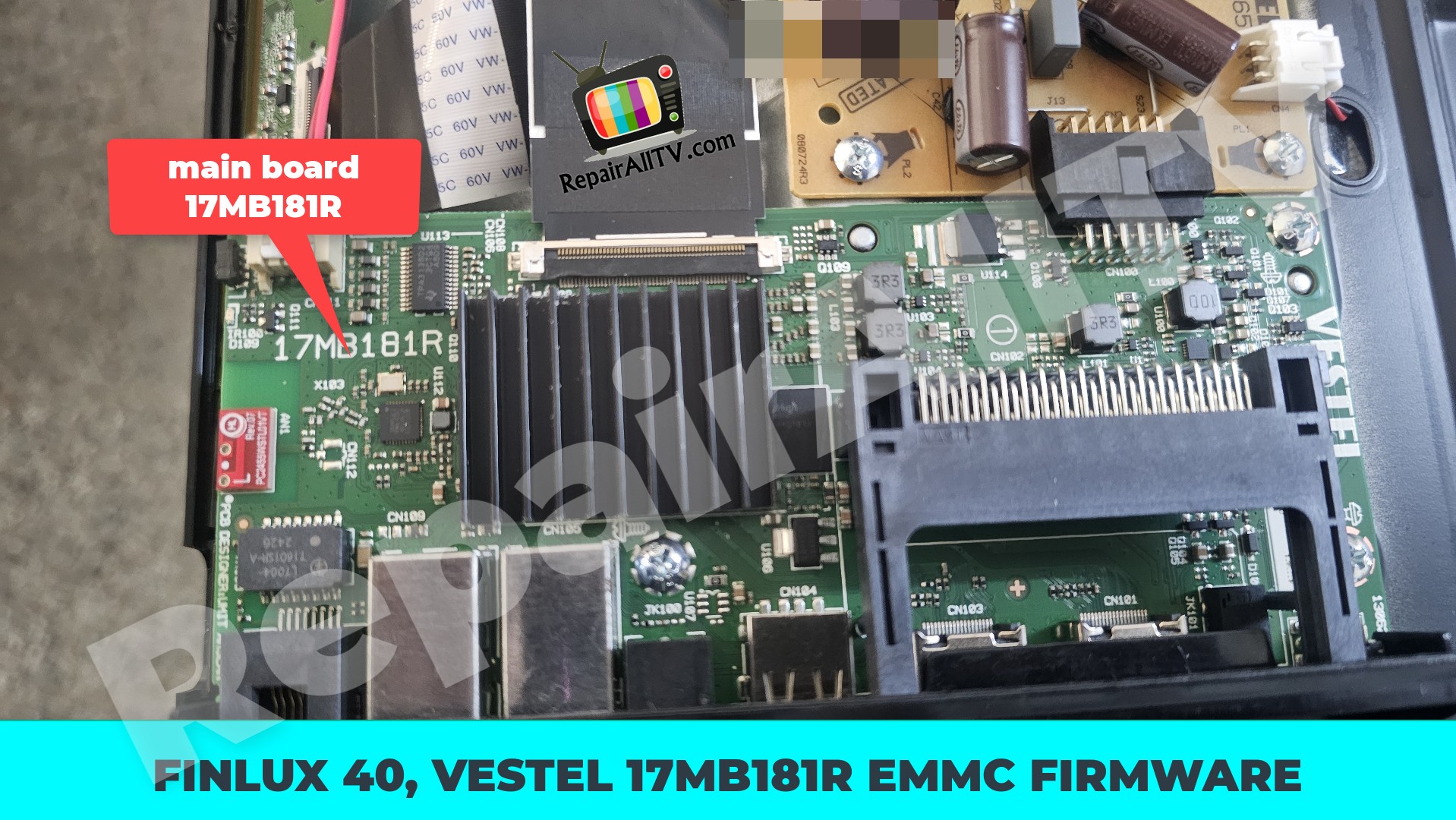

main board 17MB181R VESTEL

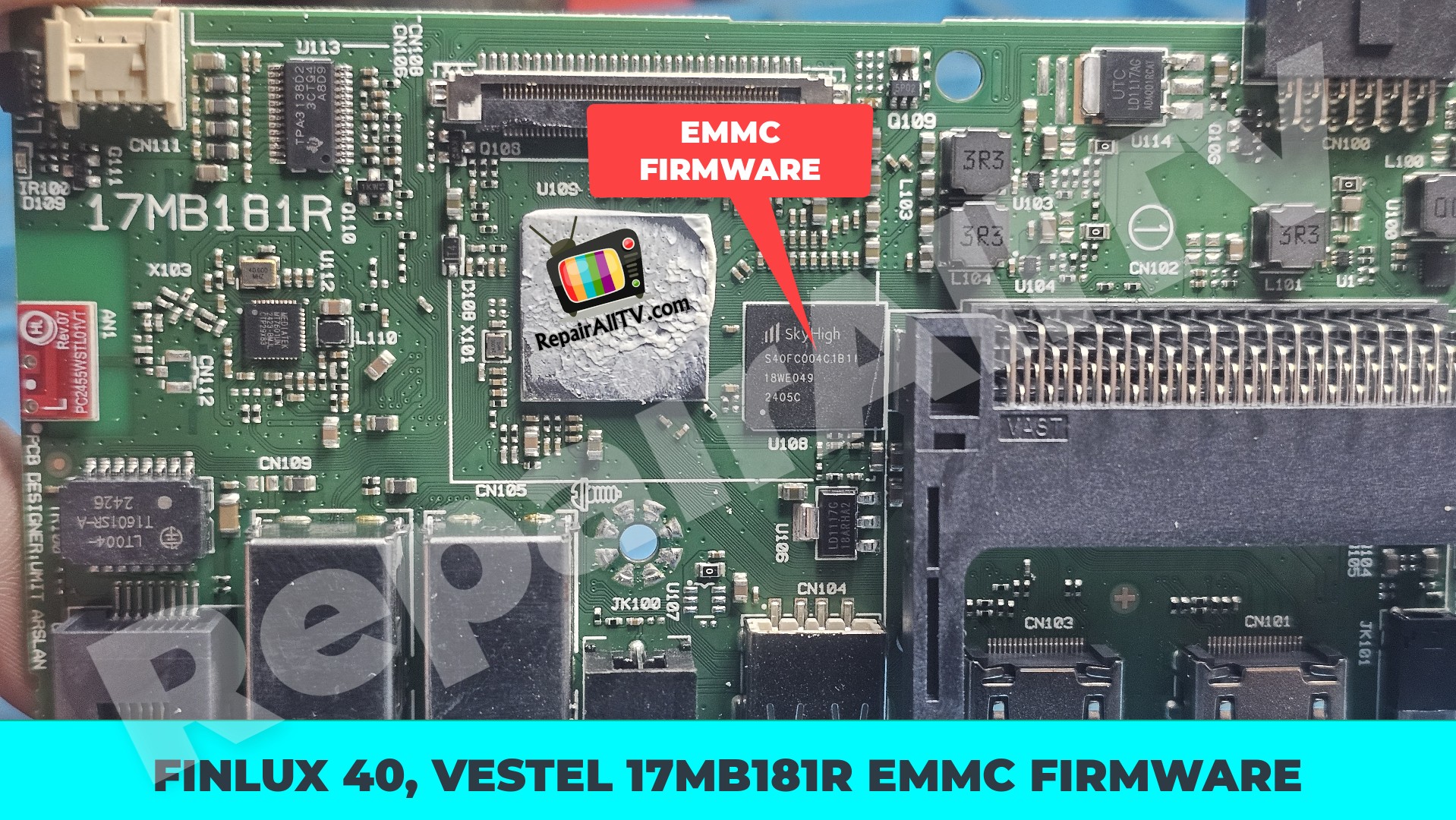

emmc firmware S40FC004C1B1I
to see EMMC pinout photo as well as to download EMMC BIN Firmware. you must Subscription
Programmer ISP Cable EMMC pin
ISP PIN 1 CMD
ISP PIN 3 RST-n(Reset) (mandatory)
ISP PIN 5 CLK (Clock)
ISP PIN 6 DAT0
ISP PIN 8, 10 VSS (GND)
Vcc of Chip Must be ON. Reset is needed only when circuit reset is not working.
PROGRAMMER TNM5000 ISP EMMC 17MB181R
PROGRAMMER RT809H AND XGeeu T56 ISP EMMC 17MB181R

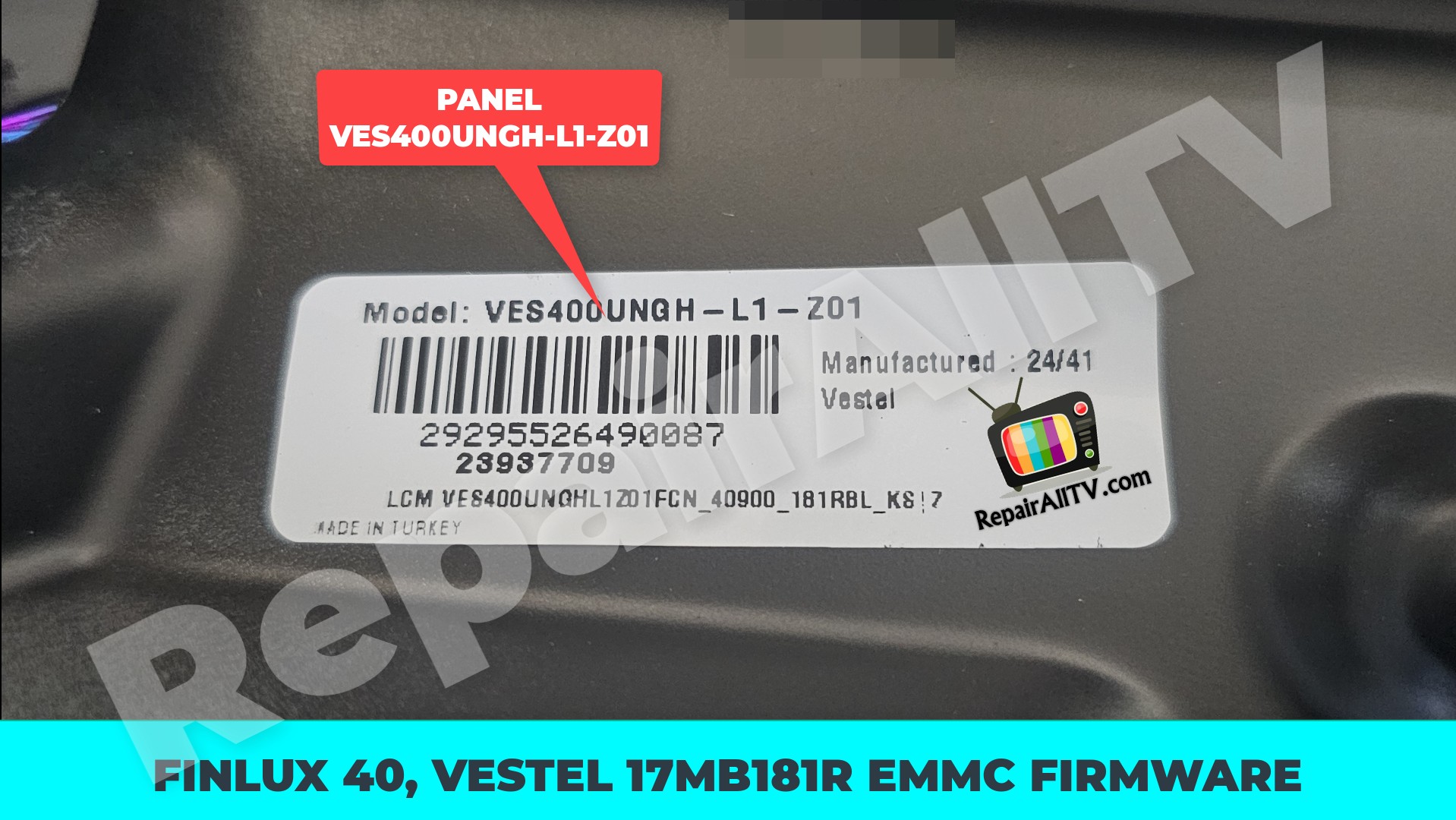

PANEL VES400UNGH-L1-Z01
My channel YouTube video RepairAllTV
DUMP EMMC NAND EEPROM
Important notes: The files we make available on this website are backup copies of device firmware that were fully operational at the time of copying.
We always try to refer to the technical data of the device, however we inform you that there may be some incompatibility with your device, even if it is the same model.
Firmware is generally fully compatible, but users should be aware that there is a possibility of incompatibility.
You need an programmer to write this dump to the chip.
Please remember to back up your firmware to restore in case of any errors or incompatibilities.
FINLUX 40-NBR-24 17MB181R EMMC VESTEL
FINLIX MODEL 40-NBR-24

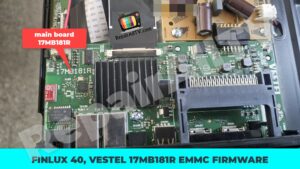

MAIN BOARD 17MB181R
EMMC S40FC004C1B1I Size: 3.64 GB
PANEL VES400UNGH-L1-Z01
READ EMMC PROGRAMMER RT809H/TNM5000 AND XGeeu T56
attention. first unzip (part 2.) then part 1
download only eeprom. dump. nand. flash. EMMC. Here Subscription
Subscription more here (Select subscription plan)
