LG 55UF685V-ZB EAX66564304 THGBMBG5D1KBAIL emmc download

LG 55UF685V-ZB EAX66564304 emmc
Share post with Friends

lg 55uf685v-zb eax66564304 thgbmbg5d1kbai bin emmc Download eax66564304/eax66564303

tv model 55UF685V-ZB

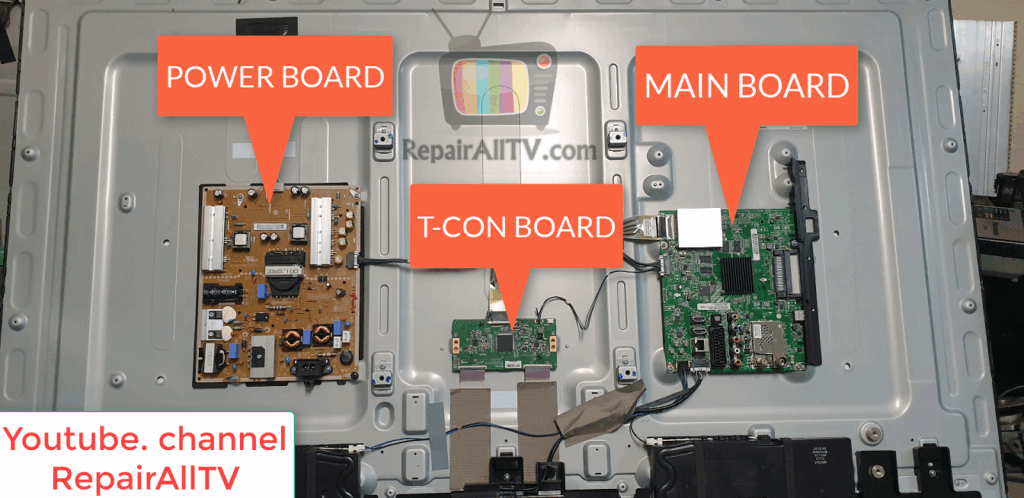

POWER BOARD MAIN BOARD T CON BOARD

POWER BOARD MAIN BOARD T-CON BOARD

MAIN BOARD EAX665640304 1

MAIN BOARD (EAX66564304)

MAIN BOARD MODEL EAX665640304 EMMC BIN 1

MAIN BOARD MODEL (EAX66564304) EMMC BIN

EBR81174405

EBR81174405

MAIN BOARD EAX665640304 EMMC THGBMBG5D1KBAILISP BIN 1

MAIN BOARD (EAX66564304) EMMC THGBMBG5D1KBAIL(ISP) BIN

LG MAIN BOARD EMMC EAX66564303 EAX66564304 3

info pin isp read EMMC PROGRAMMER TNM 5000

pin isp wire EMMC read all

ISP PIN READ EMMC PROGRAMMER TNM5000

ISP CABLE EMMC PIN

Programmer ISP Cable EMMC pin
ISP PIN 1 CMD
ISP PIN 3 RST-n(Reset) (mandatory)
ISP PIN 5 CLK (Clock)
ISP PIN 6 DAT0
ISP PIN 8,10 VSS (GND)
Vcc of Chip Must be ON. Reset is needed only when circuit reset is not working.

Note 1: After Selecting EMMC, programmer will be switched to Report view.
because EMMC files are too large and can’t be viewed by hex editor.
you can switch back to hex editor by unmarking the report button
.

Note2: Load & Save buttons has no use in EMMC nand. you must select filename
after pressing read or program buttons. File will be saved automatically with
.Boot1, .Boot2 , .RPMB, .EXT_CSD extensions for different parts of the chip.

Note3: After pressing read or Program, EMMC size and type will automatically
be Detected.

Note4: Use Config Window for selecting Different Parts of the chip for read and write.
Also, chip Size and name is read from the chip and can be viewed in this window.

Note5: Erase is for total chip erase. before Programming Each part, Programmer
will erase it automatically, so no need for chip erase before program.

Note6: Only First 192 byte of EXT_CSD is writable by users and Some of these bytes
are read-only and some parts are one-time programable so if you write over these areas,
you get Write error.

Note7: in most cases, Reset Pin is not necessory, Power on/off the device for reset

crystal 24.000. pin 1 2 connect. read EMMC

crystal 24.000. pin 1-2 connect. read EMMC

AKTIV CABLE POWER BOARD VOLTAGE

AKTIV CABLE POWER BOARD VOLTAGE

AKTIV CABLE POWER BOARD VOLTAGE TV. remote control. turn on TV. EMMC READ

AKTIV CABLE POWER BOARD VOLTAGE TV. remote control. turn on TV. EMMC READ

AKTIV 220V RED light power

AKTIV 220V RED light power

emmc read1

read EMMC PROGRAMMER TNM5000

emmc read2

read EMMC PROGRAMMER TNM 5000

emmc read3

read EMMC. PROGRAMMER TNM 5000

MAIN BOARD EAX665640304 25Q32F BIN 2

MAIN BOARD (EAX66564304) 25Q32F BIN

MAIN BOARD EAX665640304 AT24C32C EEPROM 2

MAIN BOARD (EAX66564304) AT24C32C EEPROM

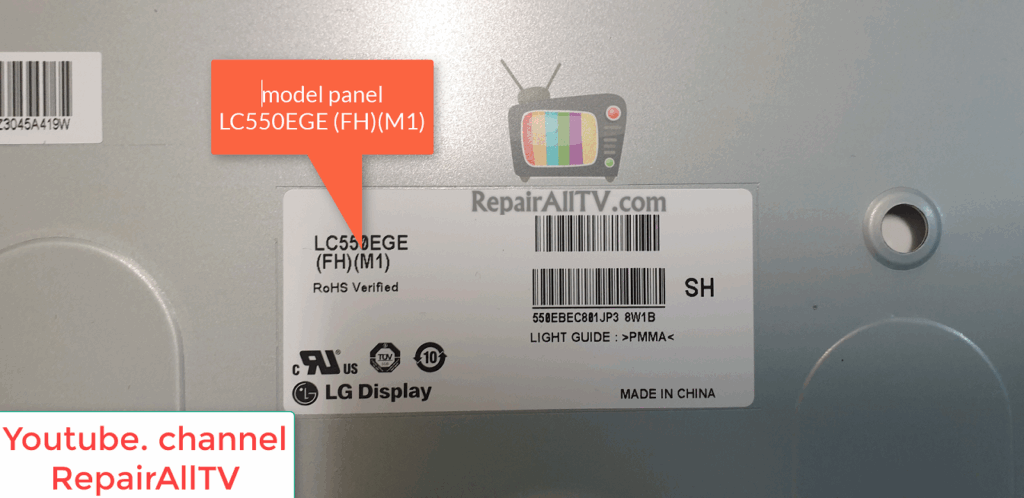

MODEL PANEL. LC550EGE FHM1

MODEL PANEL. LC550EGE (FH)(M1)
