lobod lf43dn5319t2/s2 smart tp.mt5510s.pb802 emmc firmware

October 20, 2021
LF43DN5319 T2 S2 SMART
Share post with Friends

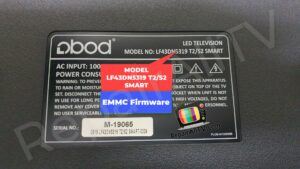

LOBOD LF43DN5319 T2/S2 SMART TP.MT5510S.PB802 EMMC firmware download PANEL MODEL HV430FHB-N42 DOO

BOARD T CON BOARD

BOARD T-CON BOARD

TP.MT5510S.PB802 EMMC firmware download

MODEL BOARD TP.MT5510S.PB802

tp.mt5510s.pb802 emmc firmware

EMMC Firmware KLM8G1GETF B041

to see EMMC pinout photo as well as to download EMMC BIN Firmware. you must subscribe

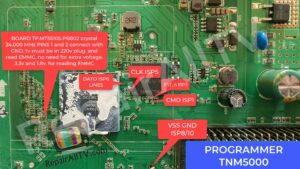

PROGRAMMER TNM5000 ISP READ EMMC

READ EMMC SPI PIN

ISP PIN READ EMMC TNM 5000

TNM5000 ISP READ EMMC

ISP CABLE EMMC PIN

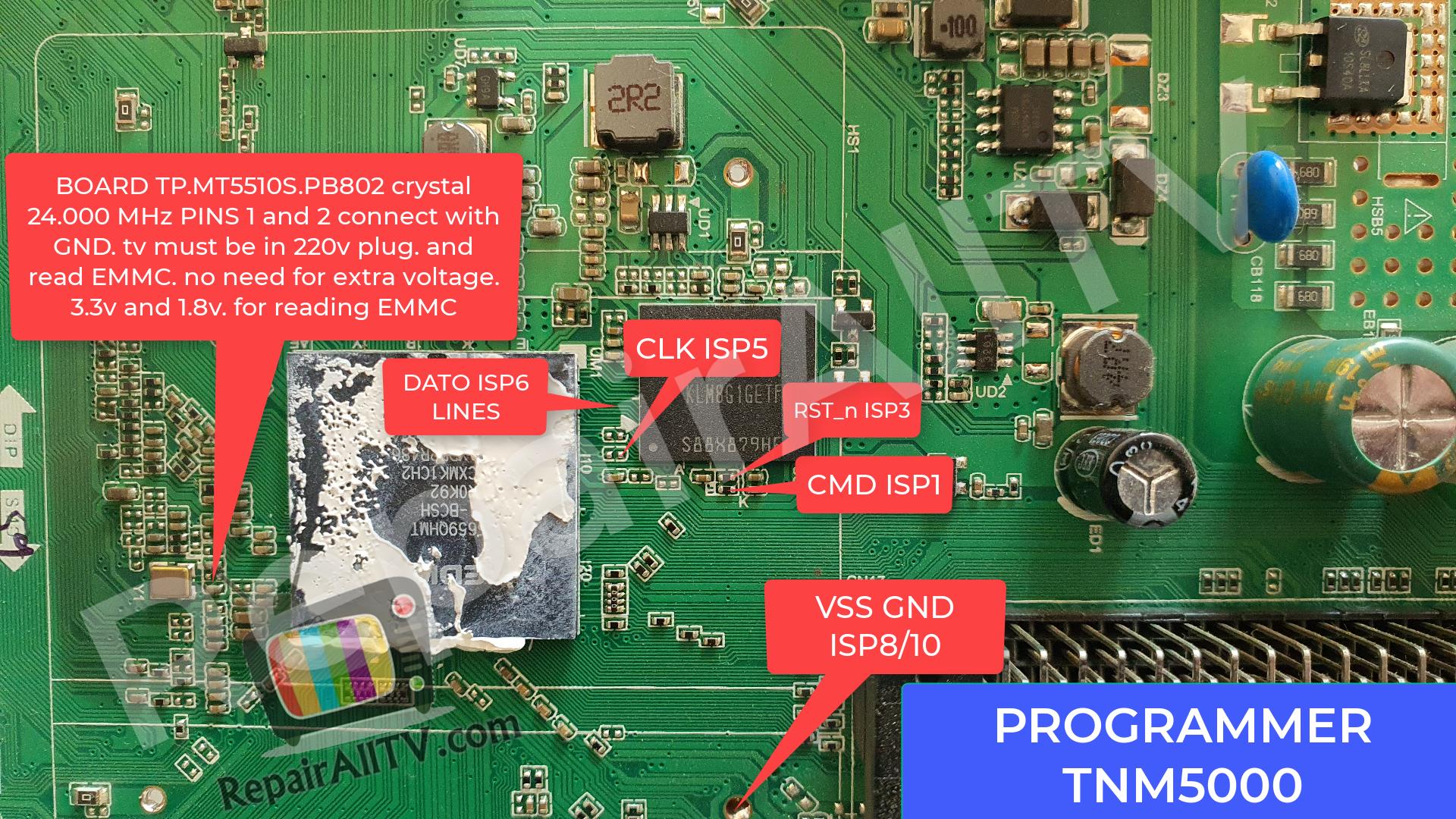

ISP INFO READ EMMC PROGRAMMER TNM5000 READ EMMC BOARD TP.MT5510S.PB802

Programmer ISP Cable EMMC pin
ISP PIN 1 CMD
ISP PIN 3 RST-n(Reset) (mandatory)
ISP PIN 5 CLK (Clock)
ISP PIN 6 DAT0
ISP PIN 8, 10 VSS (GND)
Vcc of Chip Must be ON. Reset is needed only when circuit reset is not working.

Note 1: After Selecting EMMC, programmer will be switched to Report view.
because EMMC files are too large and can’t be viewed by hex editor.
you can switch back to hex editor by unmarking the report button
.

Note 2: Load & Save buttons has no use in EMMC nand. you must select filename
after pressing read or program buttons. File will be saved automatically with
Boot 1, Boot 2, RPMB, EXT_CSD extensions for different parts of the chip.

Note 3: After pressing read or Program, EMMC size and type will automatically
be Detected

Note 4 : Use Config Window for selecting Different Parts of the chip for read and write.
Also, chip Size and name is read from the chip and can be viewed in this window.

Note 5: Erase is for total chip erase. before Programming Each part, Programmer
will erase it automatically, so no need for chip erase before program.

Note 6: Only First 192 byte of EXT_CSD is writable by users and Some of these bytes
are read-only and some parts are one-time programable so if you write over these areas,
you get Write error.

Note 7: in most cases, Reset Pin is not necessory, Power on/off the device for reset


to see EMMC pinout photo as well as to download EMMC BIN Firmware. you must subscribe

PROGRAMMER RT809H ISP READ EMMC

PROGRAMMER RT809H ISP READ EMMC

BOARD TP.MT5510S.PB802 crystal 24.000 MHz PINS 1 and 2 connect with GND. tv must be in 220v plug. and read EMMC. no need for extra voltage. 3.3v and 1.8v. for reading EMMC

BOARD TP.MT5510S.PB802 crystal 24.000 MHz PINS 1 and 2 connect with GND. tv must be in 220v plug. and read EMMC. no need for extra voltage. 3.3v and 1.8v. for reading EMMC

PANEL MODEL HV430FHB N42 DOO

PANEL MODEL HV430FHB-N42 DOO
