PHILIPS 48PFS6609/12 715G6388-M01-000-005K EMMC FIRMWARE PHILIPS 715G6388-M01-000-005K EMMC FIRMWARE

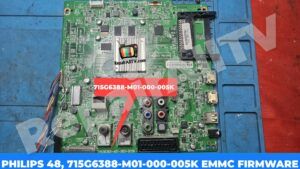

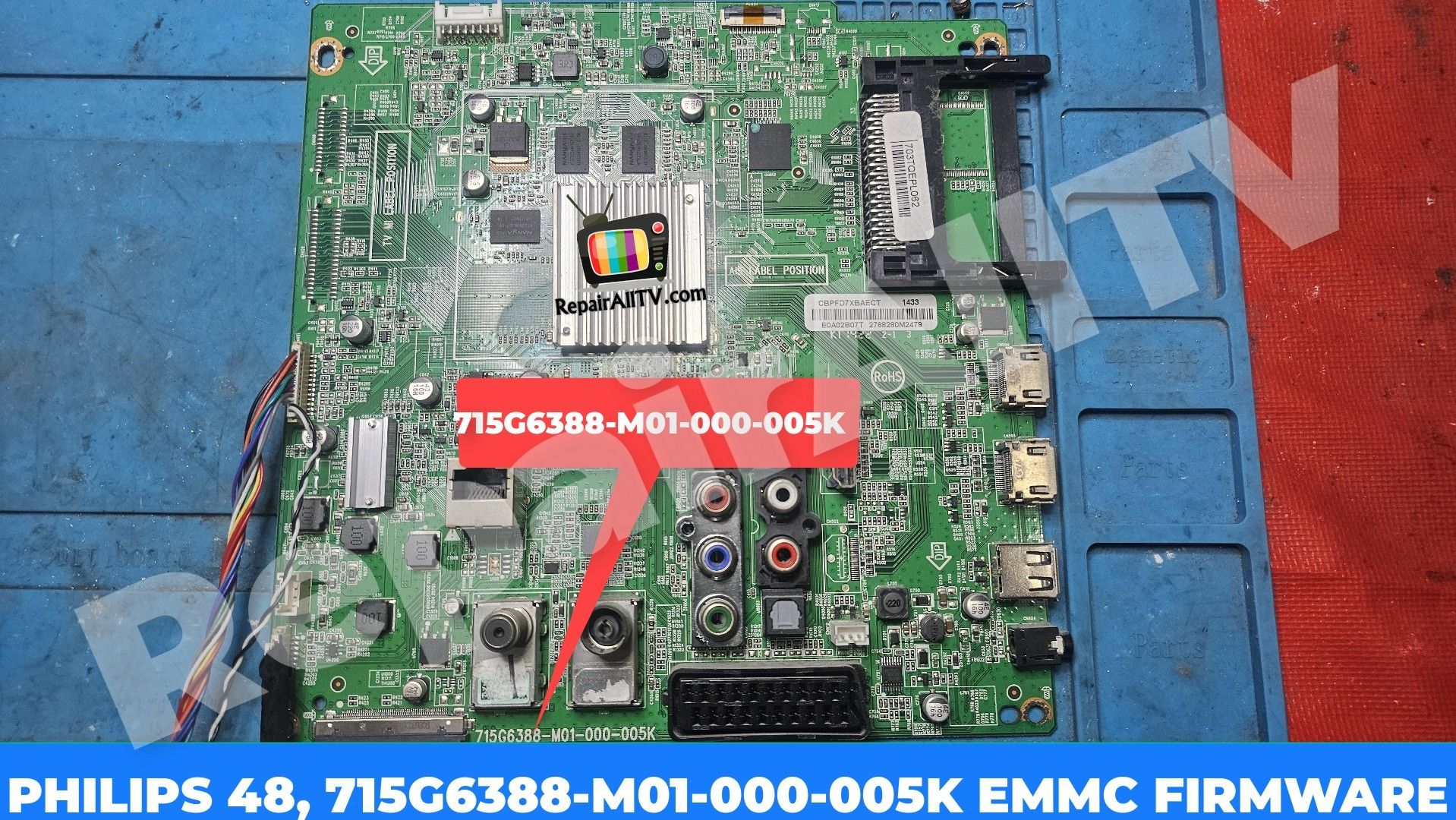

MAIN BOARD 715G6388-M01-000-005K
To view the EMMC pinout picture, as well as to download the EMMC BIN Firmware, you must have a. subscription package.
ISP INFO READ EMMC PROGRAMMER TNM5000 READ EMMC BOARD 715G6388-M01-000-005K
Programmer ISP Cable EMMC pin
ISP PIN 1 CMD
ISP PIN 3 RST-n(Reset) (mandatory)
ISP PIN 5 CLK (Clock)
ISP PIN 6 DAT0
ISP PIN 8, 10 VSS (GND)
Vcc of Chip Must be ON. Reset is needed only when circuit reset is not working.
PROGRAMMER EMMC PINOUT U4052 EMMC TNM5000
PROGRAMMER EMMC PINOUT U4052 EMMC RT809H/ XGeeu T56

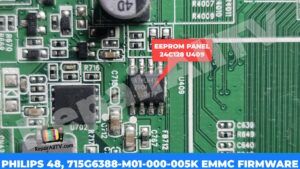

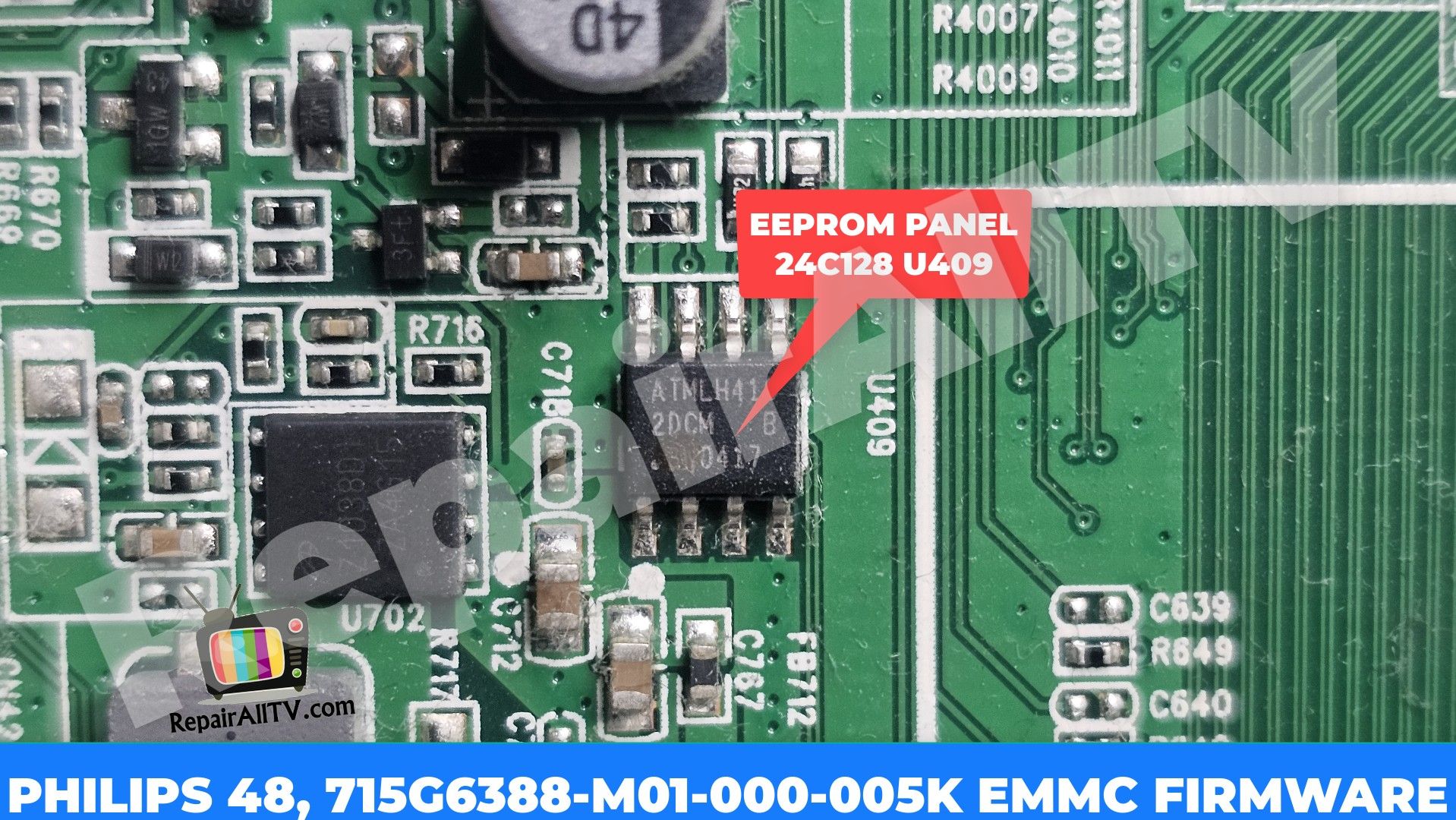

EEPROM PANEL 24C128 U409

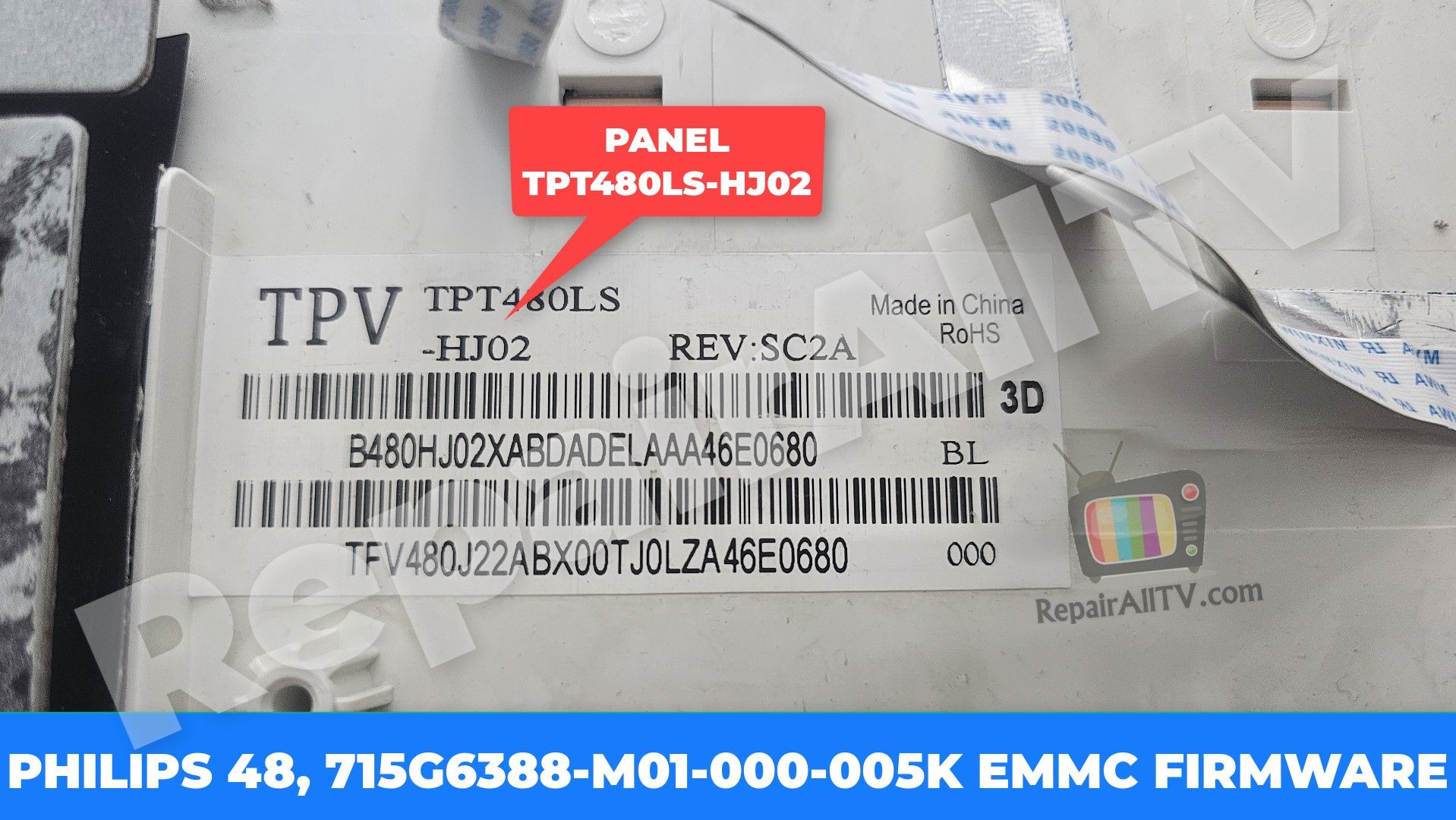

TPT480LS-HJ02
My channel YouTube RepairAllTV
DUMP EMMC NAND EEPROM
Important notes: The files we make available on this website are backup copies of device firmware that were fully operational at the time of copying.
We always try to refer to the technical data of the device, however we inform you that there may be some incompatibility with your device, even if it is the same model.
Firmware is generally fully compatible, but users should be aware that there is a possibility of incompatibility.
You need an programmer to write this dump to the chip.
Please remember to back up your firmware to restore in case of any errors or incompatibilities.
PHILIPS 715G6388-M01-000-005K EMMC FIRMWARE
PHILIPS MODEL 48PFS6609/12
MAIN BOARD 715G6388-M01-000-005K
EMMC THGBMAG5A1JBAIR Size: 3.69 GB
EEPROM 24C128 Size: 16.0 KB
PANEL TPT480LS-HJ02
READ EMMC PROGRAMMER TNM5000/RT809H AND XGeeu T56
attention. first unzip (part 2.) then part 1
download only eeprom or dump or nand flash emmc. here Subscription
