polaroid tcs55bdspr001 ma68860-zc01-01 emmc POLAROID TCS55BDSPR001 MS68860-ZC01-01 EMMC

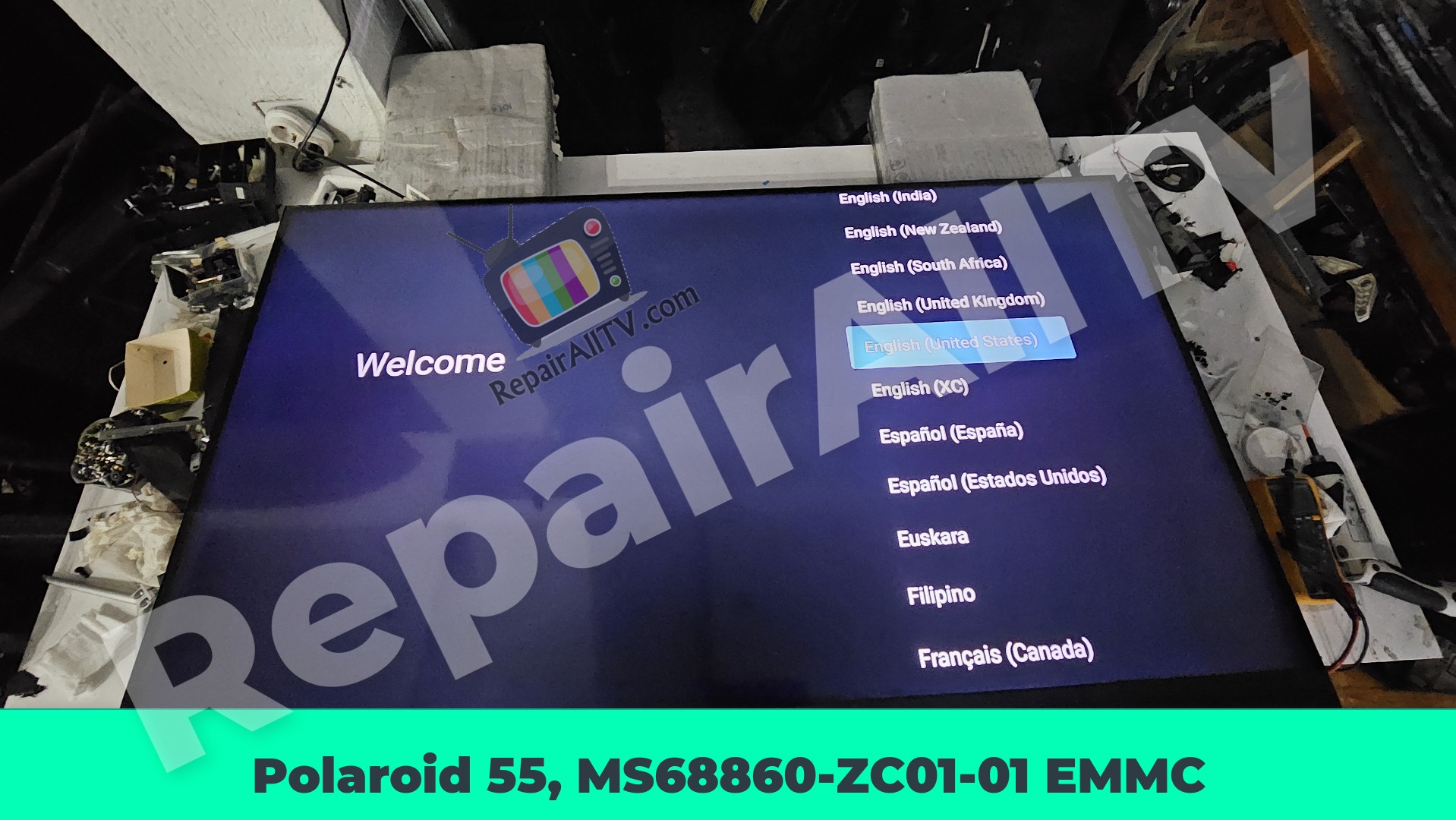

TV POLAROID MODEL TCS55BDSPR001

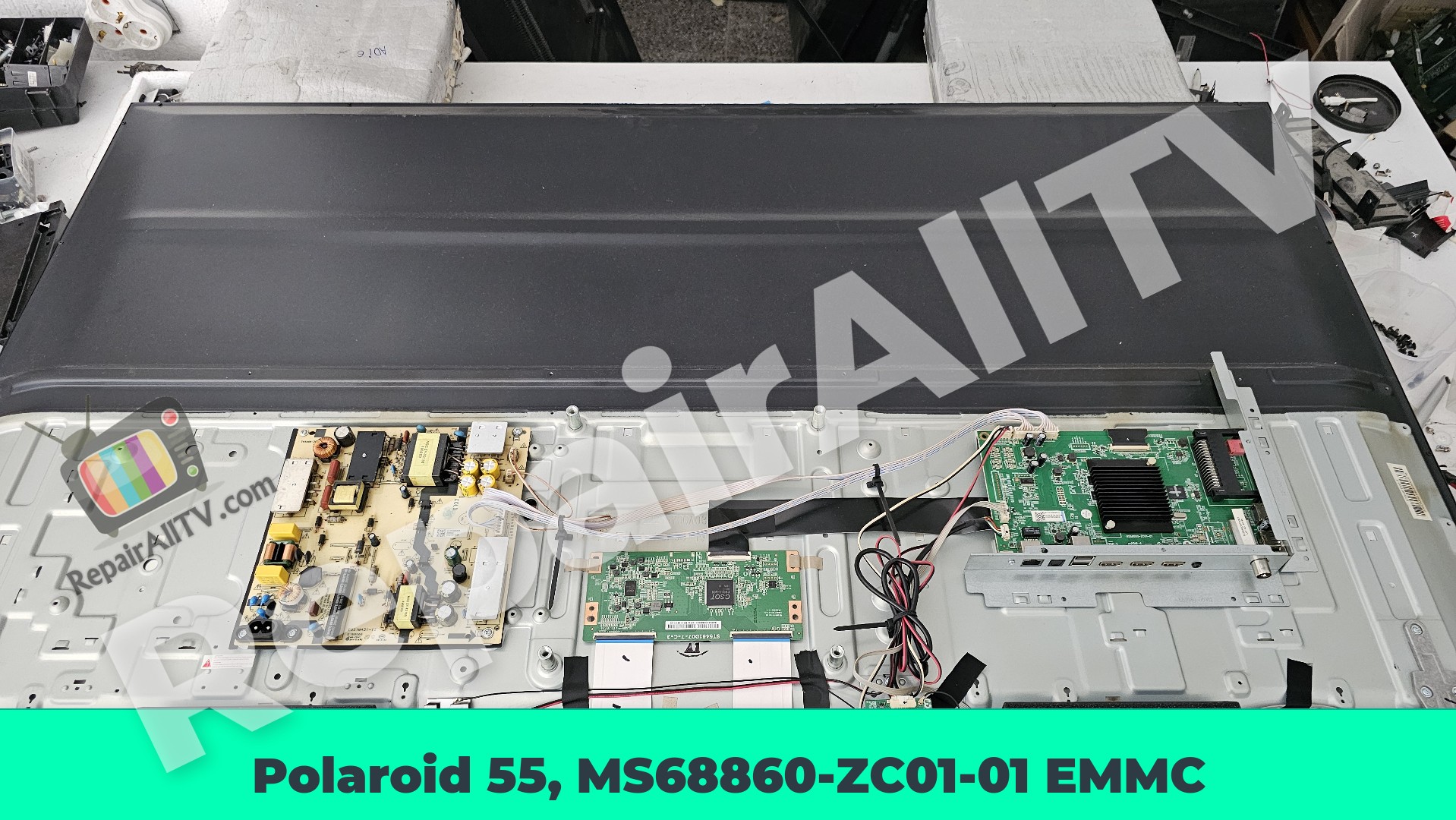

POWER BOARD MAIN BOARD T-CON BOARD

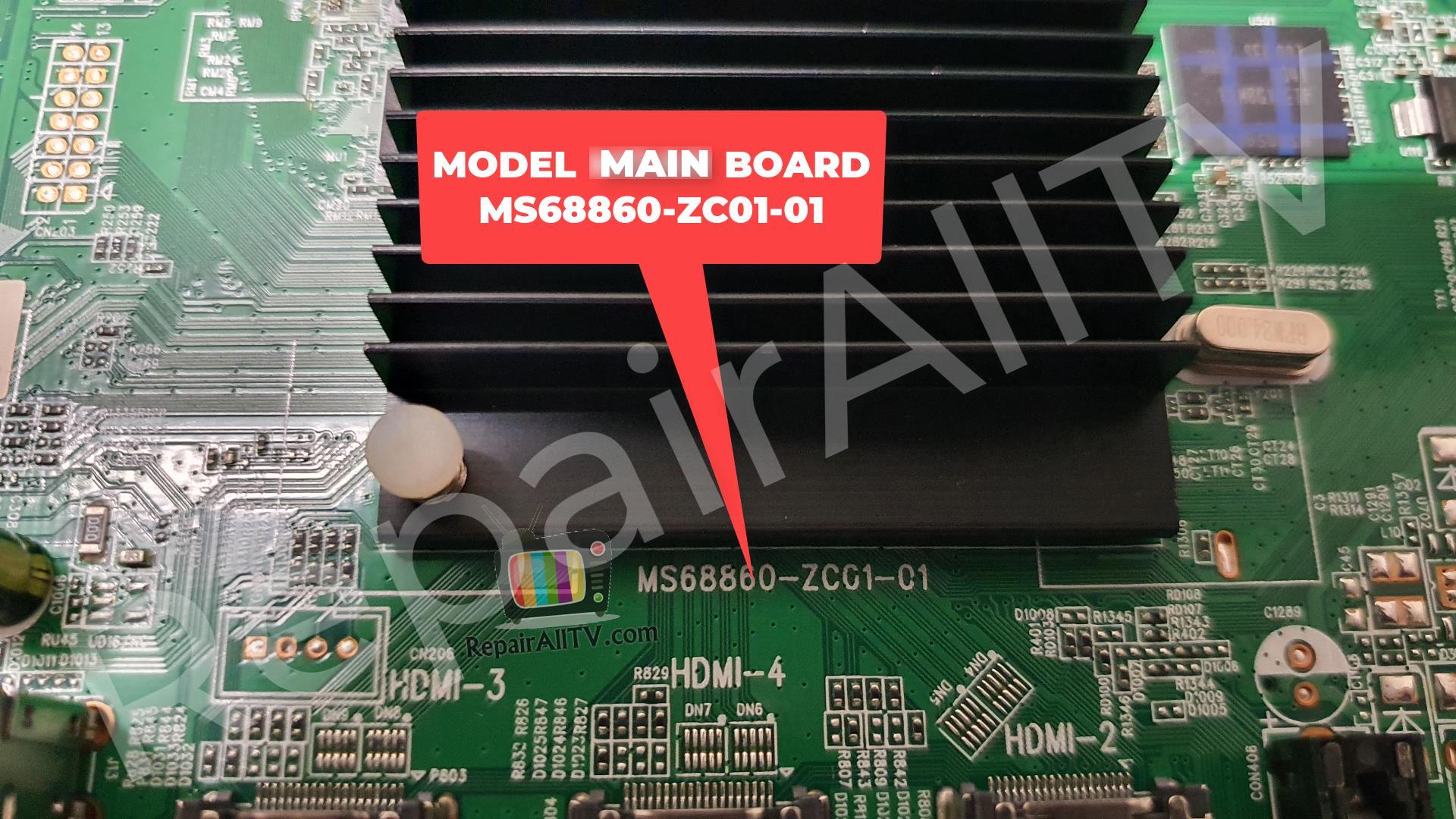

MODEL MAIN BOARD MS68860-ZC01-01
to see EMMC pinout photo as well as to download EMMC BIN Firmware. you must subscribe
ISP PROGRAMMER TNM500 READ EMMC
READ EMMC SPI PINOUT
ISP INFO READ EMMC PROGRAMMER TNM5000 READ EMMC BOARD MS68860-ZC01-01
Programmer ISP Cable EMMC pin
ISP PIN 1 CMD
ISP PIN 3 RST-n(Reset) (mandatory)
ISP PIN 5 CLK (Clock)
ISP PIN 6 DAT0
ISP PIN 8, 10 VSS (GND)
Vcc of Chip Must be ON. Reset is needed only when circuit reset is not working.
Note 1: After Selecting EMMC, programmer will be switched to Report view.
because EMMC files are too large and can’t be viewed by hex editor.
you can switch back to hex editor by unmarking the report button.
Note 2: Load & Save buttons has no use in EMMC nand. you must select filename
after pressing read or program buttons. File will be saved automatically with
Boot 1, Boot 2, RPMB, EXT_CSD extensions for different parts of the chip.
Note 3: After pressing read or Program, EMMC size and type will automatically
be Detected
Note 4 : Use Config Window for selecting Different Parts of the chip for read and write.
Also, chip Size and name is read from the chip and can be viewed in this window.
Note 5: Erase is for total chip erase. before Programming Each part, Programmer
will erase it automatically, so no need for chip erase before program.
Note 6: Only First 192 byte of EXT_CSD is writable by users and Some of these bytes
are read-only and some parts are one-time programable so if you write over these areas,
you get Write error.
Note 7: in most cases, Reset Pin is not necessory, Power on/off the device for reset
EMMC PINOUT
PROGRAMMER RT809H ISP READ EMMC

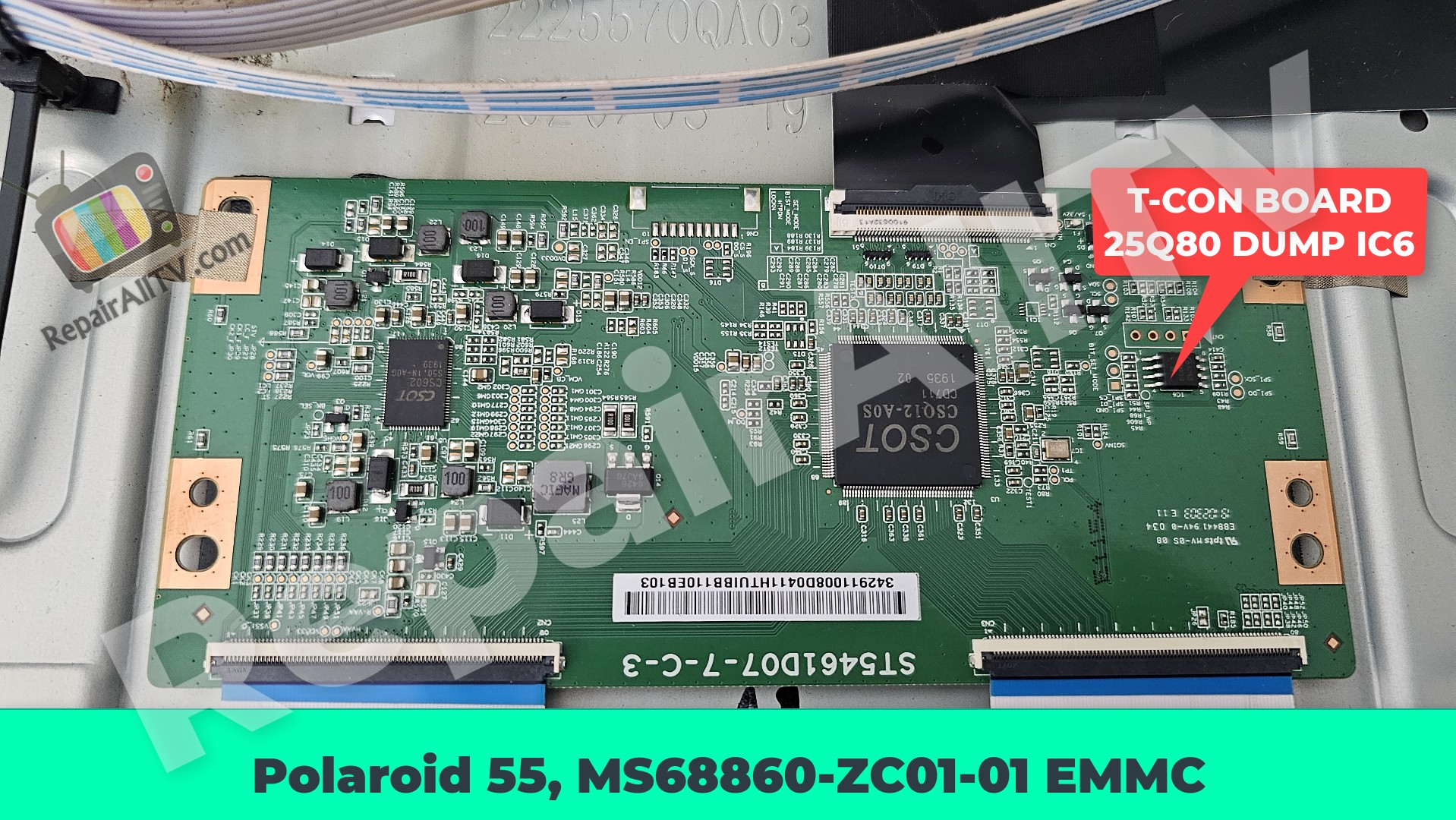

ST5461DO7-7-C-3 25Q80 DUMP IC6
PANEL ST5461DO7-7
My channel YouTube RepairAllTV

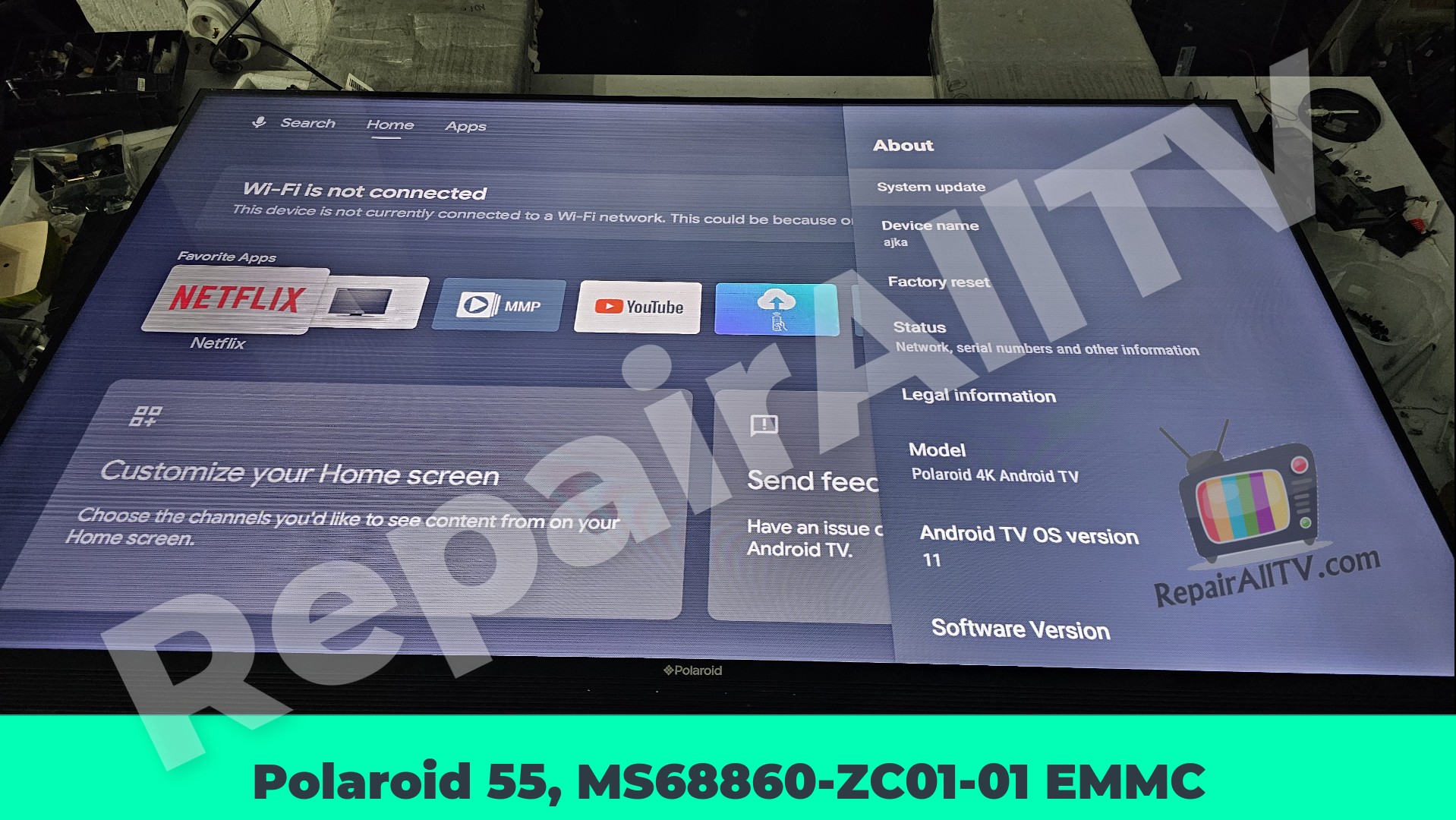

polaroid 4k android TV OS verison 11
DUMP EMMC NAND EEPROM
Important notes: The files we make available on this website are backup copies of device firmware that were fully operational at the time of copying.
We always try to refer to the technical data of the device, however we inform you that there may be some incompatibility with your device, even if it is the same model.
Firmware is generally fully compatible, but users should be aware that there is a possibility of incompatibility.
You need an programmer to write this dump to the chip.
Please remember to back up your firmware to restore in case of any errors or incompatibilities.
POLAROID TCS55BDSPR001 MS68860-ZC01-01 EMMC
Polaroid MODEL TCS55BDSPR001
MAIN BOARD MS68860-ZC01-01
EMMC KLM8G1GETF-B041 Size: 7.28 GB

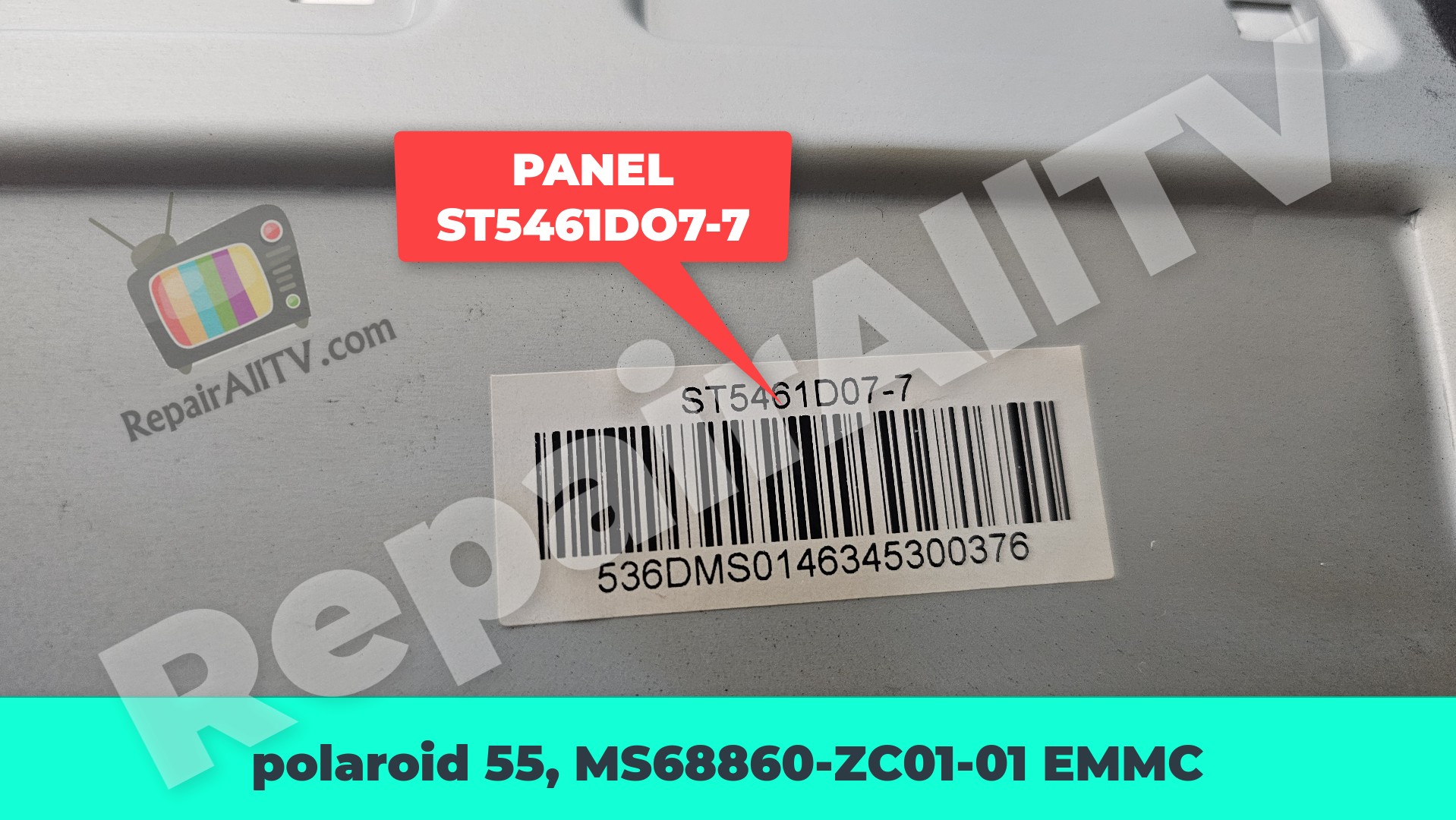

PANEL ST5461D07-7
READ EMMC PROGRAMMER TNM5000 AND RT809H AND XGeeu T56
download only eeprom. dump. nand. flash. EMMC. Here Subscription
Subscription more here (Select subscription plan)
