polaroid TCSAND55UHDPR02 MS68860-ZC01-01 EMMC
October 25, 2021
![POLAROID TCSAND55UHDPR02](https://repairalltv.com/wp-content/uploads/2021/10/POLAROID-TCSAND55UHDPR02.jpg)
POLAROID tcsand55uhdpr02 ms68860-zc01-01 emmc KLM8G1GETF-B041 download PANEL LC546PU3L02
![POWER BOARD MAIN BOARD T CON BOARD 3](https://repairalltv.com/wp-content/uploads/2021/10/POWER-BOARD-MAIN-BOARD-T-CON-BOARD-3-300x169.jpg)

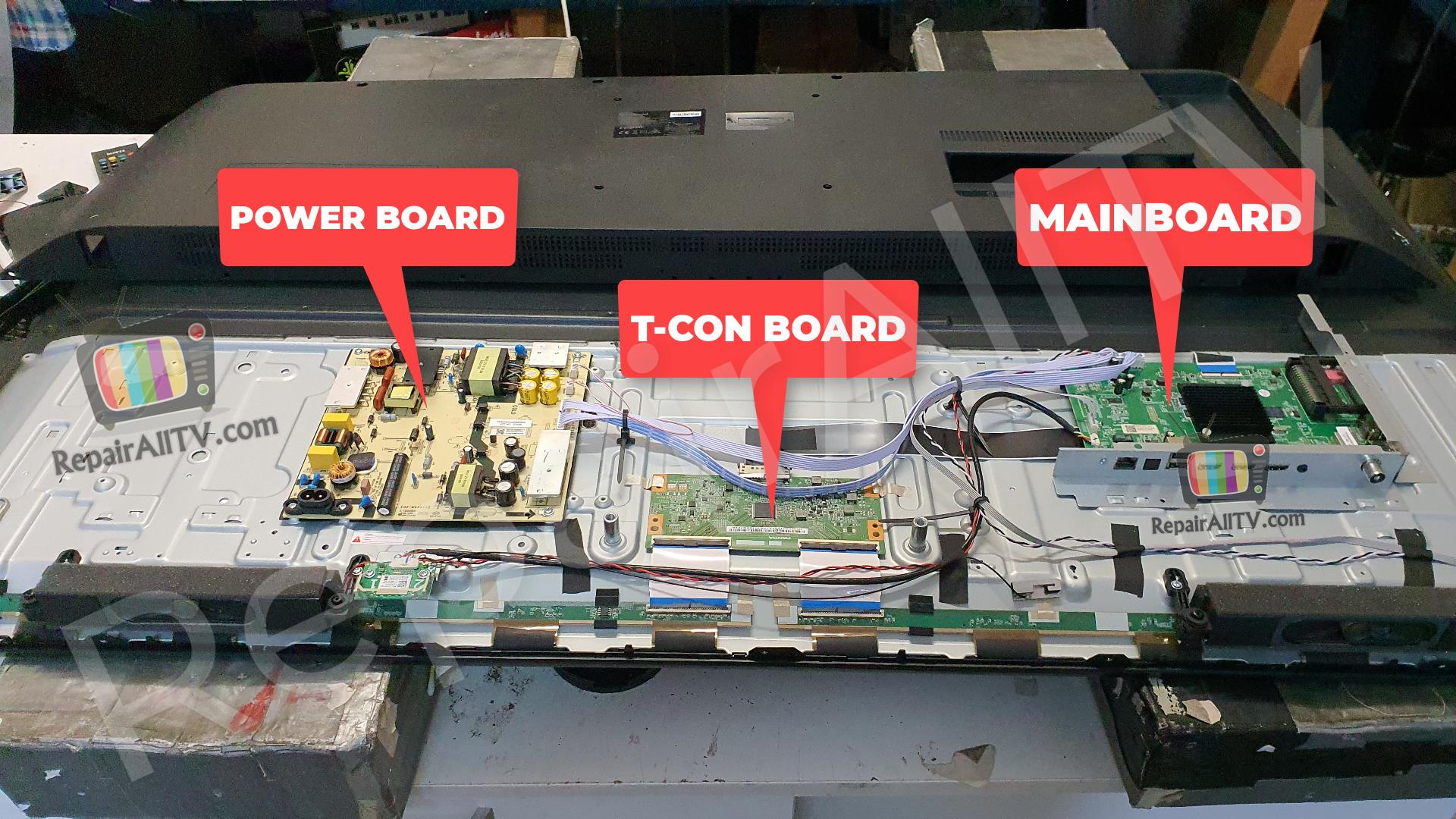

POWER BOARD MAIN BOARD T-CON BOARD
![MAINBOARD](https://repairalltv.com/wp-content/uploads/2021/10/MAINBOARD-300x169.jpg)
MAINBOARD
![MODEL MAIN BOARD MS68860 ZC01 01 1](https://repairalltv.com/wp-content/uploads/2021/10/MODEL-MAIN-BOARD-MS68860-ZC01-01-1-300x169.jpg)

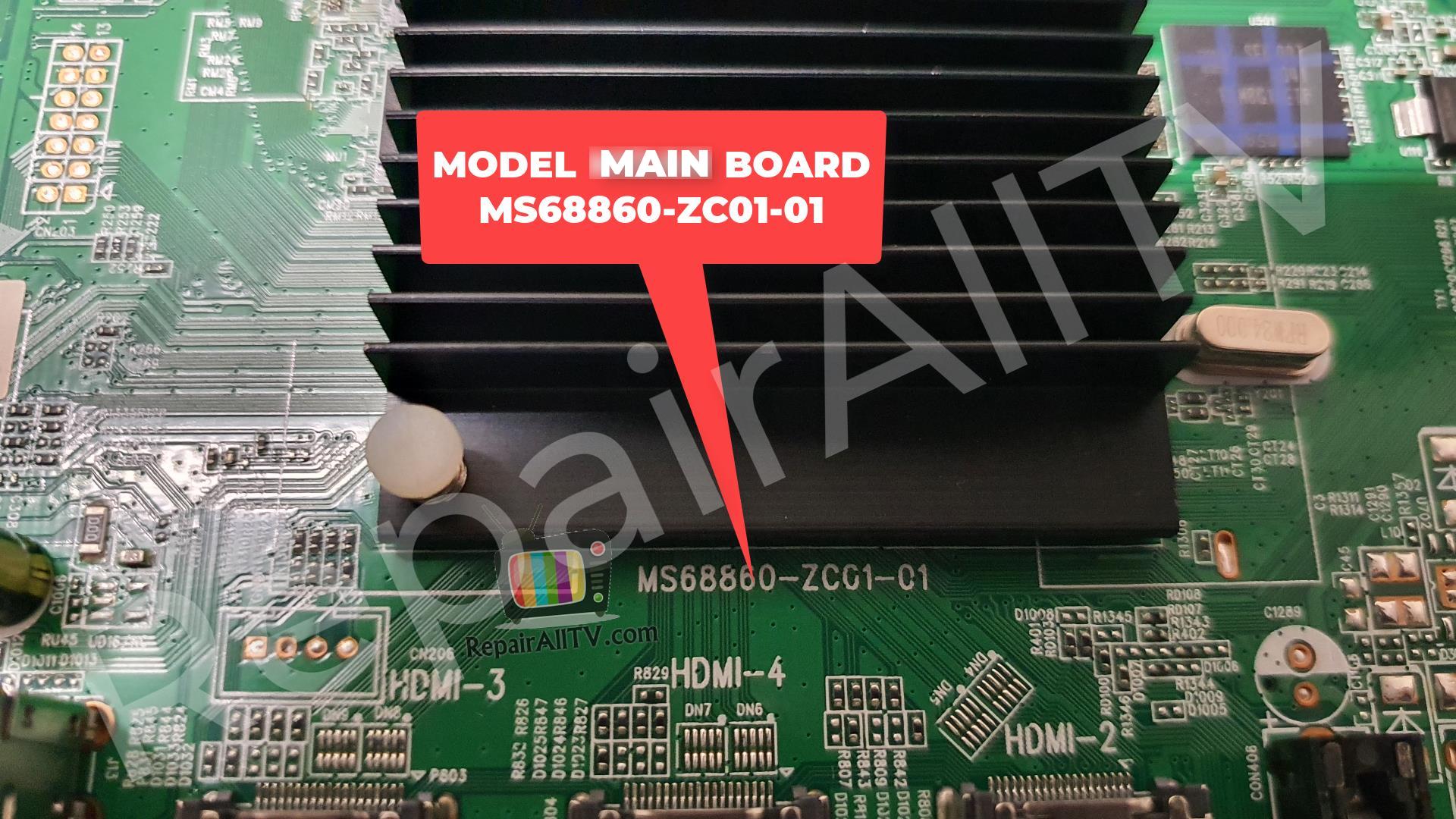

MODEL MAIN BOARD MS68860-ZC01-01
to see EMMC pinout photo as well as to download EMMC BIN Firmware. you must subscribe
![ISP PROGRAMMER TNM500 READ EMMC](https://repairalltv.com/wp-content/uploads/2021/10/ISP-PROGRAMMER-TNM500-READ-EMMC-150x150.jpg)
![EMMC PINOUT](https://repairalltv.com/wp-content/uploads/2021/10/EMMC-PINOUT-300x169.jpg)
ISP PROGRAMMER TNM500 READ EMMC
READ EMMC SPI PINOUT
![ISP PIN READ EMMC TNM 5000](https://repairalltv.com/wp-content/uploads/2020/10/pin-isp-wire-EMMC-read-all-300x146.png)
TNM5000 ISP READ EMMC
![ISP CABLE EMMC PIN](https://repairalltv.com/wp-content/uploads/2020/10/ISP-CABLE-EMMC-PIN-300x150.png)
ISP INFO READ EMMC PROGRAMMER TNM5000 READ EMMC BOARD MS68860-ZC01-01
Programmer ISP Cable EMMC pin
ISP PIN 1 CMD
ISP PIN 3 RST-n(Reset) (mandatory)
ISP PIN 5 CLK (Clock)
ISP PIN 6 DAT0
ISP PIN 8, 10 VSS (GND)
Vcc of Chip Must be ON. Reset is needed only when circuit reset is not working.
Note 1: After Selecting EMMC, programmer will be switched to Report view.
because EMMC files are too large and can’t be viewed by hex editor.
you can switch back to hex editor by unmarking the report button.
Note 2: Load & Save buttons has no use in EMMC nand. you must select filename
after pressing read or program buttons. File will be saved automatically with
Boot 1, Boot 2, RPMB, EXT_CSD extensions for different parts of the chip.
Note 3: After pressing read or Program, EMMC size and type will automatically
be Detected
Note 4 : Use Config Window for selecting Different Parts of the chip for read and write.
Also, chip Size and name is read from the chip and can be viewed in this window.
Note 5: Erase is for total chip erase. before Programming Each part, Programmer
will erase it automatically, so no need for chip erase before program.
Note 6: Only First 192 byte of EXT_CSD is writable by users and Some of these bytes
are read-only and some parts are one-time programable so if you write over these areas,
you get Write error.
Note 7: in most cases, Reset Pin is not necessory, Power on/off the device for reset
to see EMMC pinout photo as well as to download EMMC BIN Firmware. you must subscribe
EMMC PINOUT
![read emmc programmer RT809H ISP](https://repairalltv.com/wp-content/uploads/2021/10/read-emmc-programmer-RT809H-ISP-150x150.jpg)
PROGRAMMER RT809H ISP READ EMMC
![ISP PROGRAMMER RT809H](https://repairalltv.com/wp-content/uploads/2021/01/ISP-PROGRAMMER-RT809H-300x248.jpg)
![MODEL PANEL LC546PU3L02](https://repairalltv.com/wp-content/uploads/2021/10/MODEL-PANEL-LC546PU3L02-300x169.jpg)
MODEL PANEL LC546PU3L02
join part1 and part2 as in the image below
👇👇
![EMMC NIN](https://repairalltv.com/wp-content/uploads/2021/10/EMMC-NIN-300x223.jpg)
.
KLM8G1GETF-B041 part1
1 file(s) 1 GB
downloads are by subscription
Please (Subscription, for download)
.
KLM8G1GETF-B041 part2
1 file(s) 1 GB
downloads are by subscription
Please (Subscription, for download)
