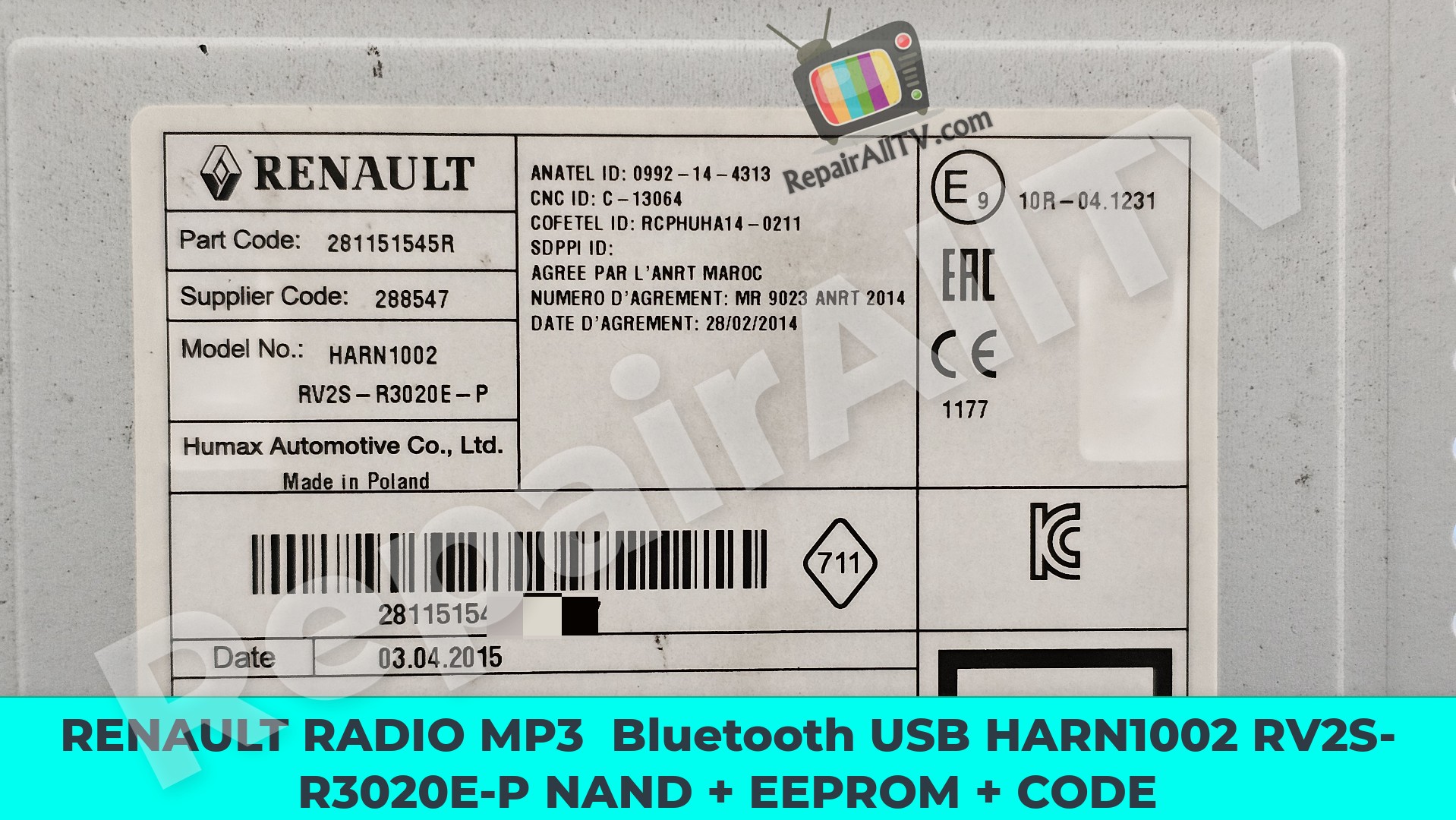

renault radio harn1002 rv2s-r3020e-p c300e 3151-00032 rev1 code RENAULT radio HARN1002 RV2S-R3020E-P C300E 3151-00032 REV1 CODE

RENAULT RADIO MP3 Bluetooth USB HARN1002 RV2S-R3020E-P NADN + EEPROM. BOARD C300E 3151-00032 REV1

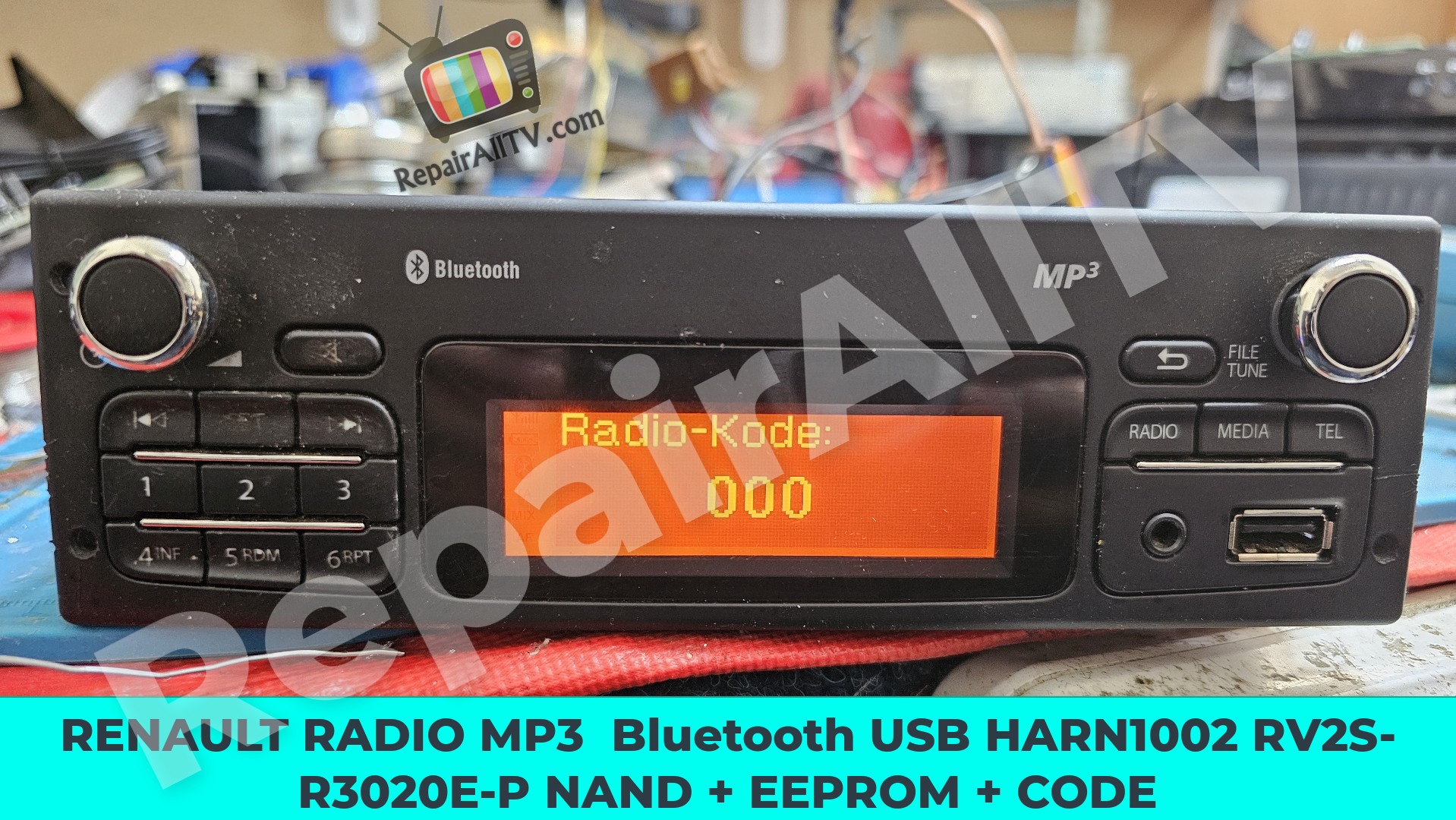

we have radio code serial number for this radio mode. write to us to get the radio code in the comment

RENAULT RADIO MP3 Bluetooth USB HARN1002 RV2S-R3020E-P CODE

BOARD RV2S-C300E 3151-00032 REV1.0 NADN + EEPROM

---

after subscribing you can see the 12v+ connector in the picture

pins detect wires connector 12V+

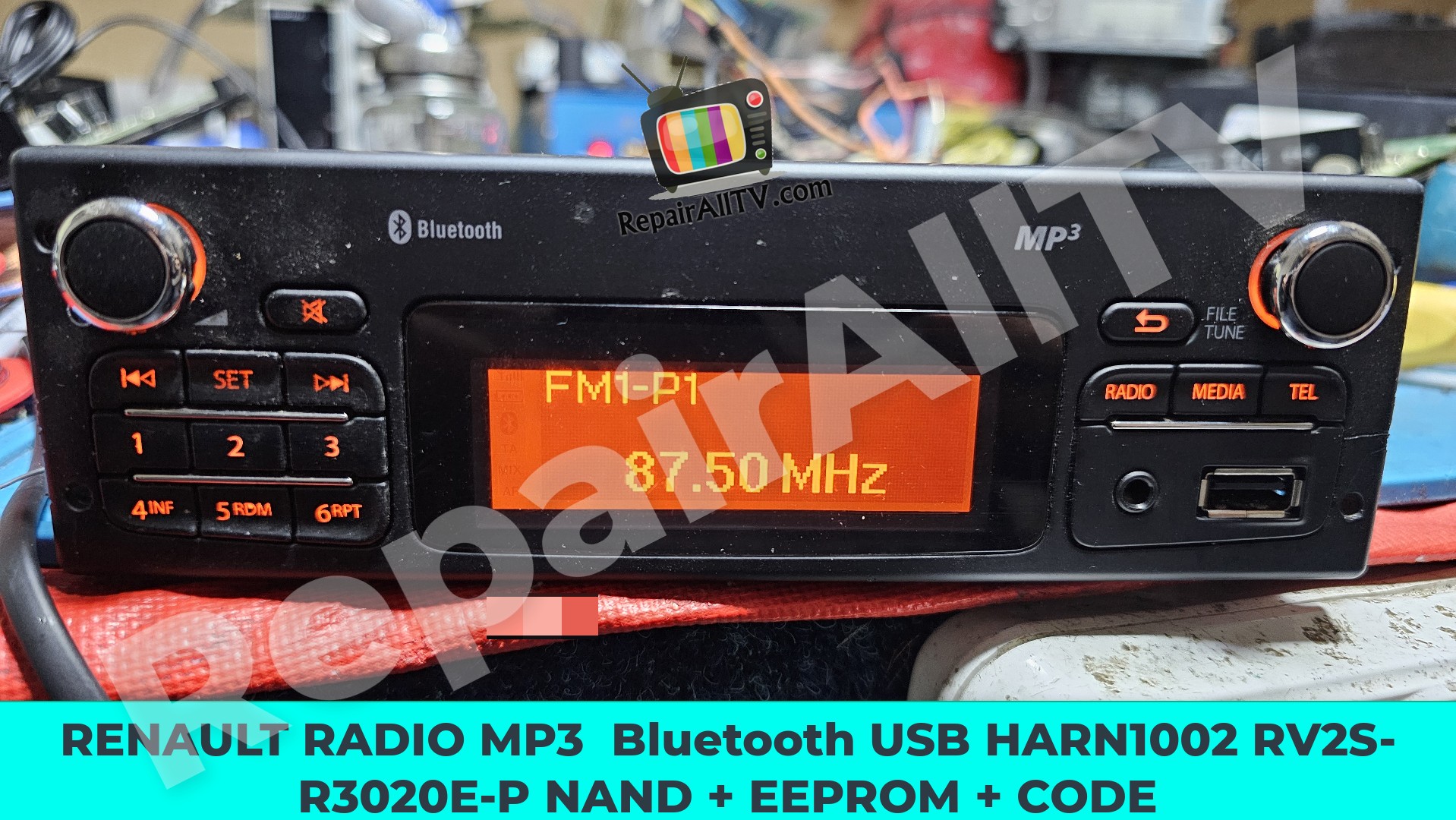

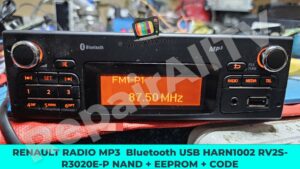

radio. working

we have radio code serial number for this radio mode. write to us to get the radio code in the comment

My channel YouTube RepairAllTV

---

DUMP EMMC NAND EEPROM
Important notes: The files we make available on this website are backup copies of device firmware that were fully operational at the time of copying.
We always try to refer to the technical data of the device, however we inform you that there may be some incompatibility with your device, even if it is the same model.
Firmware is generally fully compatible, but users should be aware that there is a possibility of incompatibility.

You need an programmer to write this dump to the chip.
Please remember to back up your firmware to restore in case of any errors or incompatibilities.

---

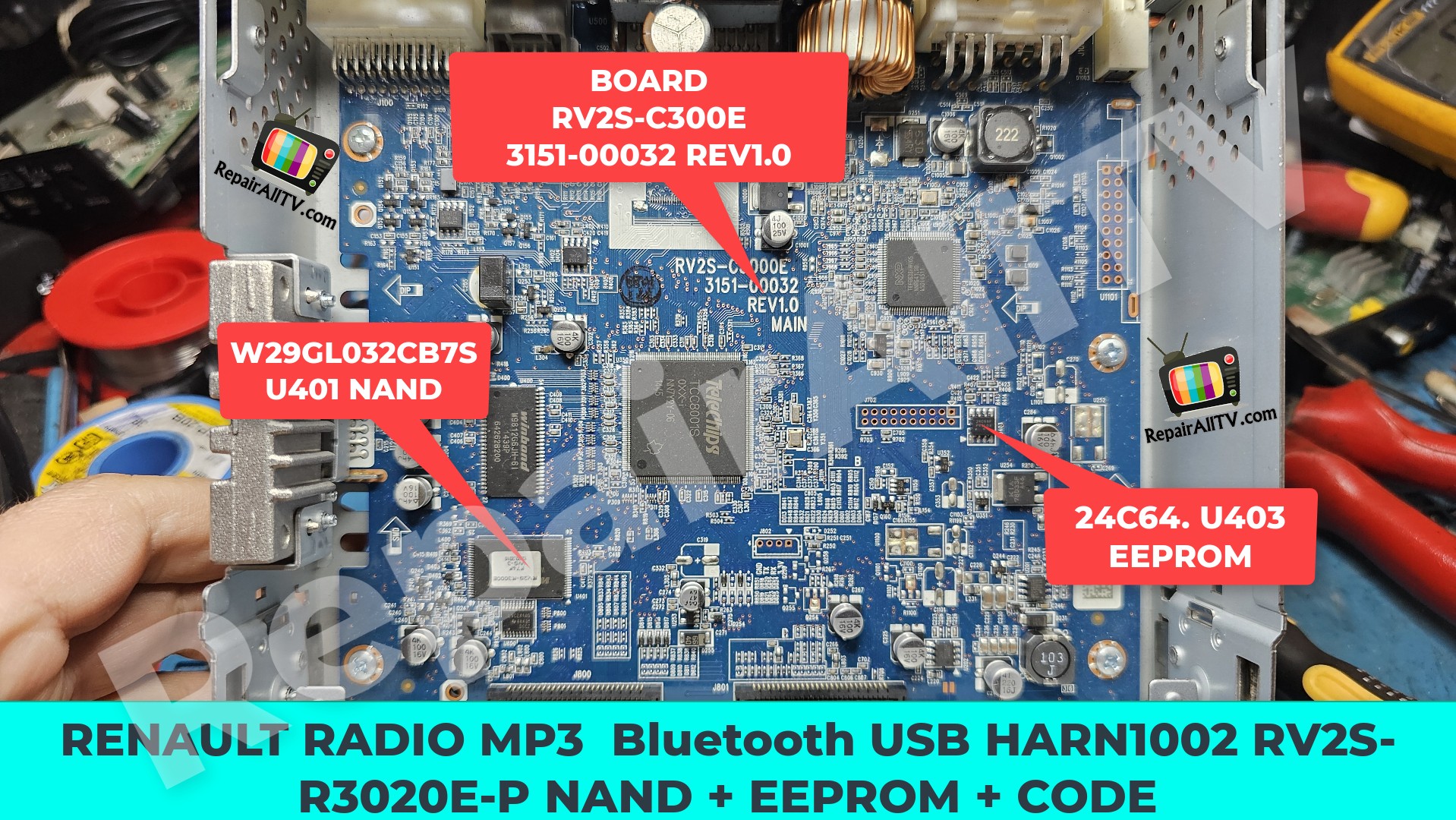

RENAUL RADIO MODEL HARN1002 RV2S-R3020E-P

---

BOARD RV2S-C300E 3151-00032 REV1.0

---

NAND W29GL032CB7S Size: 4.00 MB

---

EEPROM 24C64 Size: 8.00 KB

---

READ NAND PROGRAMMER TNM5000 AND RT809H

---
