samsung ue43ru7172u TV turns on and off every 15 seconds

Share post with Friends

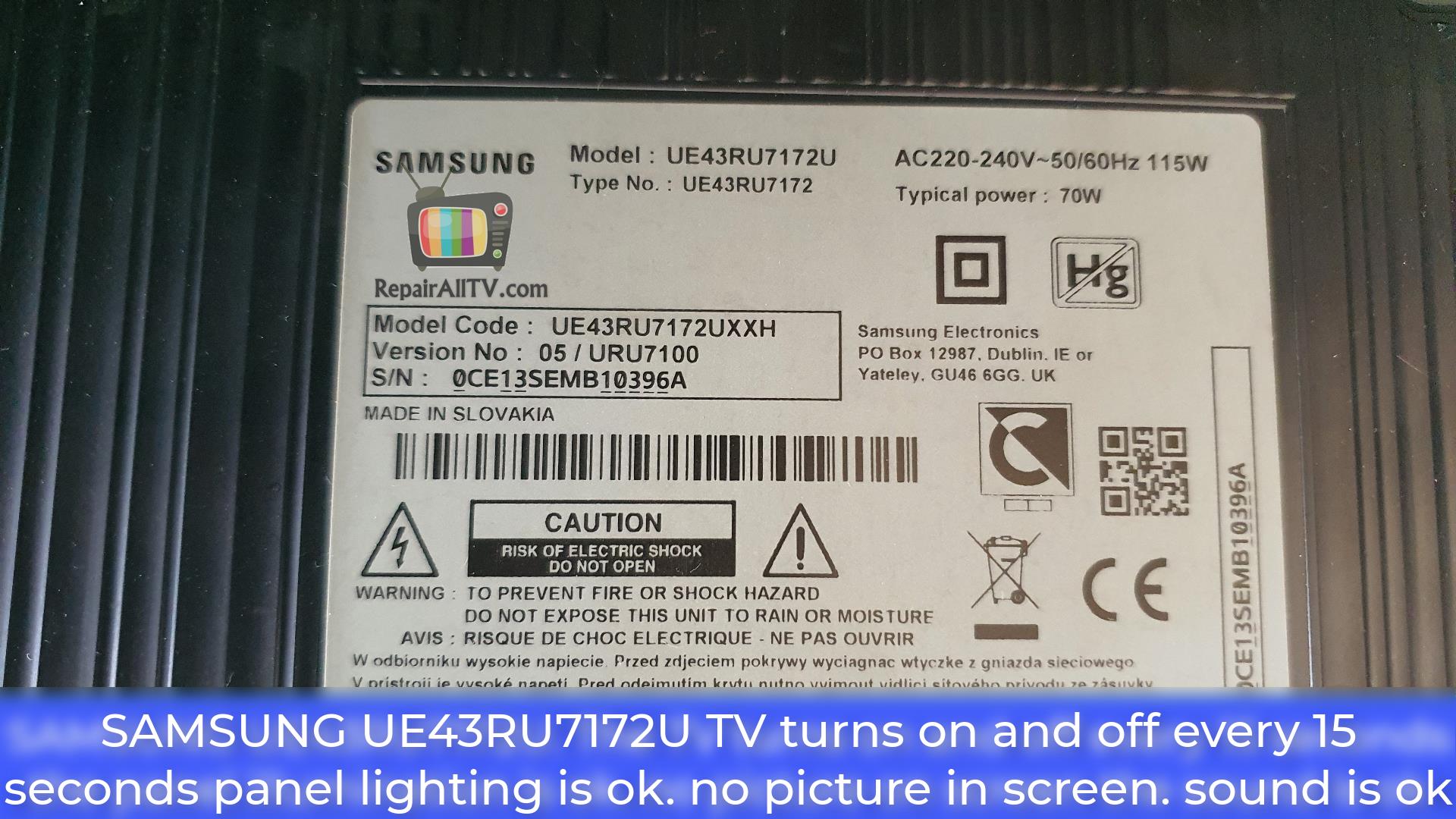

samsung ue43ru7172u TV turns on and off every 15 seconds panel lighting is ok. no picture in screen. sound is ok

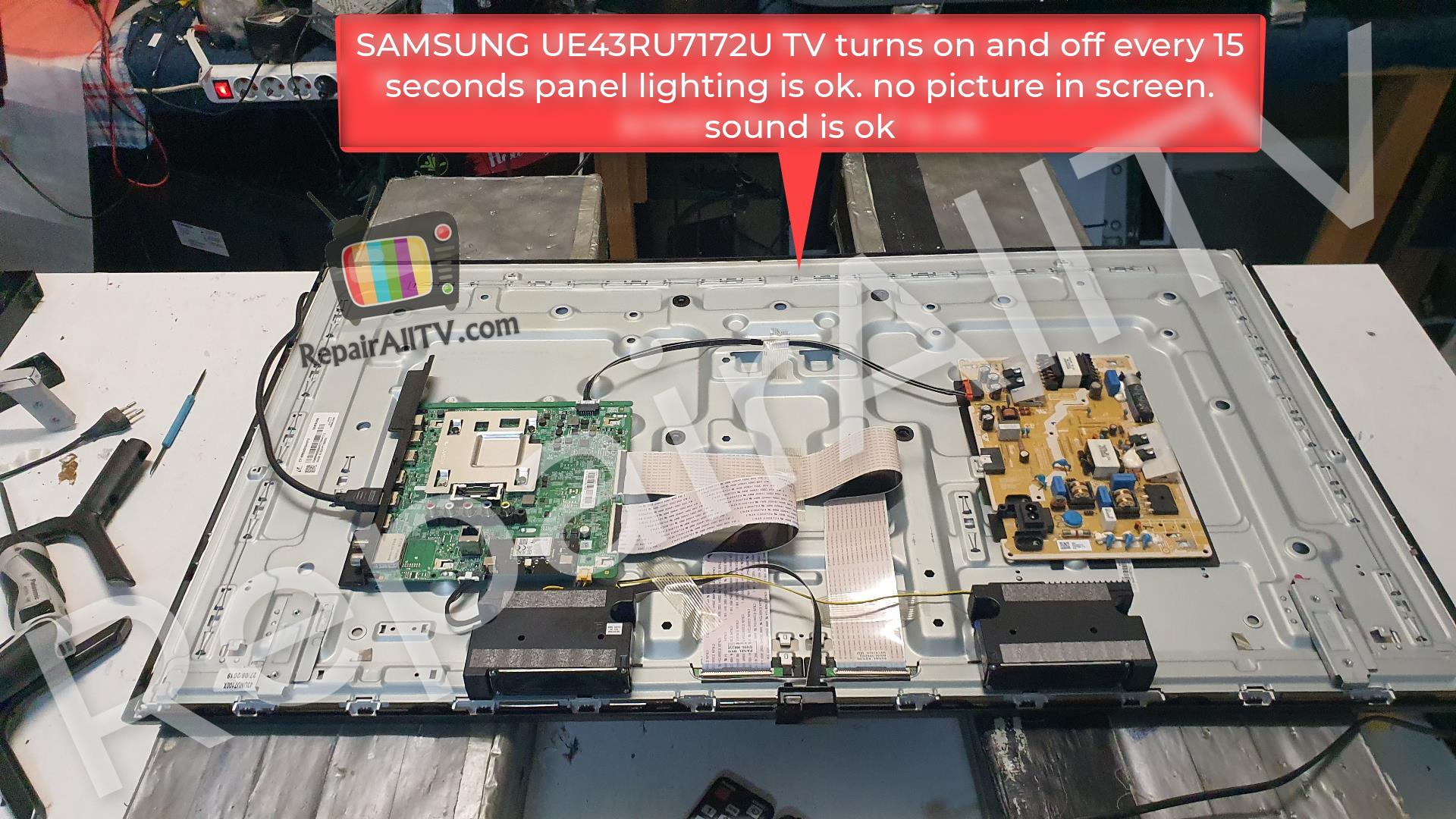

samsung ue43ru7172u TV turns on and off every 15 seconds panel lighting is ok. no picture in screen. sound is ok

no image tv, TV turns on and off every 15 seconds panel lighting is ok. no picture in screen. sound is ok

HERE Ribbon Cable

cover 10 lines ok

cover 10 lines

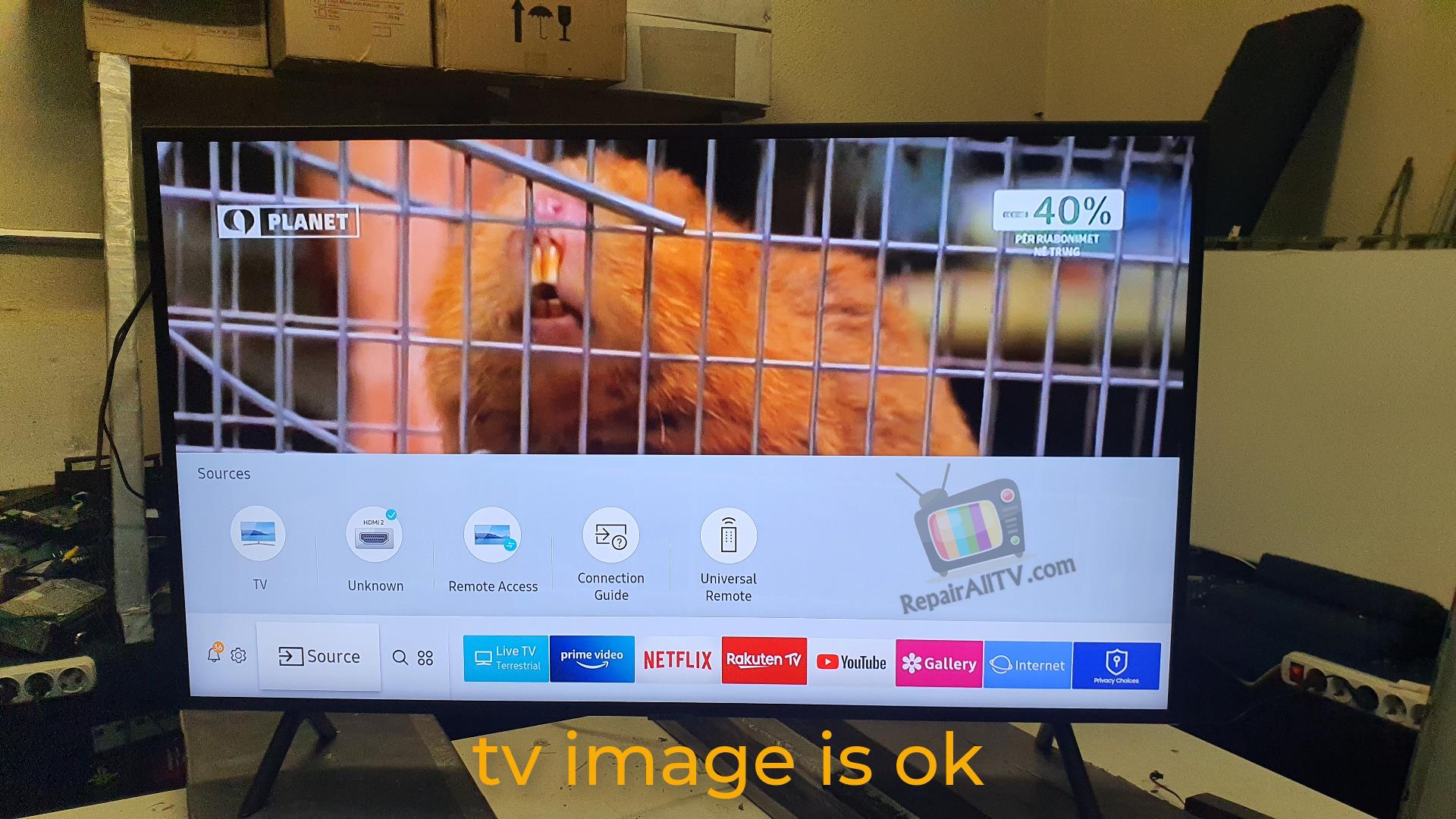

tv image is ok

CY-NN043HGHV1V

for more watch the video below

also a tv the same problem this tv is 55 inch, SAMSUNG UE55NU7170U video

15 comments

You May Also Like

PHILIPS 715g5677-m01-00-004k repair mainboard change Chipset MT5580CP01

SAMSUNG 4K on the tv screen. but every 3-4 seconds lines appear on the screen flickering

SAMSUNG TV turns on and off every 20 seconds program NAND

LG TV is left only in logo tv does not start emmc firmware problem EAX65384004

5 3 votes
Article Rating
guest

15 Comments
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
theo
theo
3 years ago

hi i have the same tv ans same problem. i also put tape on as you showed and it then gos on but blank screen with glow of backlights. what els can i try. thanx

0
Reply
View Replies (1)
Bertrand Gex
Bertrand Gex
3 years ago

Hi,
I have the same problem with a samsung frame with a One connect box.
Any idea to fix it?
Best
Bertrand

0
Reply
View Replies (2)
moein
moein
3 years ago

hi i have the 50au8000 tv and same problem. i also put tape on as you showed and it then gos on but blank screen with glow of backlights. what els can i try. thanx

0
Reply
Michal
Michal
3 years ago

Hi. It did the trick for EU50RU7102K. Many thanks!

1
Reply
David
David
3 years ago

This worked for me but on the other ribbon cable from the opposite end so thanks so much. What are we blanking off when we put the electrical tape on? Also my TV was a Samsung 4K QLED Q70R.

0
Reply
John Pourier
John Pourier
3 years ago

I have the same problem. My tv was only 2 weeks old and this happened. But since I won it on a raffle drawing at a Casino the warrenty wouldn’t cover it. But it’s a UN75RU8000. DOES ANYONE know anything thing about this Tv. I changed the main board but still does what it does.

1
Reply
John Pourier
John Pourier
3 years ago

It’s a $2,200 Dollar tv. When I put the tape on it it stops turning off so the screen is lite up and has sound but no picture.

0
Reply
View Replies (1)
Phinz
Phinz
2 years ago

Hi, I got a Samsung QE55Q60RAT and this worked fantastic!
The difference with my tv was that I needed to cover a few pins on the other ribbon cable. It was just a matter of moving the little piece of tape from one side to the other until it started up with a clear picture. Thanks for this video!

1
Reply
View Replies (1)
Hillary
Hillary
2 years ago

Hello,

I counted the twenty lines, then covered the next 10. The power and backlight are staying on, but I have no picture. Can you suggest what to do, please? I will pay you via cashapp or paypal for your assistance. Thank you!

0
Reply
View Replies (1)
