sony kd-65xe9005 1-982-022-31 emmc firmware dump SONY KD-65XE9005 1-982-022-31 EMMC FIRMWARE DUMP

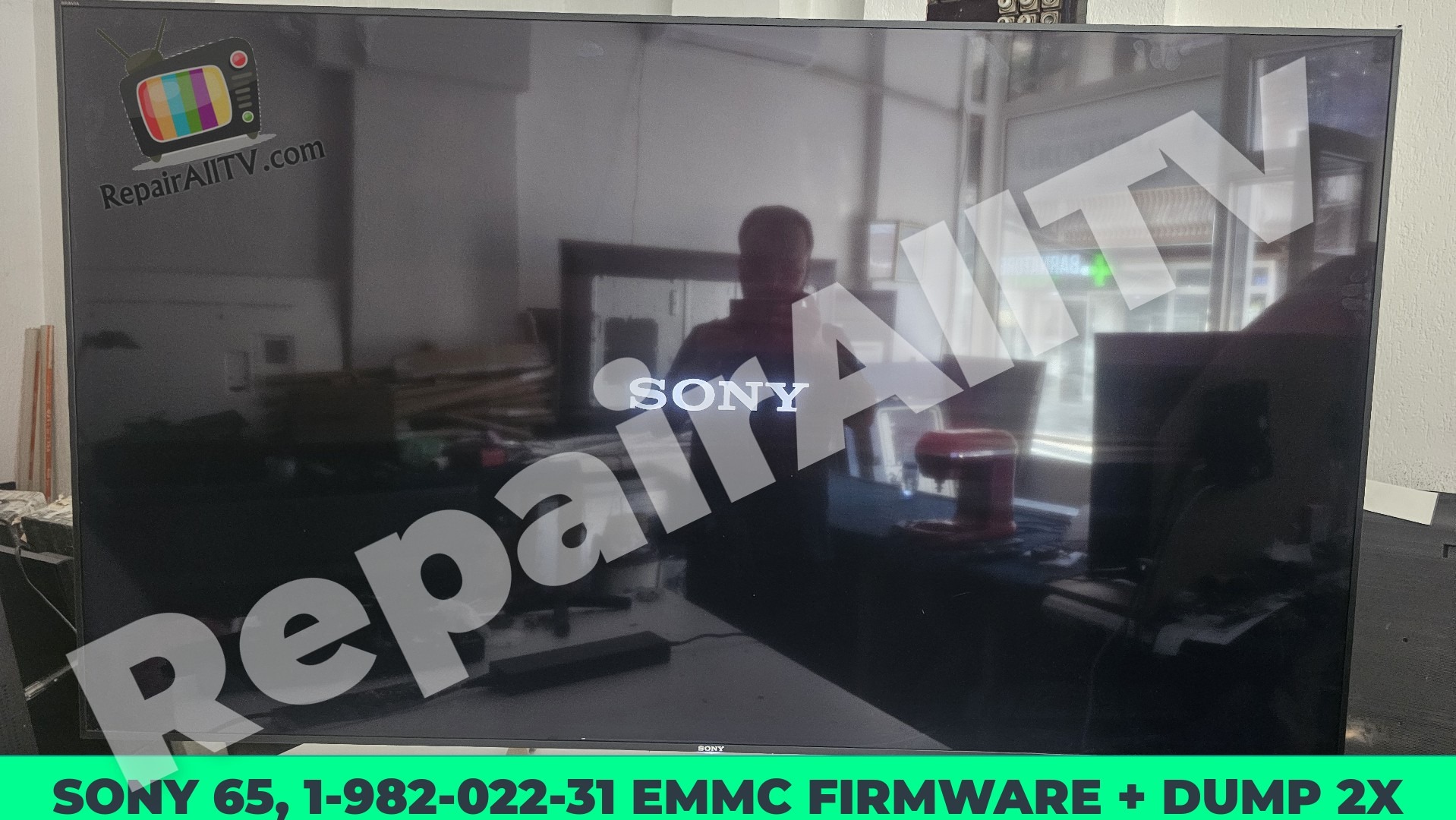

SONY KD-65XE9005

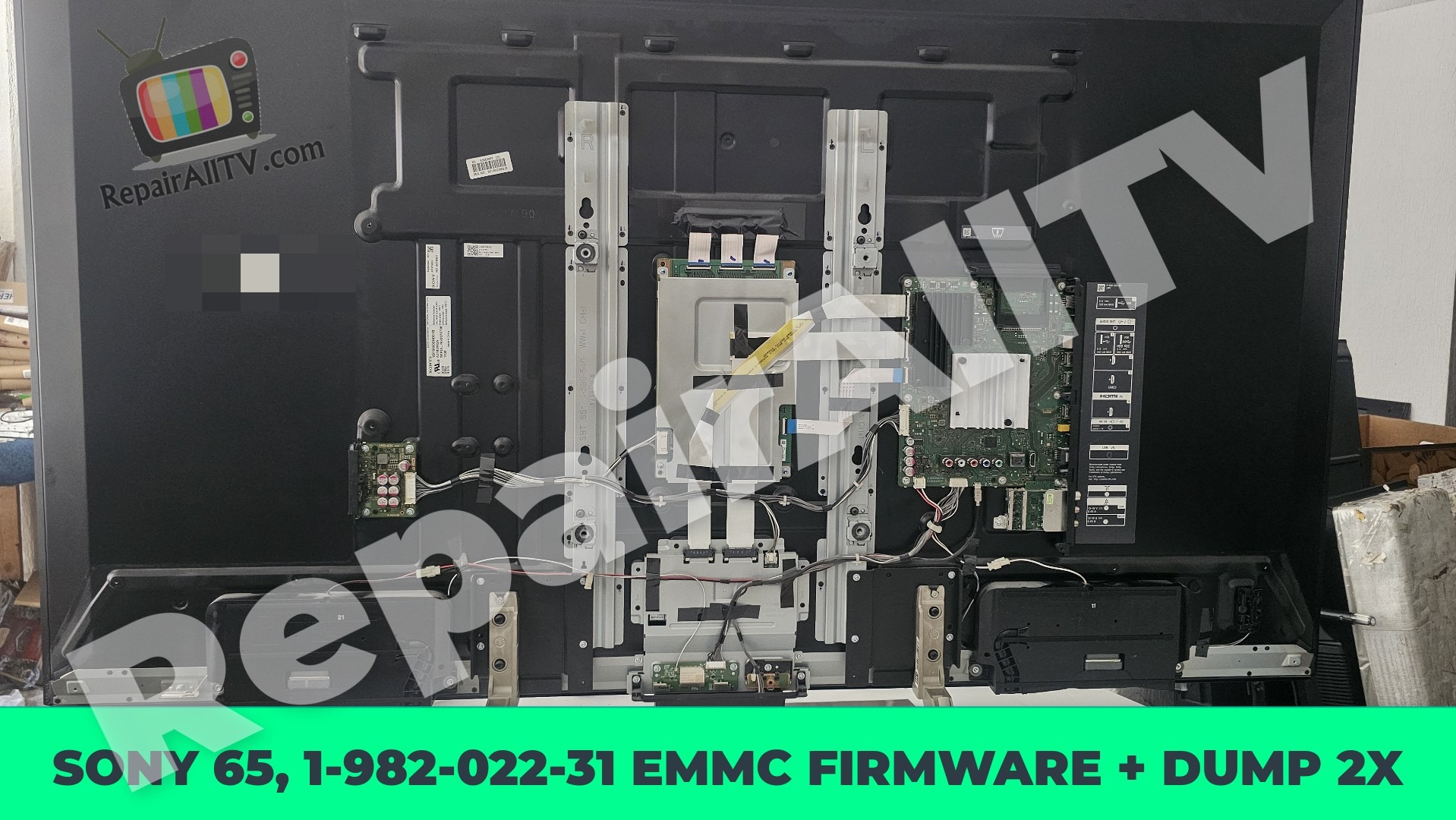

SONY KD-65XE9005 1-982-022-31

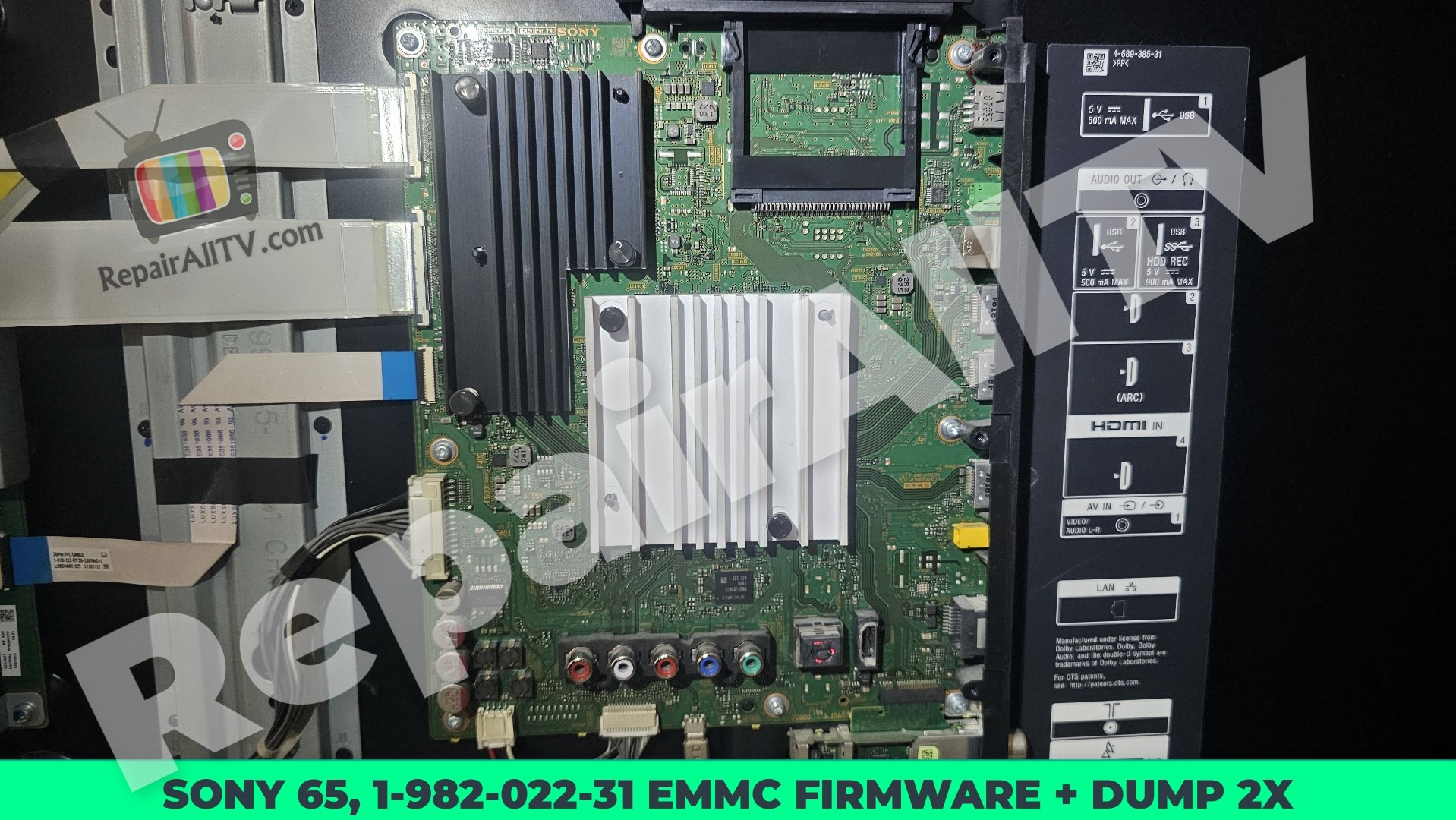

main board 1-982-022-31
To view the EMMC pinout picture, as well as to download the EMMC BIN Firmware, you must have a. subscription package.
Programmer ISP Cable EMMC pin
ISP PIN 1 CMD
ISP PIN 3 RST-n(Reset) (mandatory)
ISP PIN 5 CLK (Clock)
ISP PIN 6 DAT0
ISP PIN 8, 10 VSS (GND)
Vcc of Chip Must be ON. Reset is needed only when circuit reset is not working.
PROGRAMMER TNM5000 ISP EMMC 1-982-022-31
PROGRAMMER TNM5000 ISP EMMC
PROGRAMMER RT809H XGeeu T56 ISP EMMC 1-982-022-31

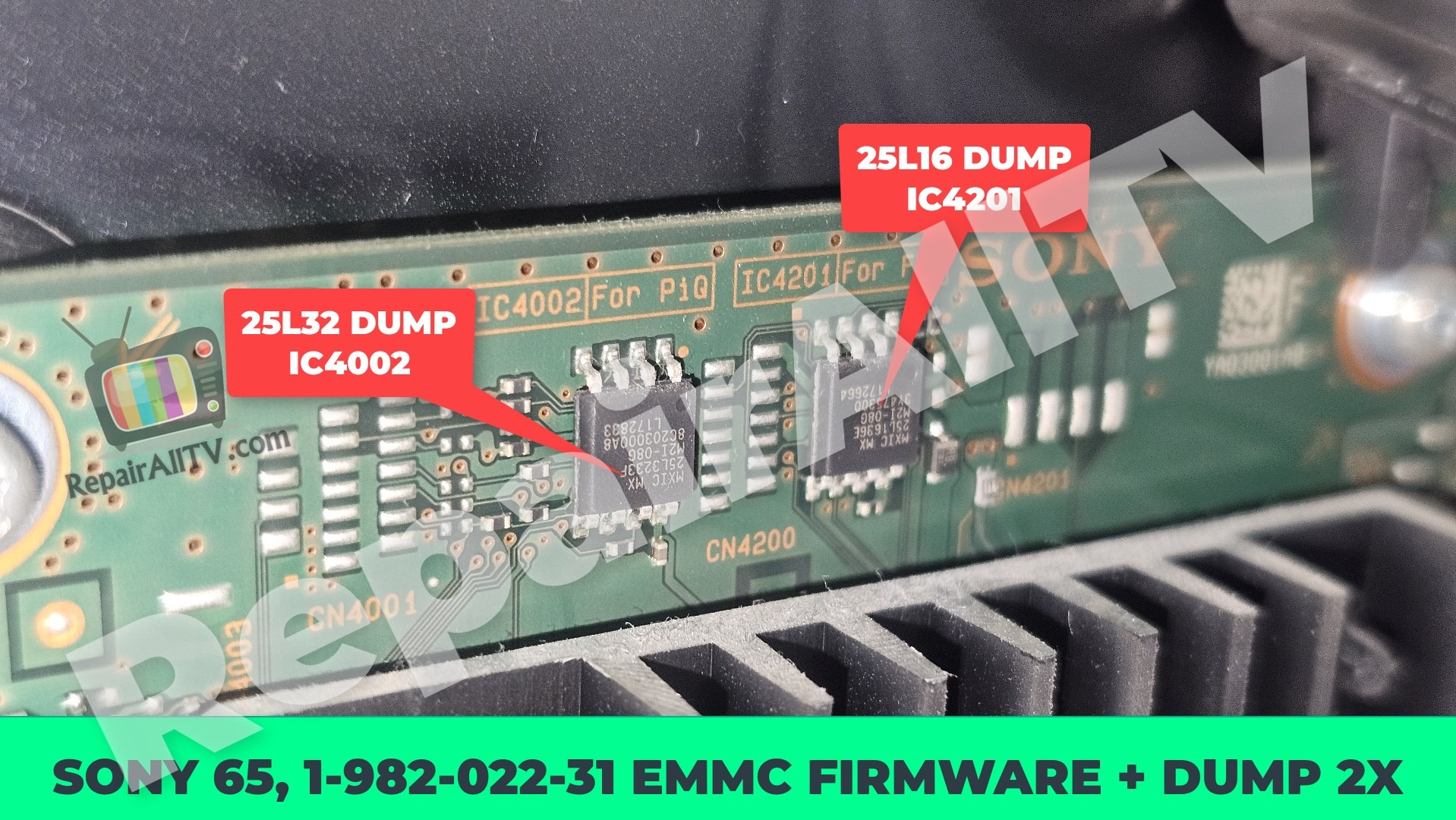

25L32 IC4002, 25L16 IC4201, DUMP 2X

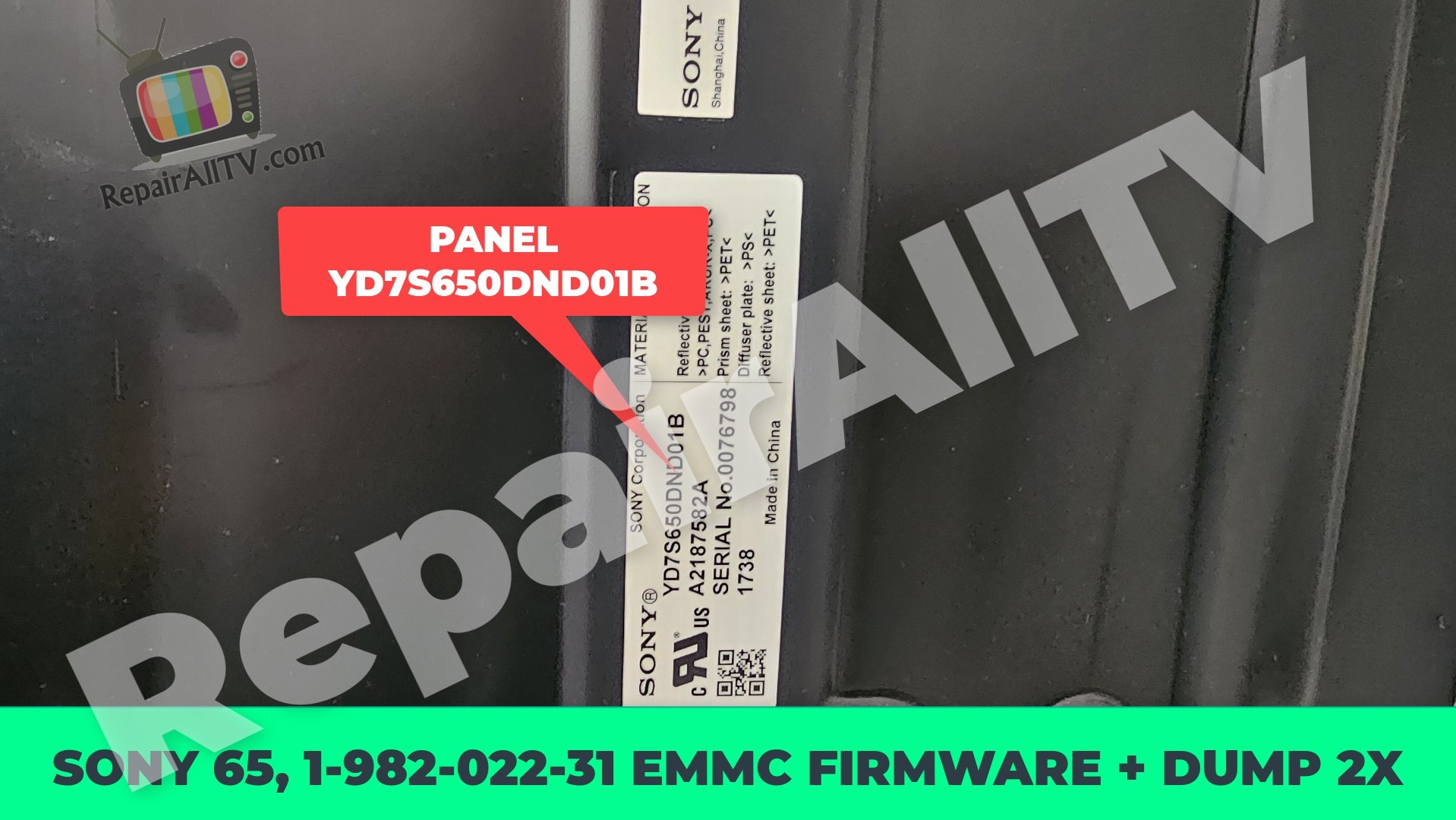

PANEL YD7S650DND01B

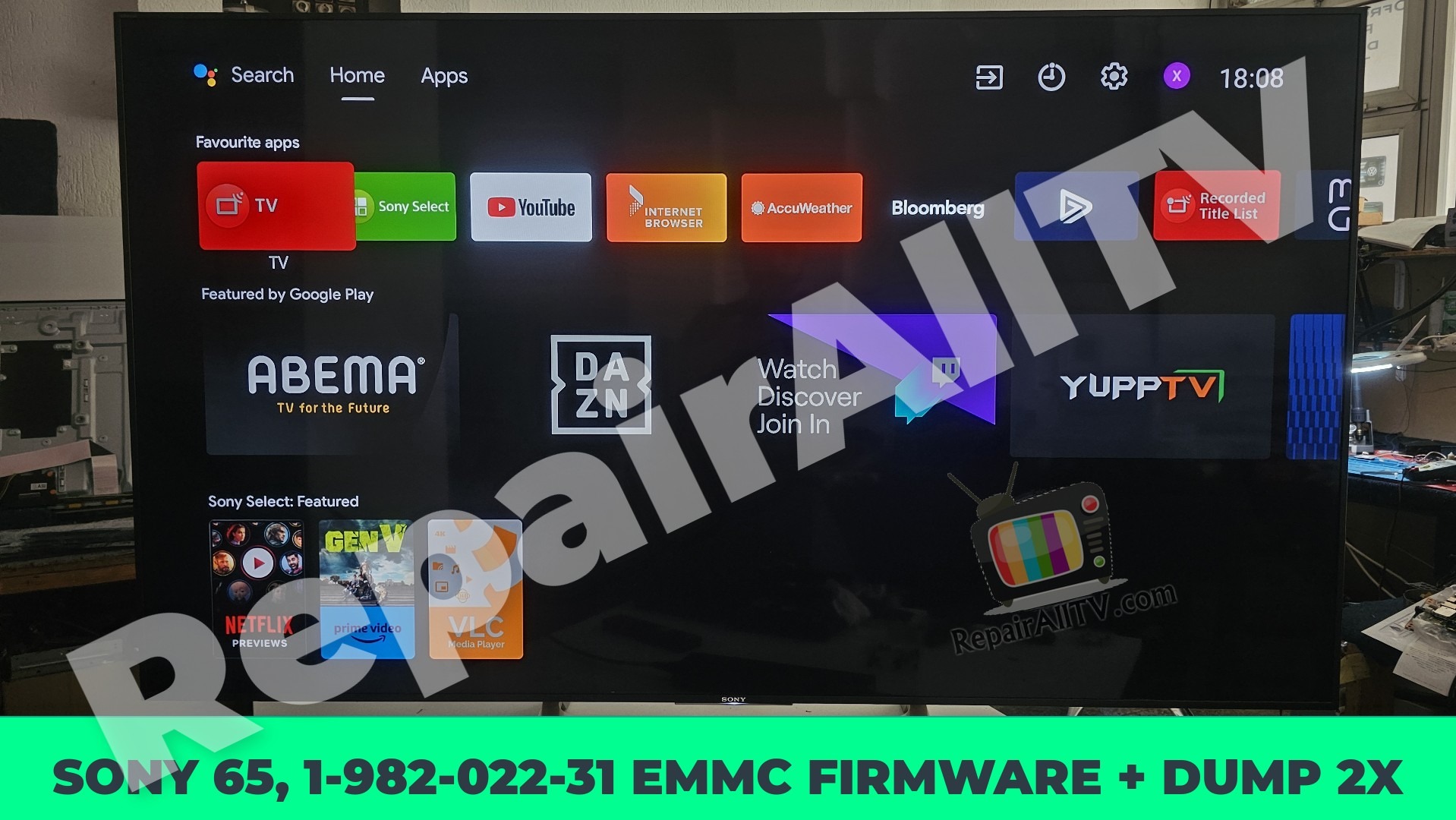

TV working
My channel YouTube video RepairAllTV
DUMP EMMC NAND EEPROM
Important notes: The files we make available on this website are backup copies of device firmware that were fully operational at the time of copying.
We always try to refer to the technical data of the device, however we inform you that there may be some incompatibility with your device, even if it is the same model.
Firmware is generally fully compatible, but users should be aware that there is a possibility of incompatibility.
You need an programmer to write this dump to the chip.
Please remember to back up your firmware to restore in case of any errors or incompatibilities.
SONY KD-65XE9005 1-982-022-31 EMMC FIRMWARE DUMP
SONY MODEL KD-65XE9005
MAIN BOARD 1-982-022-31
EMMC KLMAG1JENB-B041 Size: 14.50 GB
DUMP 2X, 25L32 IC4002. 25L16 IC4201.
PANEL YD7S650DND01B
READ EMMC PROGRAMMER TNM5000/RT809H AND XGeeu T56 UFPI
attention. first unzip (part 2.) then part 1
