TELEFUNKEN 39HE5010N 17MB181TC EMMC VESTEL
telefunken 39he5010n 17mb181tc emmc vestel TELEFUNKEN 39HE5010N 17MB181TC EMMC VESTEL

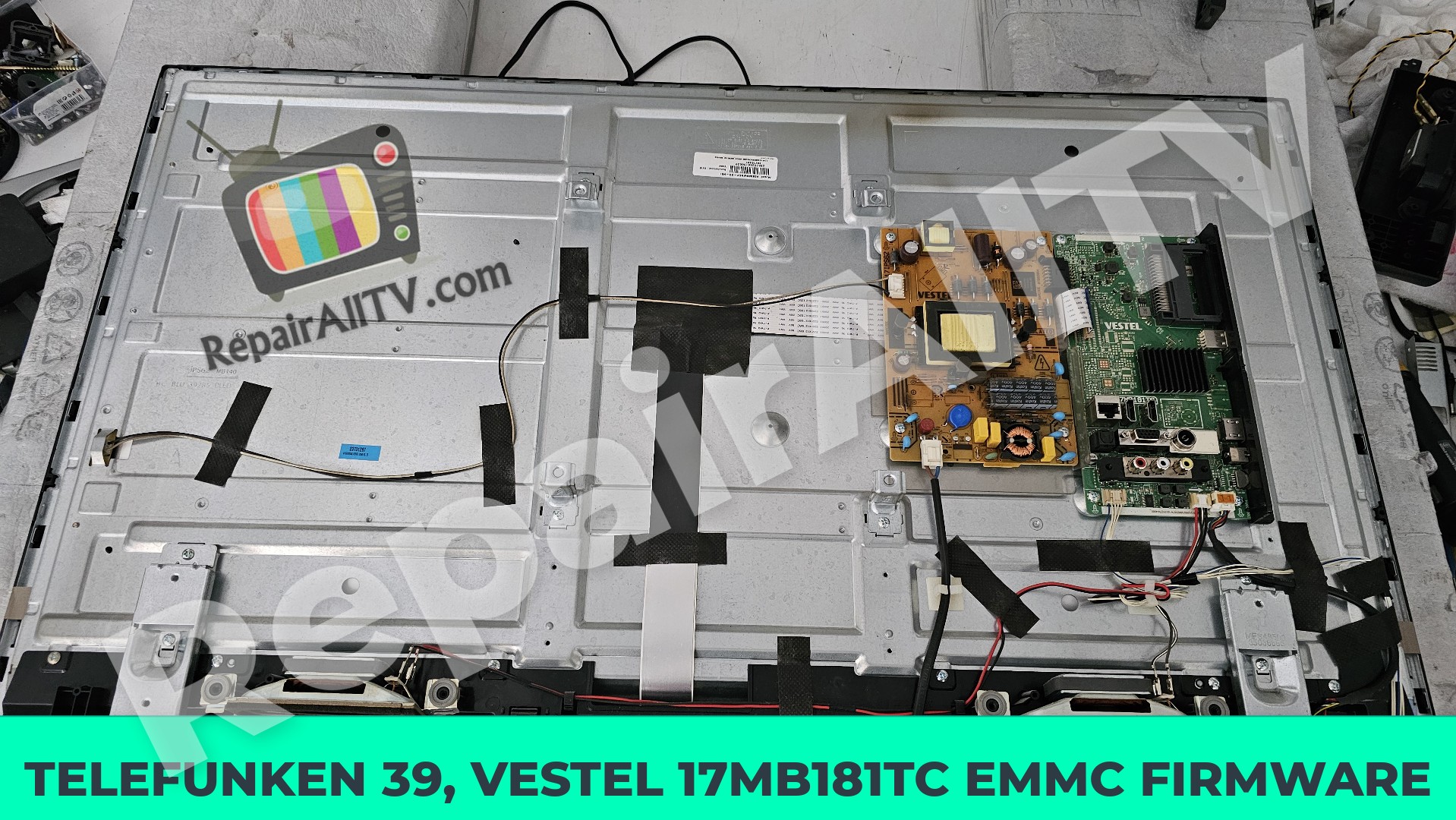

VESTEL MAIN BOARD POWER BOARD

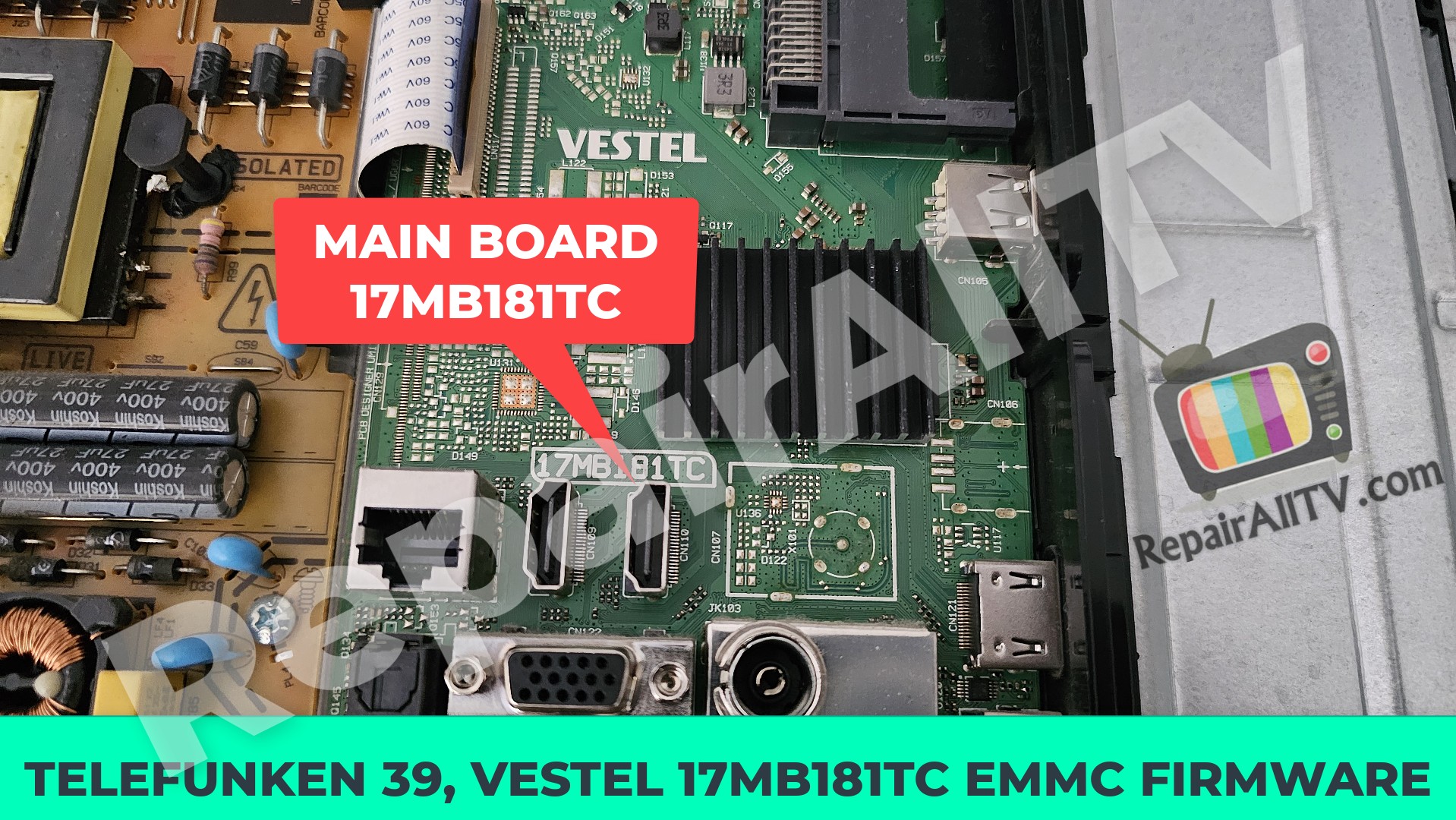

MAIN BOARD 17MB181TC
ISP INFO READ EMMC PROGRAMMER TNM5000 READ EMMC BOARD 17MB181TC
Programmer ISP Cable EMMC pin ISP PIN 1 CMD ISP PIN 3 RST-n(Reset) (mandatory) ISP PIN 5 CLK (Clock) ISP PIN 6 DAT0 ISP PIN 8, 10 VSS (GND) Vcc of Chip Must be ON. Reset is needed only when circuit reset is not working.
emmc pinout
to see EMMC pinout photo as well as to download EMMC BIN Firmware. you must subscribe
PROGRAMMER RT809H AND XGecu T56 ISP EMMC

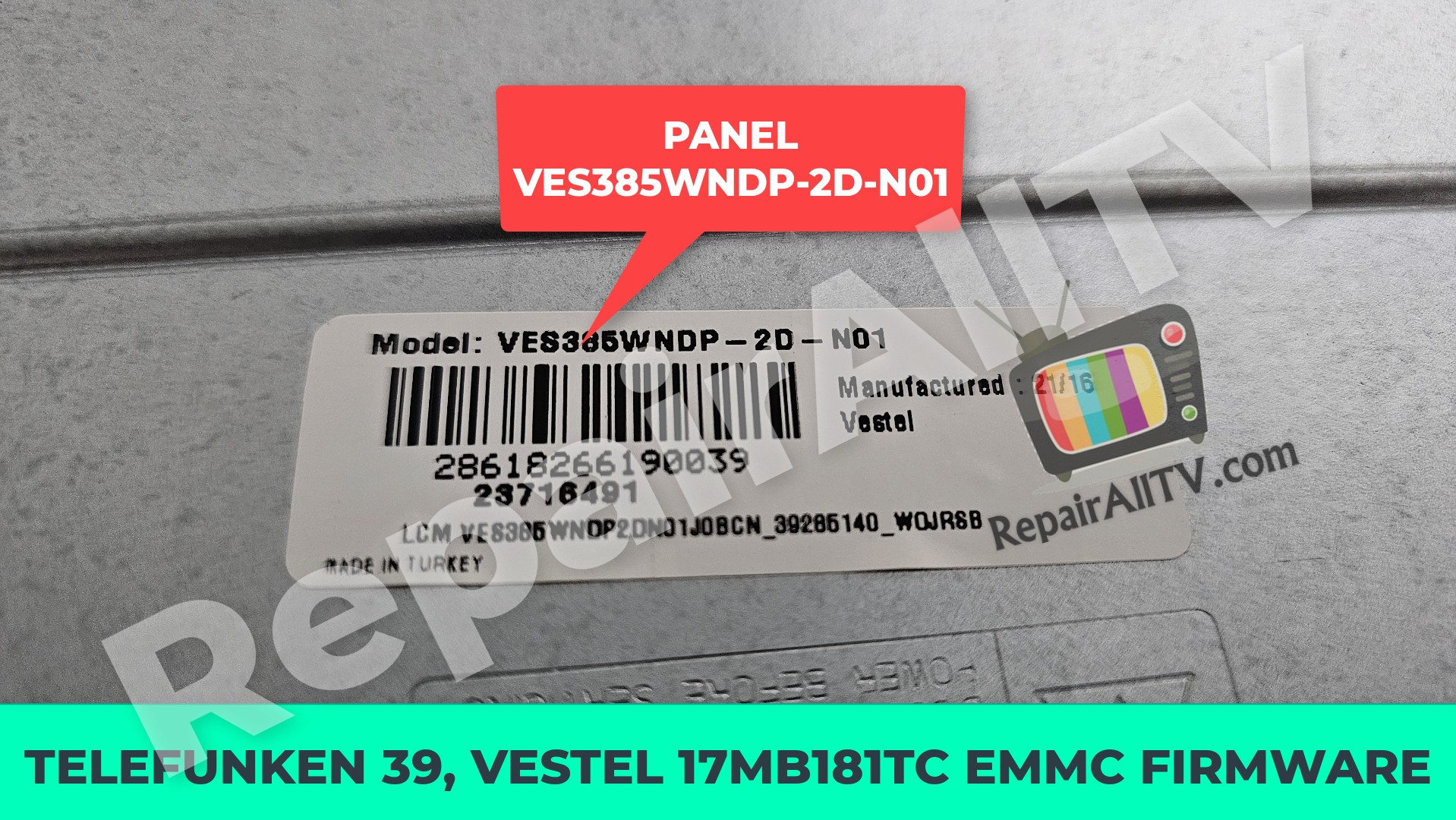

PANEL VES385WNDP-2D-N01
My channel YouTube RepairAllTV
TiVo
DUMP EMMC NAND EEPROM
Important notes: The files we make available on this website are backup copies of device firmware that were fully operational at the time of copying.
We always try to refer to the technical data of the device, however we inform you that there may be some incompatibility with your device, even if it is the same model.
Firmware is generally fully compatible, but users should be aware that there is a possibility of incompatibility.
You need an programmer to write this dump to the chip.
Please remember to back up your firmware to restore in case of any errors or incompatibilities.

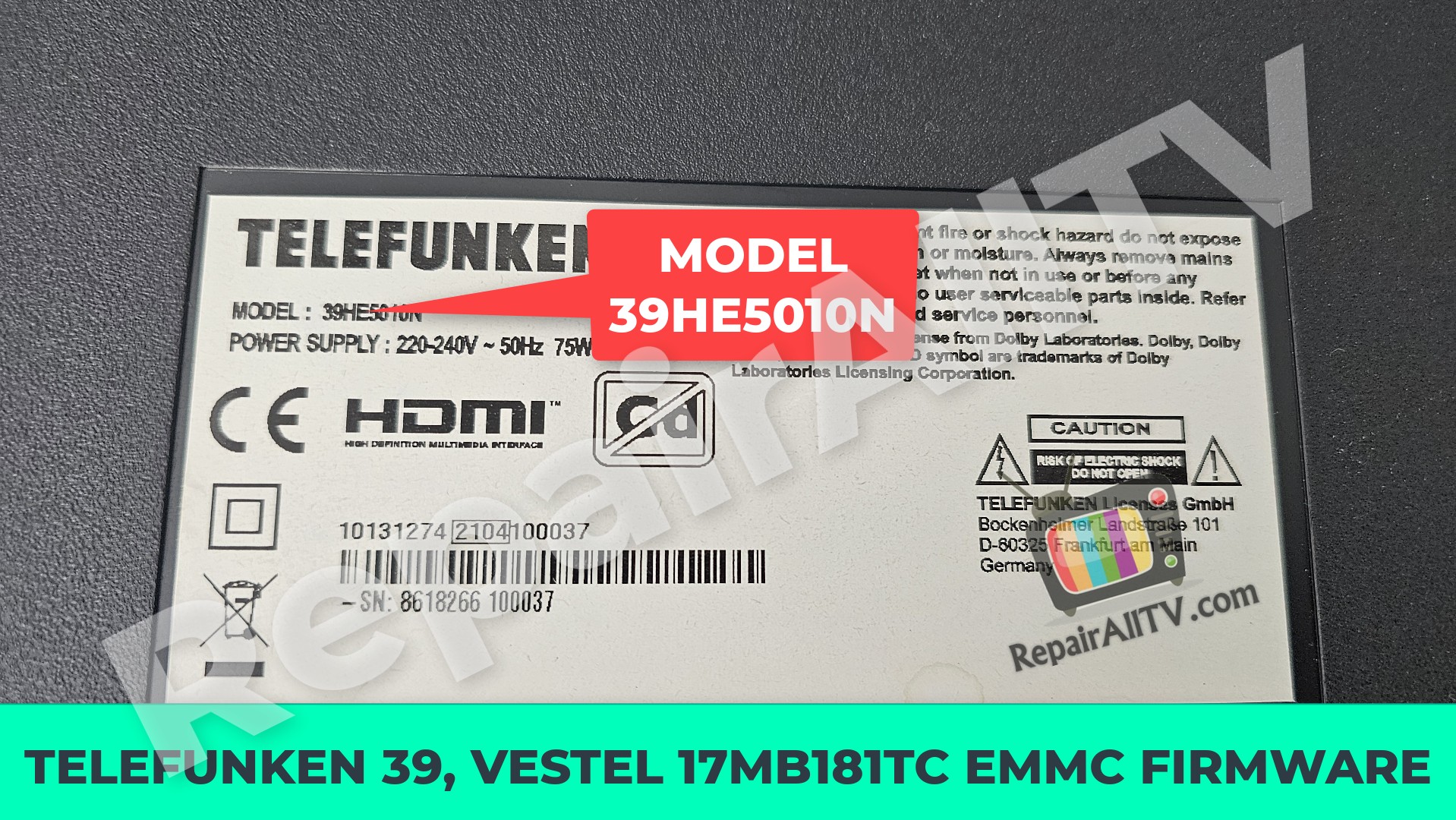

TELEFUNKEN MODEL 39HE5010N
MAIN BOARD 17MB181TC VESTEL
EMMC KLM4G1FETE-B041 Size: 3.64 GB
PANEL VES385WNDP-2D-N01
READ EMMC PROGRAMMER TNM5000 RT809H AND XGecu T56 UFI
