VIVAX CV6681H-A42 EMMC FIRMWARE

vivax tv-40le113t2s2sm cv6681h-a42 emmc VIVAX TV-40LE113T2S2SM CV6681H-A42 EMMC

VIVAX MODEL TV-40LE113T2S2SM

BOARD TV

BOARD CV6681H-A42

KLM8G1GETF-B041 EMMC FIRMWARE BOARD CV6681H-A42

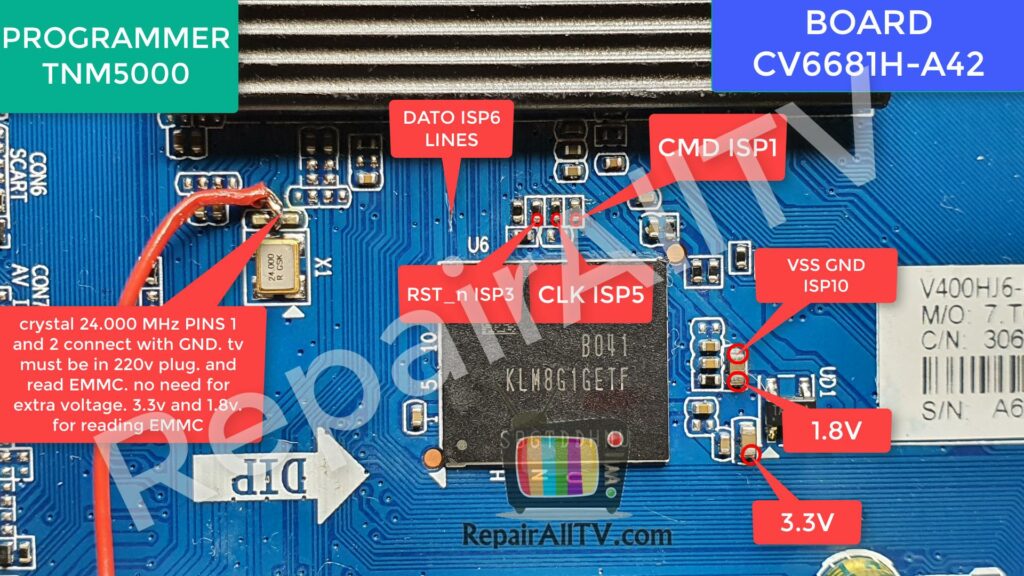

PROGRAMMER TNM 5000 READ EMMC KLM8G1GETF-B041(ISP)

TNM5000 ISP READ EMMC

ISP INFO READ EMMC PROGRAMMER TNM5000 READ EMMC BOARD CV6681H-A42

Programmer ISP Cable EMMC pin
ISP PIN 1 CMD
ISP PIN 3 RST-n(Reset) (mandatory)
ISP PIN 5 CLK (Clock)
ISP PIN 6 DAT0
ISP PIN 8, 10 VSS (GND)
Vcc of Chip Must be ON. Reset is needed only when circuit reset is not working.

Note 1: After Selecting EMMC, programmer will be switched to Report view.
because EMMC files are too large and can’t be viewed by hex editor.
you can switch back to hex editor by unmarking the report button.

Note 2: Load & Save buttons has no use in EMMC nand. you must select filename
after pressing read or program buttons. File will be saved automatically with
Boot 1, Boot 2, RPMB, EXT_CSD extensions for different parts of the chip.

Note 3: After pressing read or Program, EMMC size and type will automatically
be Detected

Note 4 : Use Config Window for selecting Different Parts of the chip for read and write.
Also, chip Size and name is read from the chip and can be viewed in this window.

Note 5: Erase is for total chip erase. before Programming Each part, Programmer
will erase it automatically, so no need for chip erase before program.

Note 6: Only First 192 byte of EXT_CSD is writable by users and Some of these bytes
are read-only and some parts are one-time programable so if you write over these areas,
you get Write error.

Note 7: in most cases, Reset Pin is not necessory, Power on/off the device for reset

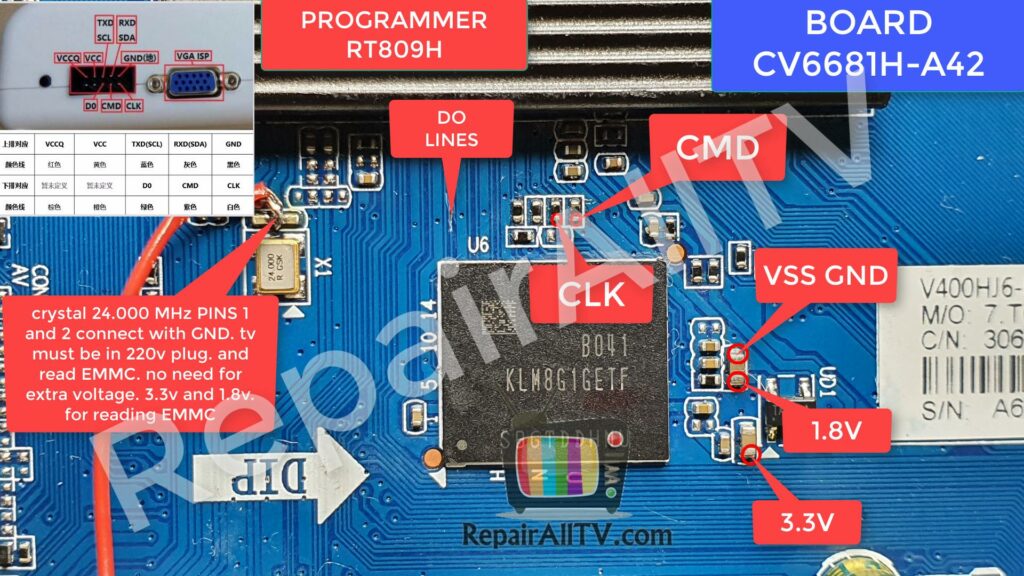

PROGRAMMER READ EMMC RT809H

MODEL PANEL CX400DLEDM

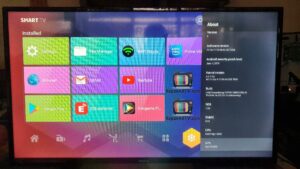

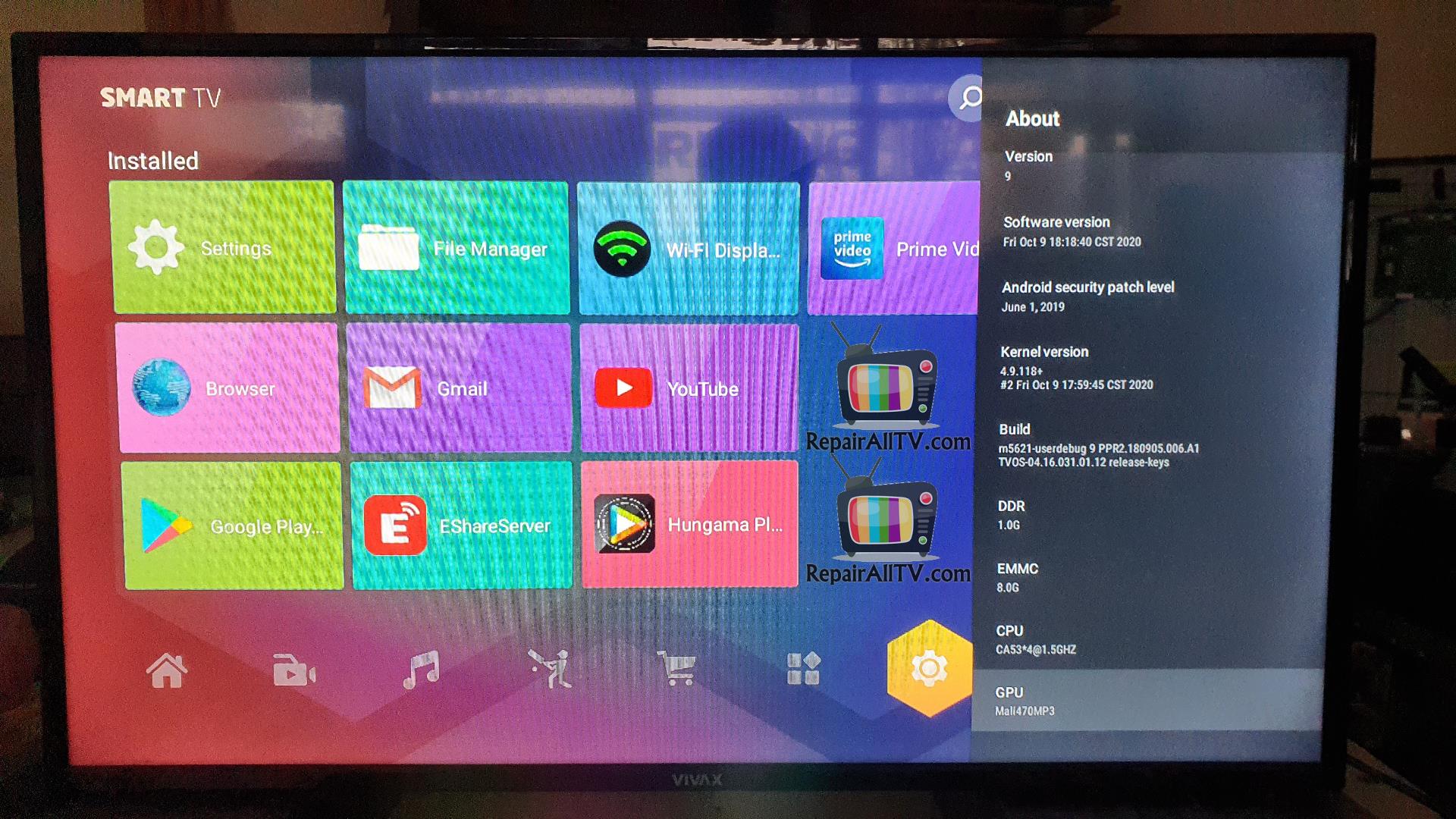

info tv version image

My channel YouTube RepairAllTV

DUMP EMMC NAND EEPROM
Important notes: The files we make available on this website are backup copies of device firmware that were fully operational at the time of copying.
We always try to refer to the technical data of the device, however we inform you that there may be some incompatibility with your device, even if it is the same model.
Firmware is generally fully compatible, but users should be aware that there is a possibility of incompatibility.

You need an programmer to write this dump to the chip.
Please remember to back up your firmware to restore in case of any errors or incompatibilities.

VIVAX TV-40LE113T2S2SM CV6681H-A42 EMMC

.

eMMC VIVAX 32 part1

1 file(s) 1.12 GB
