JVC KD-R474 CHECK WIRING THEN PWR ON MISWIRING Repair

repair radio. the problem. CHECK WIRING THEN PWR ON MISWIRING KD R474 1
Share post with Friends

jvc kd-r474 check wiring then pwr on miswiring repair

radio model KD-R474

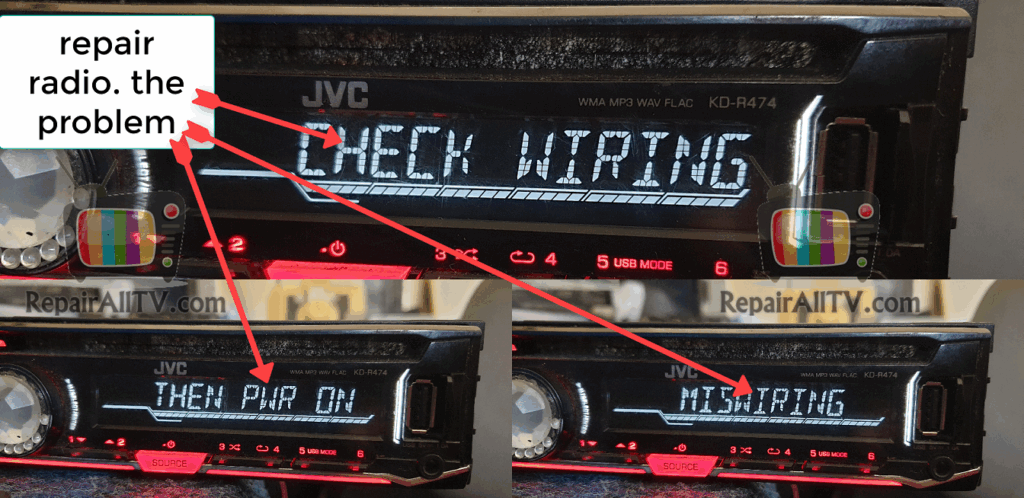

repair radio. the problem. CHECK WIRING THEN PWR ON MISWIRING

repair radio. the problem. CHECK WIRING THEN PWR ON MISWIRING

JVC RADIO

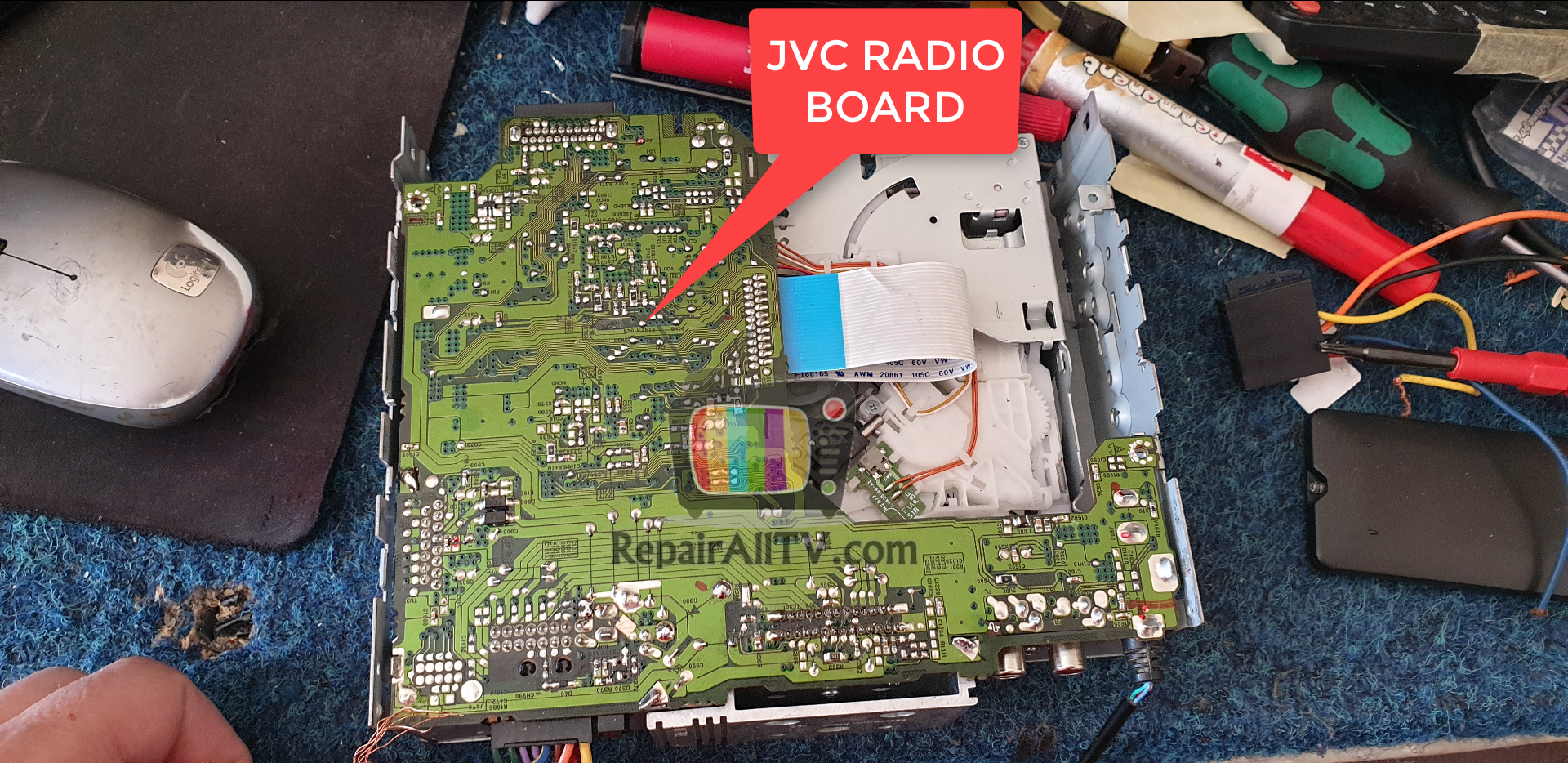

JVC RADIO board

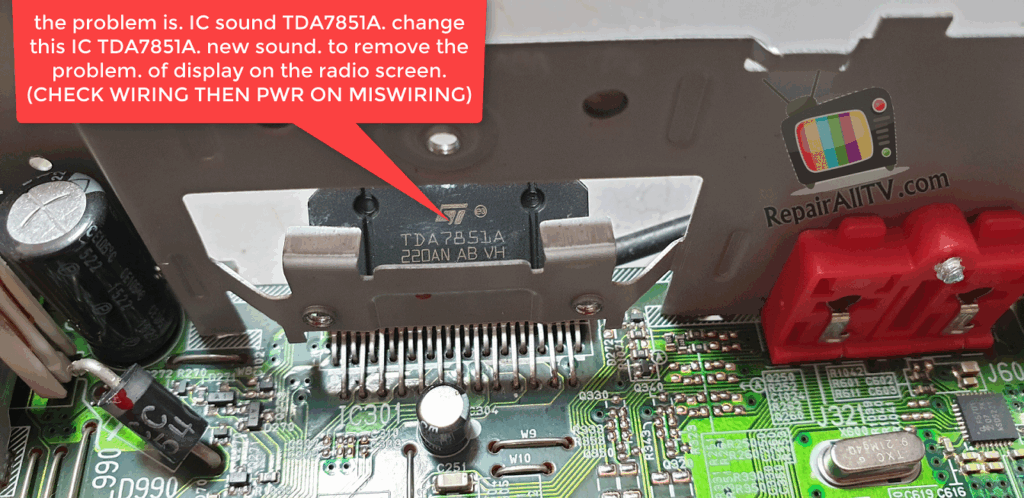

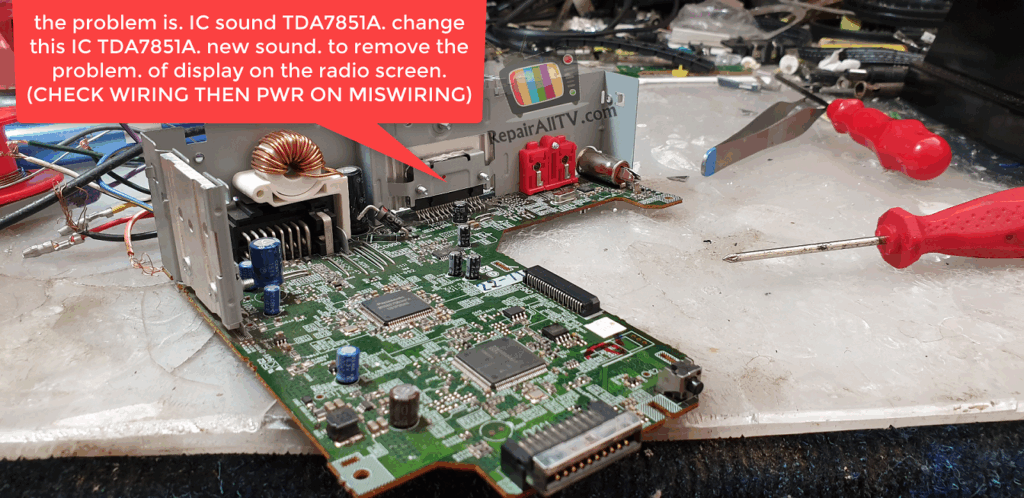

the problem is. IC sound TDA7851A

the problem is. IC sound TDA7851A

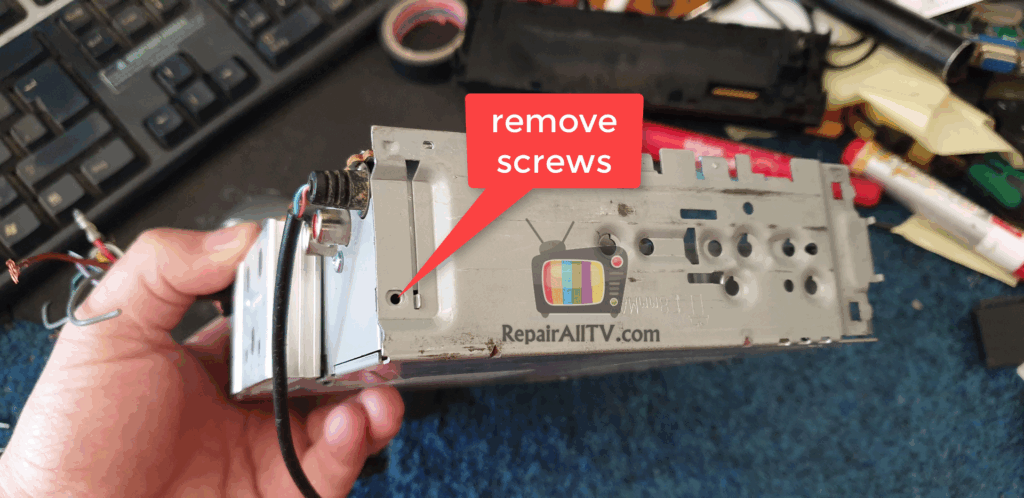

remove screws

remove screws

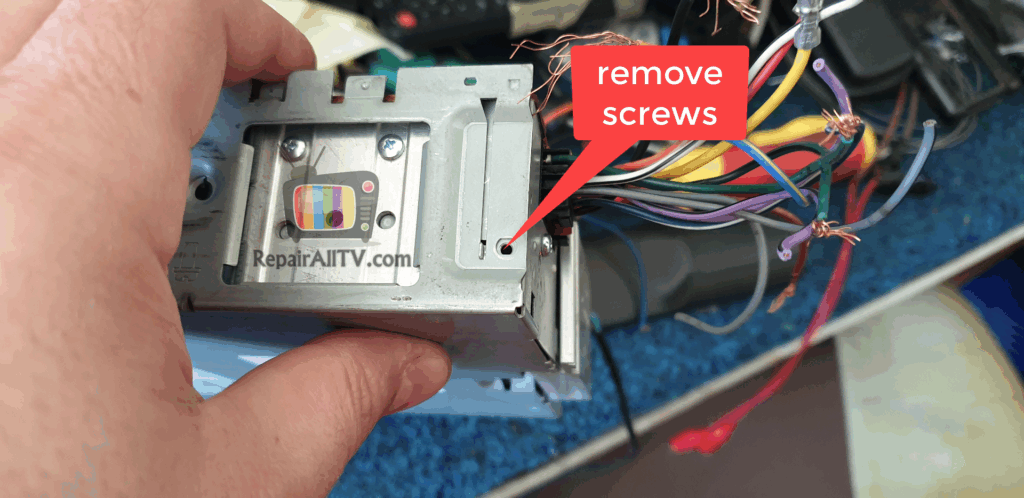

remove screws.2

remove screws.

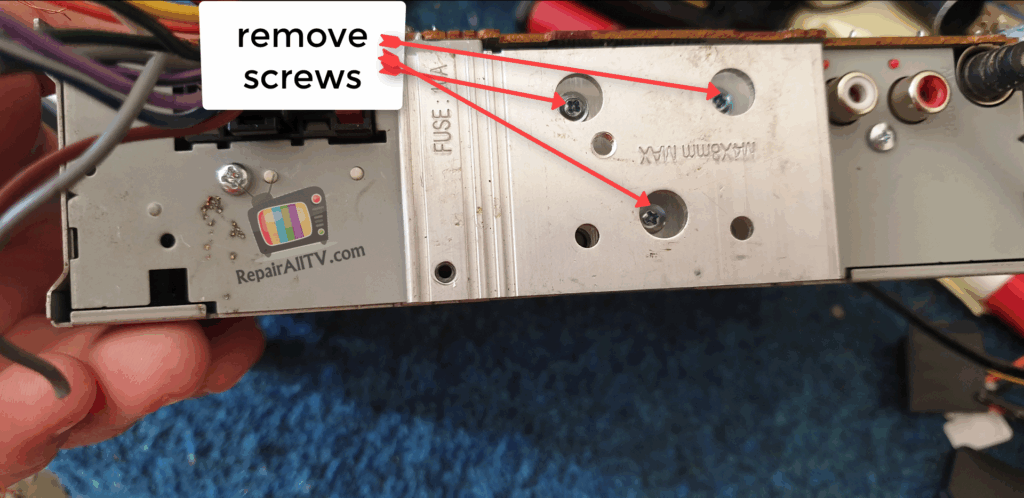

remove3

remove screws 3

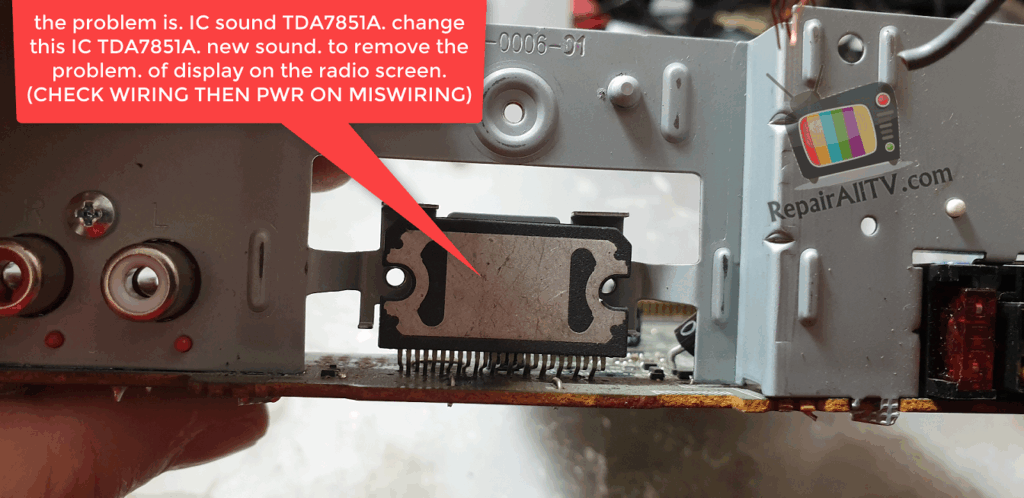

the problem is. IC sound TDA7851A.3png

the problem is. IC sound TDA7851A

the problem is. IC sound TDA7851A.2png

the problem is. IC sound TDA7851A.

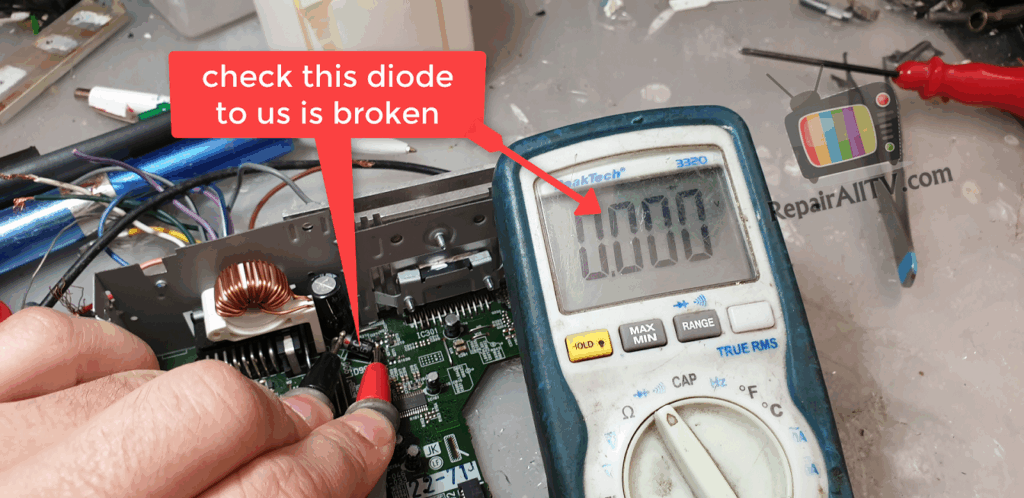

check this diode to us is broken

check this diode to us is broken

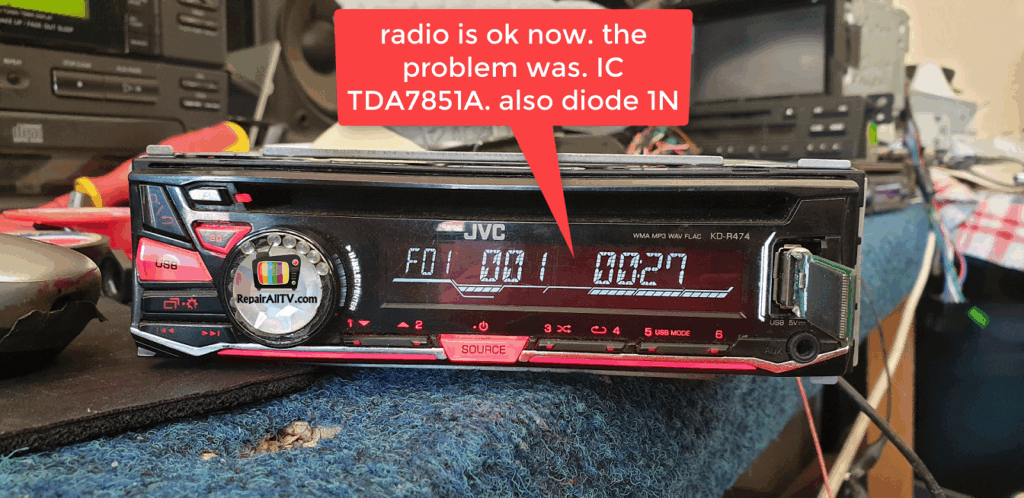

radio is ok now. the problem was. IC TDA7851A. also diode 1N

radio is ok now. the problem was. IC TDA7851A. also diode 1N
