sunny sn43dil540-0276 tpd.rt2864.pb802 (t) 14AT542 emmc webos SUNNY TPD.RT2864.PB802 (T) 14AT542 EMMC Webos
TV SUNNY MODEL SN43DIL540-0276

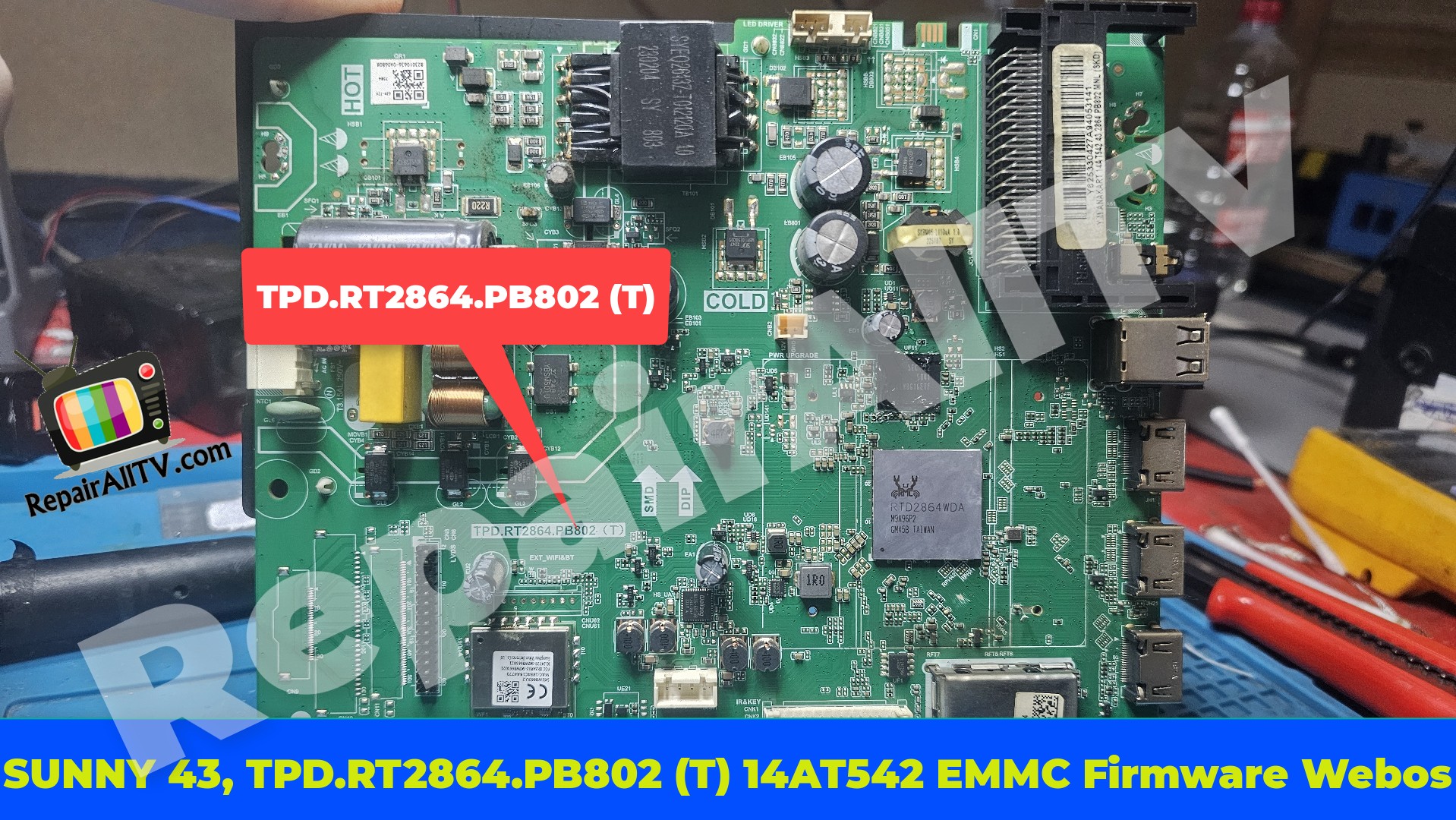

tpd.rt2864.pb802 (t)

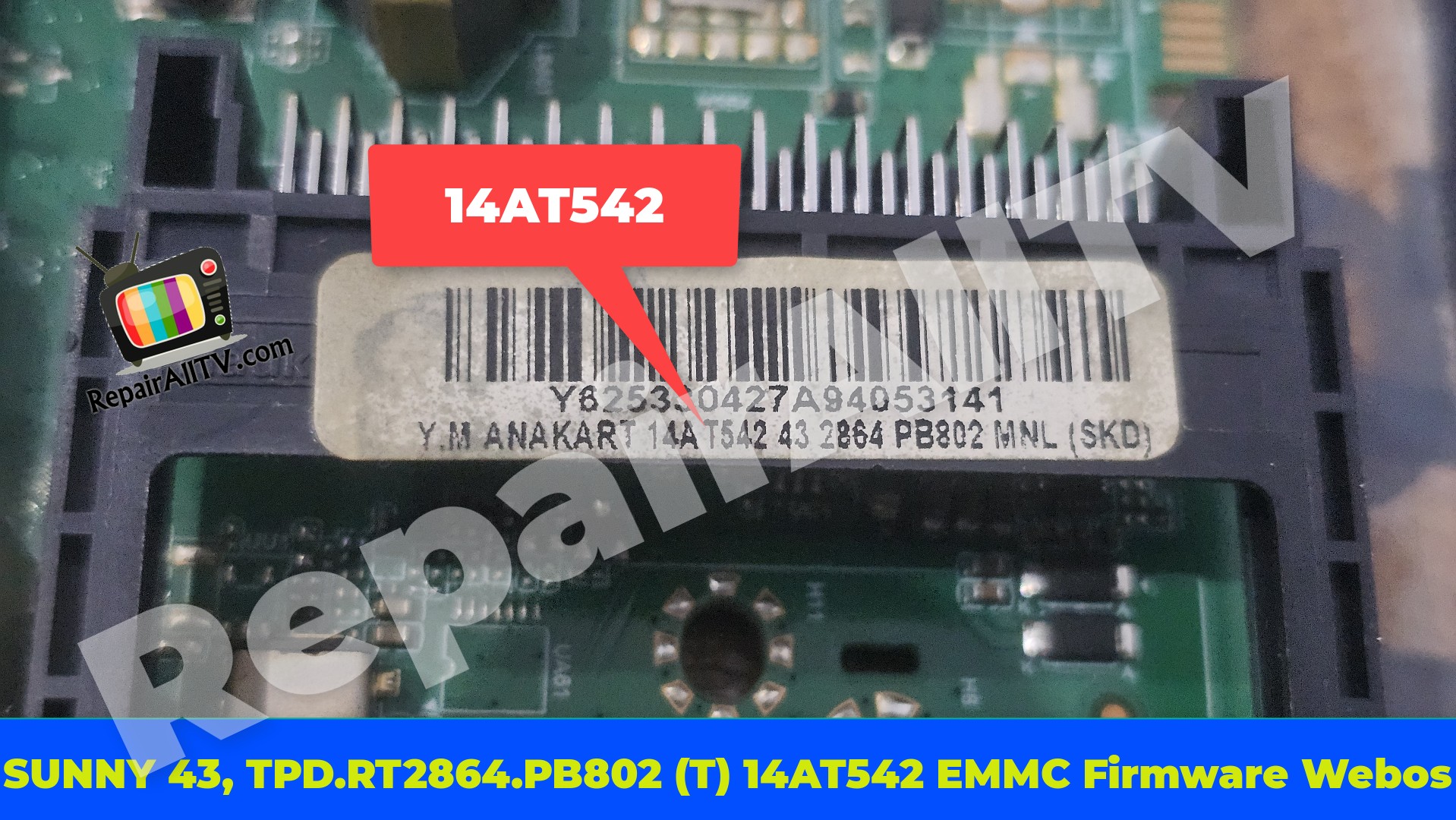

14at542

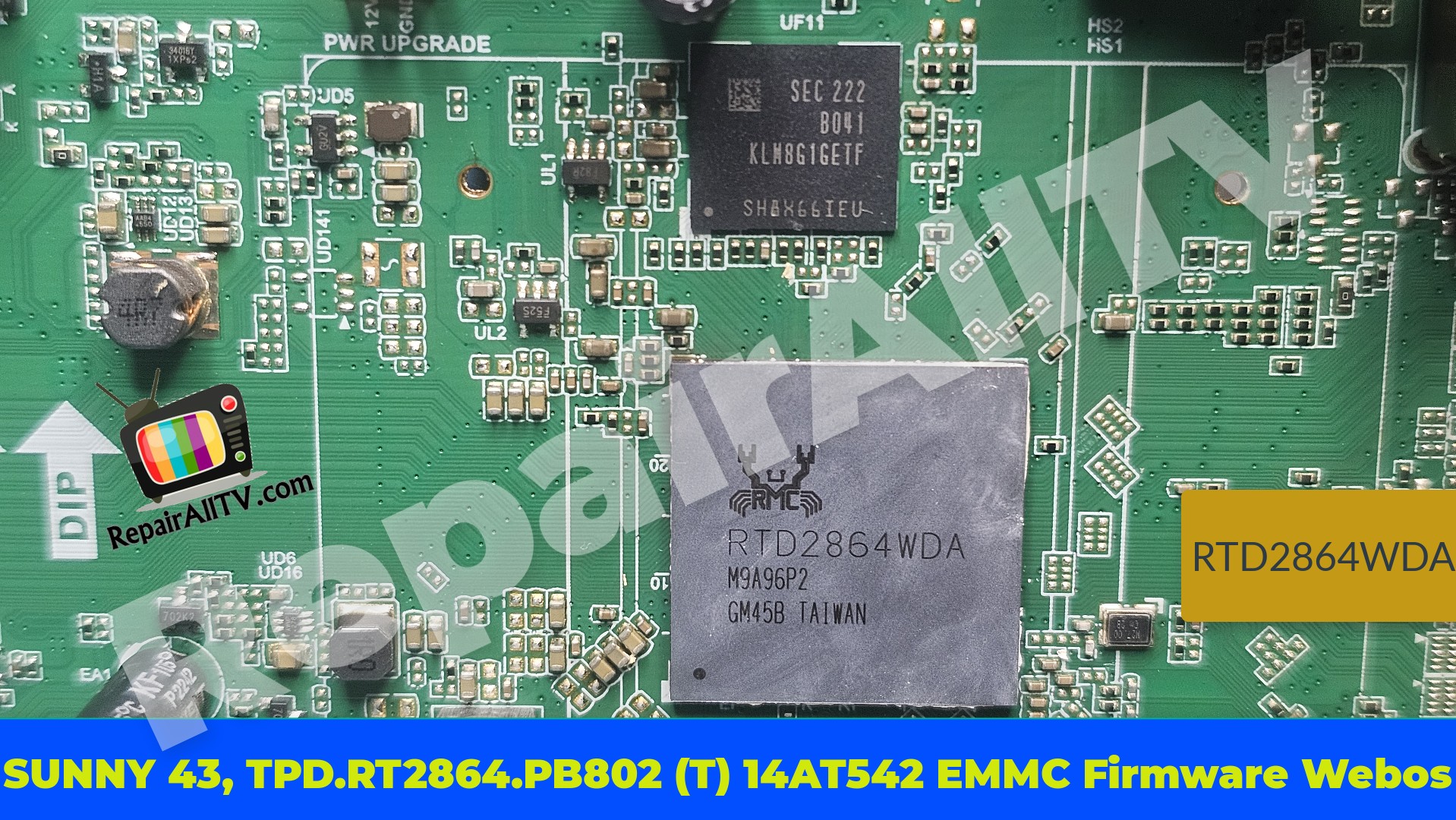

RTD2864WDA
Programmer ISP Cable EMMC pin
ISP PIN 1 CMD
ISP PIN 3 RST-n(Reset) (mandatory)
ISP PIN 5 CLK (Clock)
ISP PIN 6 DAT0
ISP PIN 8, 10 VSS (GND)
Vcc of Chip Must be ON. Reset is needed only when circuit reset is not working.
PROGRAMMER TNM5000 ISP EMMC TPD.RT2864.PB802 (T)
to see EMMC pinout photo as well as to download EMMC BIN Firmware. you must Subscription
PROGRAMMER RT809H XGeeu T56 ISP EMMC TPD.RT2864.PB802 (T)

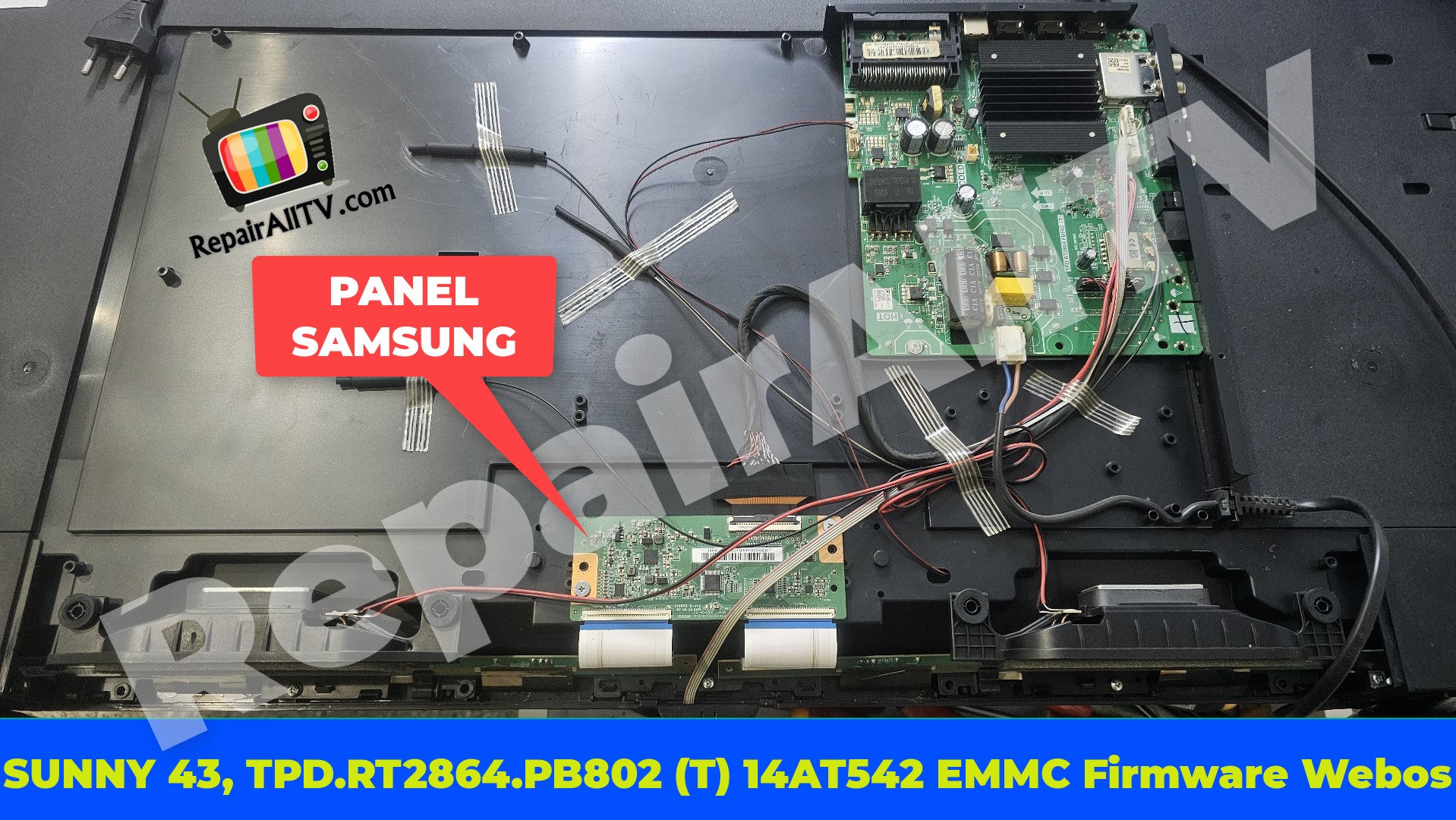

PANEL SAMSUNG
My channel YouTube video RepairAllTV
DUMP EMMC NAND EEPROM
Important notes: The files we make available on this website are backup copies of device firmware that were fully operational at the time of copying.
We always try to refer to the technical data of the device, however we inform you that there may be some incompatibility with your device, even if it is the same model.
Firmware is generally fully compatible, but users should be aware that there is a possibility of incompatibility.
You need an programmer to write this dump to the chip.
Please remember to back up your firmware to restore in case of any errors or incompatibilities.
SUNNY TPD.RT2864.PB802 (T) 14AT542 EMMC Webos
SUNNY MODEL SN43DIL540-0276
BOARD TPD.RT2864.PB802 (T)
PANEL SAMSUNG
EMMC KLM8G1GETF-B041 Size: 7.28 GB
PROGRAMMER TNM5000/RT809H, AND XGeeu T56 UFPI
download only eeprom. dump. nand. flash. EMMC. Here Subscription
Subscription more here (Select subscription plan)
