tcl 43pf650 40-mt26t2-maa2hg emmc firmware TCL 43PF650 40-MT26T2-MAA2HG EMMC FIRMWARE

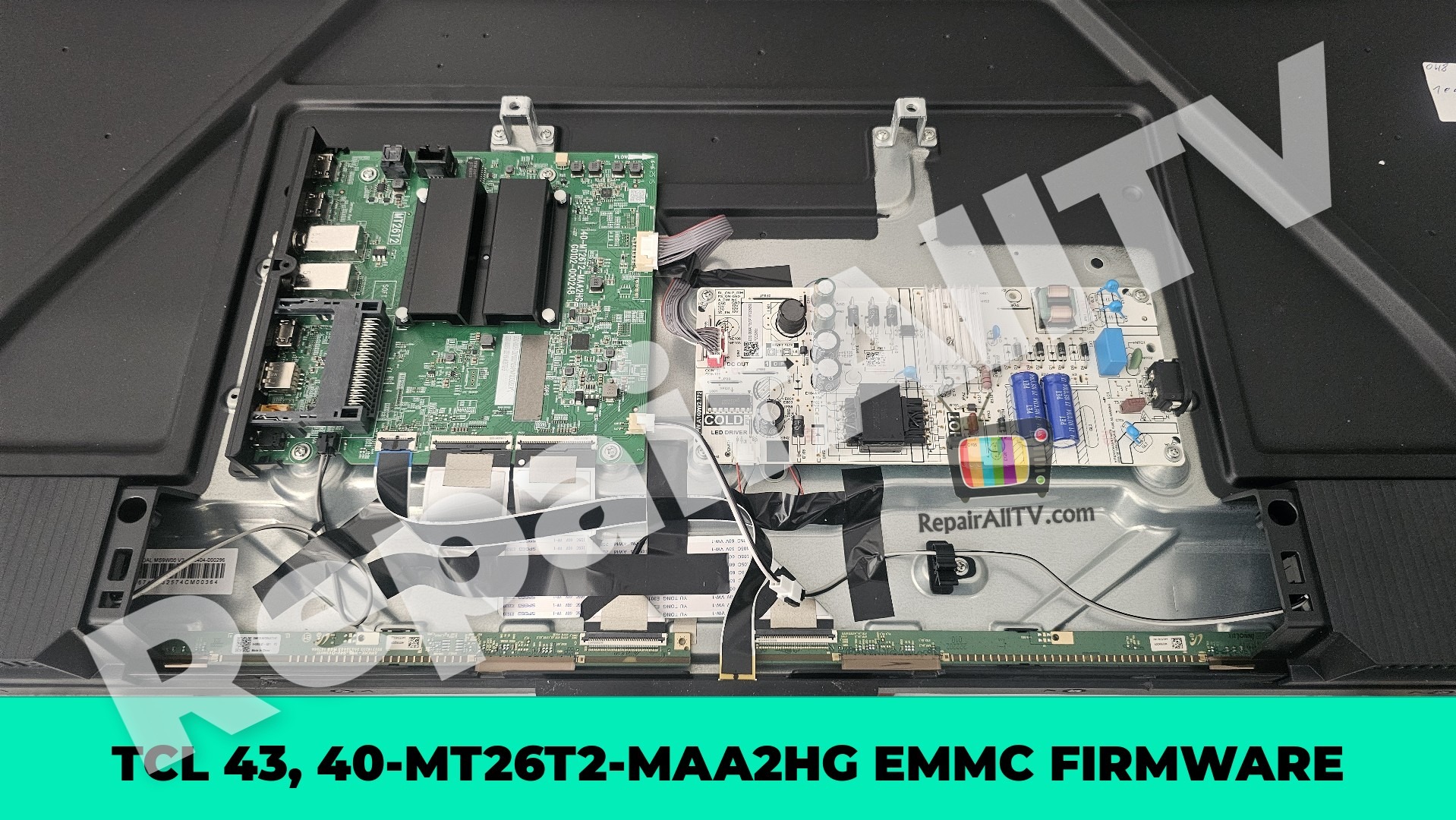

TCL main board power board

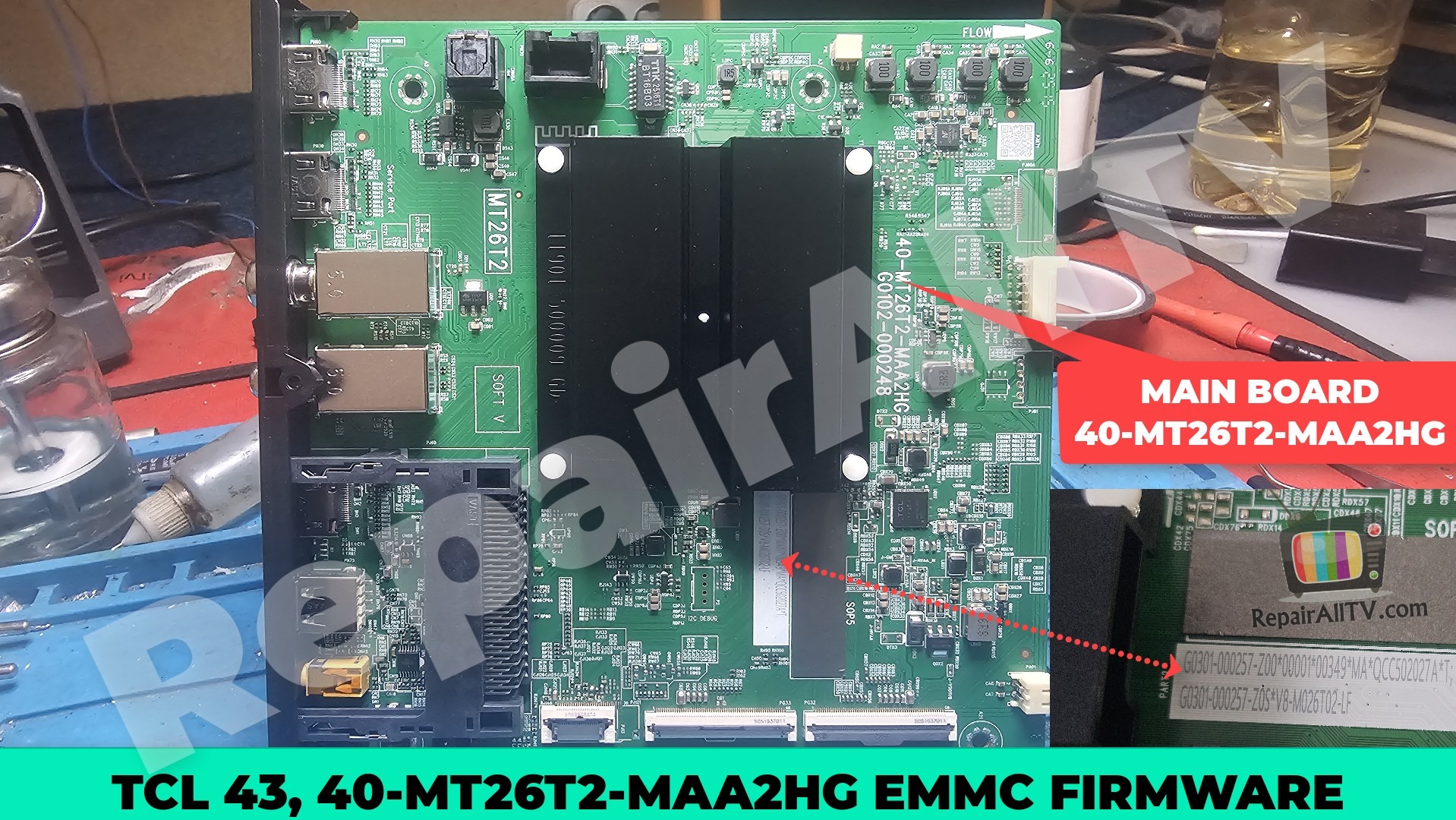

MAIN BOARD 40-MT26T2-MAA2HG
EMMC PINOUT 40-MT26T2-MAA2HG
To view the EMMC pinout picture, as well as to download the EMMC BIN Firmware, you must have a. subscription package.
Programmer ISP Cable EMMC pin
ISP PIN 1 CMD
ISP PIN 3 RST-n(Reset) (mandatory)
ISP PIN 5 CLK (Clock)
ISP PIN 6 DAT0
ISP PIN 8, 10 VSS (GND)
Vcc of Chip Must be ON. Reset is needed only when circuit reset is not working.
PROGRAMMER TNM5000 ISP EMMC 40-MT26T2-MAA2HG
PROGRAMMER RT809H XGeeu T56 ISP EMMC 40-MT26T2-MAA2HG

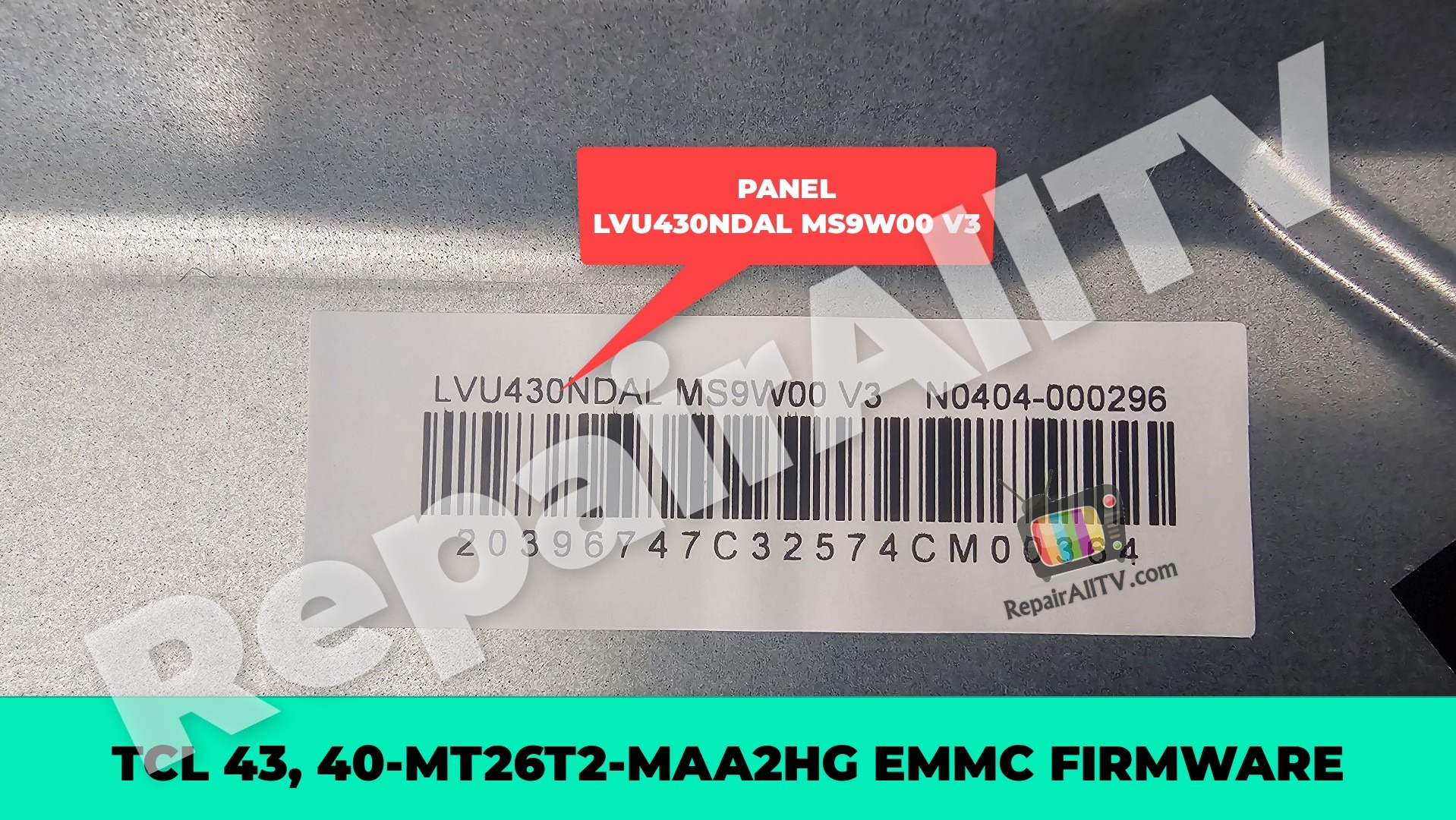

PANEL LVU430NDAL MS9W00 V3
My channel YouTube video RepairAllTV
DUMP EMMC NAND EEPROM
Important notes: The files we make available on this website are backup copies of device firmware that were fully operational at the time of copying.
We always try to refer to the technical data of the device, however we inform you that there may be some incompatibility with your device, even if it is the same model.
Firmware is generally fully compatible, but users should be aware that there is a possibility of incompatibility.
You need an programmer to write this dump to the chip.
Please remember to back up your firmware to restore in case of any errors or incompatibilities.
TCL 43PF650 40-MT26T2-MAA2HG EMMC FIRMWARE
TCL MODEL 43PF650
MAIN BOARD 40-MT26T2-MAA2HG
EMMC KLMAG1JETD-B041 Size: 14.5 GB
PANEL LVU430NDAL MS9W00 V3
READ EMMC PROGRAMMER TNM5000/RT809H AND XGeeu T56 UFPI
attention. first unzip (part 2.) then part 1
download only eeprom or dump or nand flash emmc. here Subscription
Subscription more here (Select subscription plan)
