TOSHIBA 55M7463D PE1168 V28A001525A1 EMMC DUMP

July 26, 2021

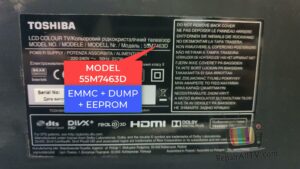

TOSHIBA 55M7463D
Share post with Friends

toshiba 55m7463d pe1168 v28a001525a1 emmc dump eeprom

main board

main board

MAINBOARD PE1168 V28A001525A1

MAINBOARD PE1168 V28A001525A1

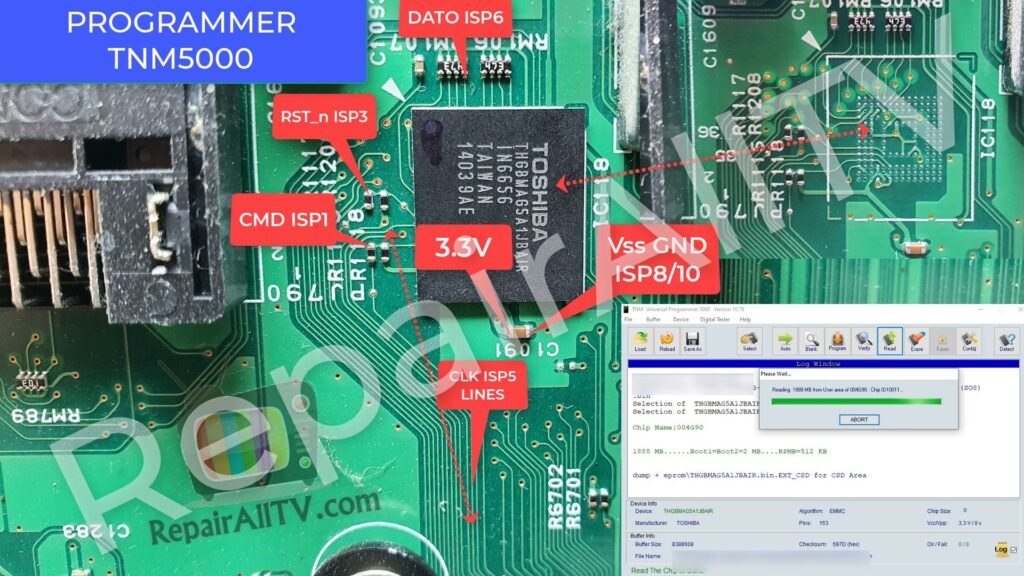

PROGRAMMER TNM5000 ISP INFO EMMC READ

PROGRAMMER TNM5000 ISP INFO EMMC READ

THGBMAG5A1JBAIR EMMC Firmware

ISP PIN READ EMMC TNM 5000

ISP INFO READ EMMC PROGRAMMER TNM5000 READ EMMC MAINBOARD PE1168 V28A001525A1

Programmer ISP Cable EMMC pin
ISP PIN 1 CMD
ISP PIN 3 RST-n(Reset) (mandatory)
ISP PIN 5 CLK (Clock)
ISP PIN 6 DAT0
ISP PIN 8, 10 VSS (GND)
Vcc of Chip Must be ON. Reset is needed only when circuit reset is not working.

Note 1: After Selecting EMMC, programmer will be switched to Report view.
because EMMC files are too large and can’t be viewed by hex editor.
you can switch back to hex editor by unmarking the report button
.

Note 2: Load & Save buttons has no use in EMMC nand. you must select filename
after pressing read or program buttons. File will be saved automatically with
Boot 1, Boot 2, RPMB, EXT_CSD extensions for different parts of the chip.

Note 3: After pressing read or Program, EMMC size and type will automatically
be Detected

Note 4 : Use Config Window for selecting Different Parts of the chip for read and write.
Also, chip Size and name is read from the chip and can be viewed in this window.

Note 5: Erase is for total chip erase. before Programming Each part, Programmer
will erase it automatically, so no need for chip erase before program.




Note 6: Only First 192 byte of EXT_CSD is writable by users and Some of these bytes
are read-only and some parts are one-time programable so if you write over these areas,
you get Write error.

Note 7: in most cases, Reset Pin is not necessory, Power on/off the device for reset

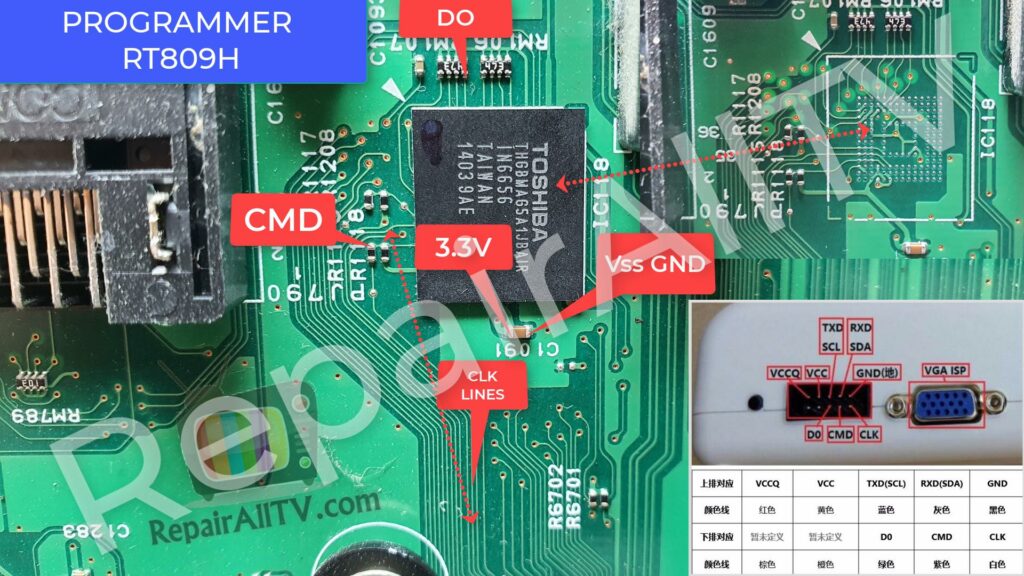

PROGRAMMER RT809H INFO ISP READ EMMC

PROGRAMMER RT809H INFO ISP READ EMMC

THGBMAG5A1JBAIR EMMC Firmware

PANEL 96.550S03.001 55M7463DG

PANEL 96.550S03.001 55M7463DG

TV TOSHIBA

TV TOSHIBA

TV OK

TV OK
